JUKI Fast Smart Modular Mounter RS-1R placement pick and palce machine

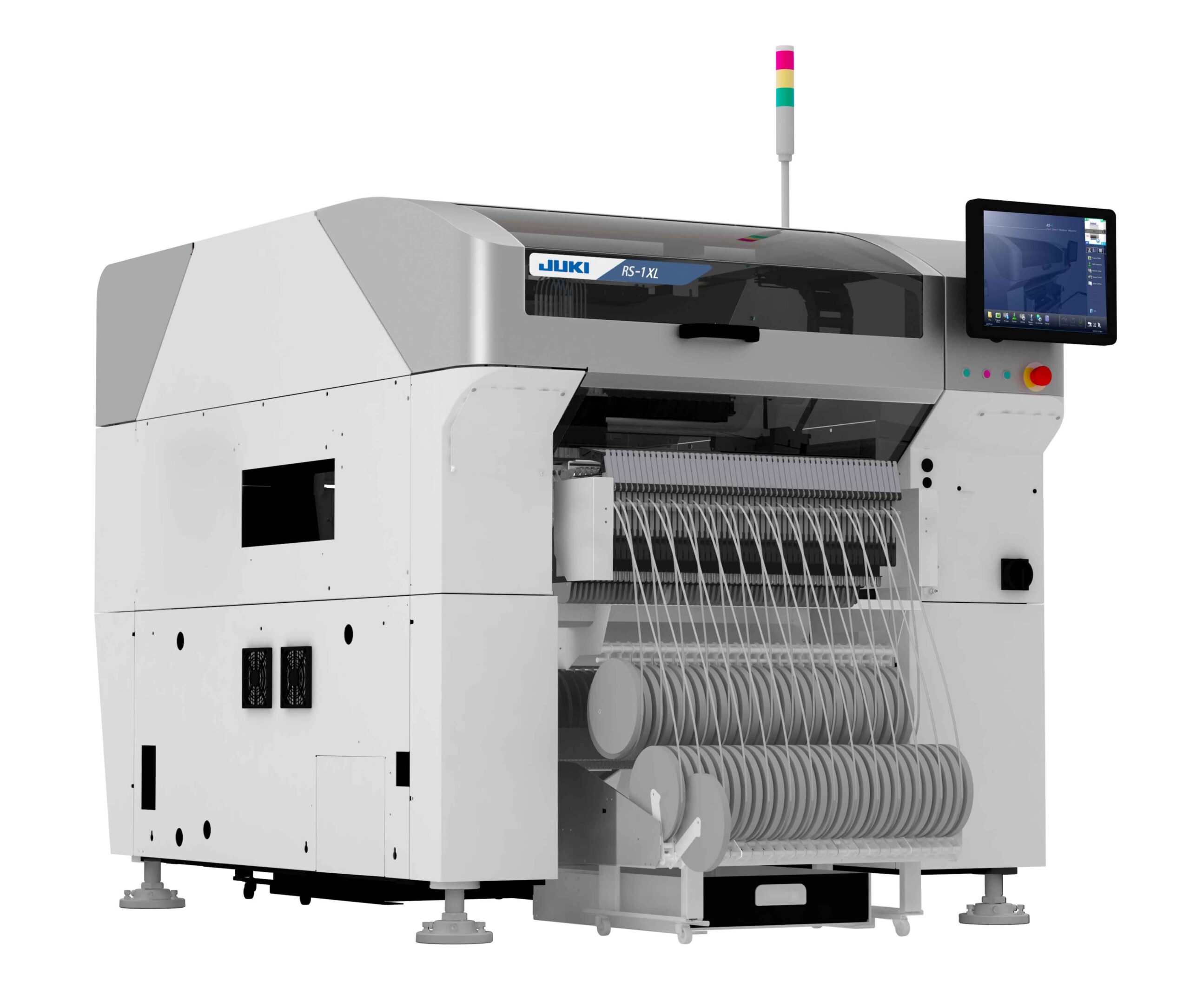

JUKI Fast Smart Modular Mounter RS-1XL placement pick and palce machine
Features
- Class leading speed, up to 42,000 cph
- 0201* ~ 74mm×74mm / 50mm×150mm
- Wide component range
- Optimum line balance and highest throughput
- Newly developed “Takumi Head” with changing recognition sensor height
- JUKI’s laser centering technology is fast, accurate and reliable for a wide range of parts.
JUKI High-Speed Chip Shooter KE-3010A placement pick and palce machine
Features
Continued Evolution of the KE Series
| Chip | 23,500CPH chip (Laser centering / Optimum) 18,500CPH (Laser centering / IPC9850) |
|---|---|
| IC | 9,000CPH (Vision centering / MNVC option) |
- From 0402(01005) to 33.5mm square components
- One multi-nozzle laser head (6 nozzles)
- The use of electronic double tape feeders enables mounting of a maximum of 160 component types.
- High-speed, on-the-fly vision centering (When using both high-resolution camera and MNVC. (option))
- Longer sized PWB in X axis (option)

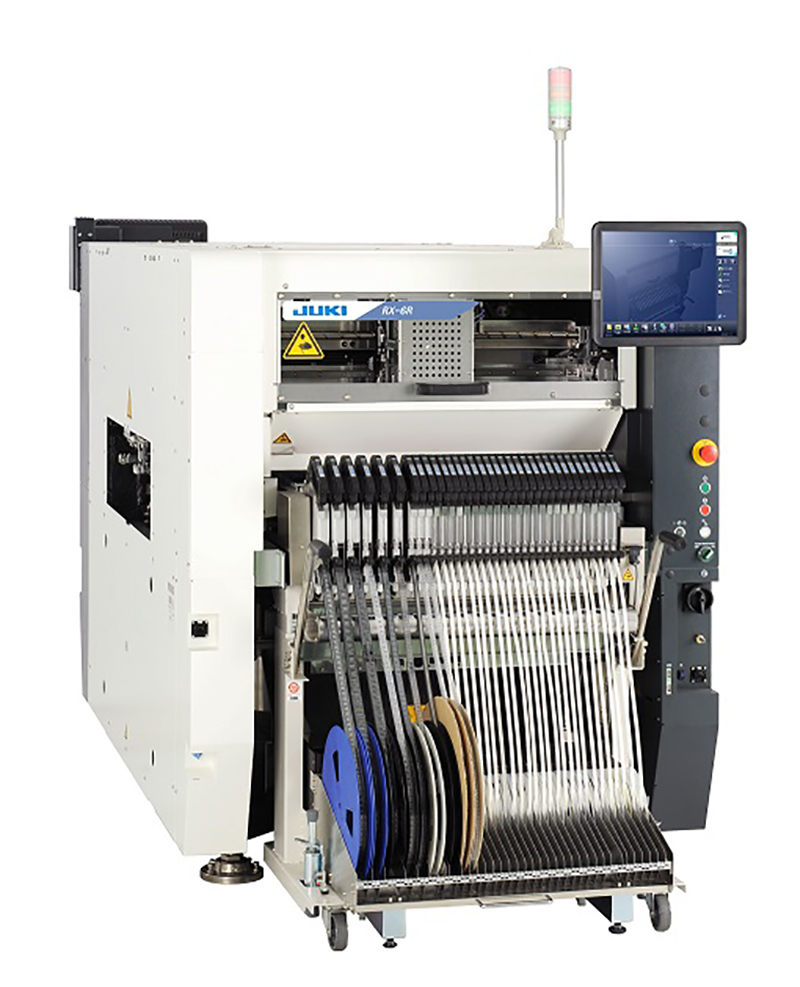

JUKI High-Speed Compact Modular Mounter RX-6R/RX-6B placement pick and palce machine
Features
| Placement speed | Chip : 52,000CPH*2 IC : 14,000CPH*3 |
|---|---|
| Component size | 0402mm(01005 inch) ~ 50mm×50mm*4 0402mm(01005 inch) ~ 100mm×100mm / 50×180mm*5 |
| Board size | Single lane conveyor: 50×50 ~ 610×590 / 905×590(2times clamping) Dual lane conveyor*6: 50×50 ~ 360×250 / 360×450(single lane conveyor specification mode) |
| Head unit | 6×6nozzle head 6×3nozzle head *6 |
- This is applicable to dual-lane production.*6
- Compact footprint : the width is just 1.25m
- Equipped with standard Placement Monitor check function.*1
- Replaceable head allow you to configure a production line best suited to the current repirments.*6
- High-speed component placement using high-speed non-stop vision recognition.*3
- Wide range of components and boards: tall components, large components and large boards.
- Brand new Matrix Tray Sever TR8S improves the component capability and productivity.

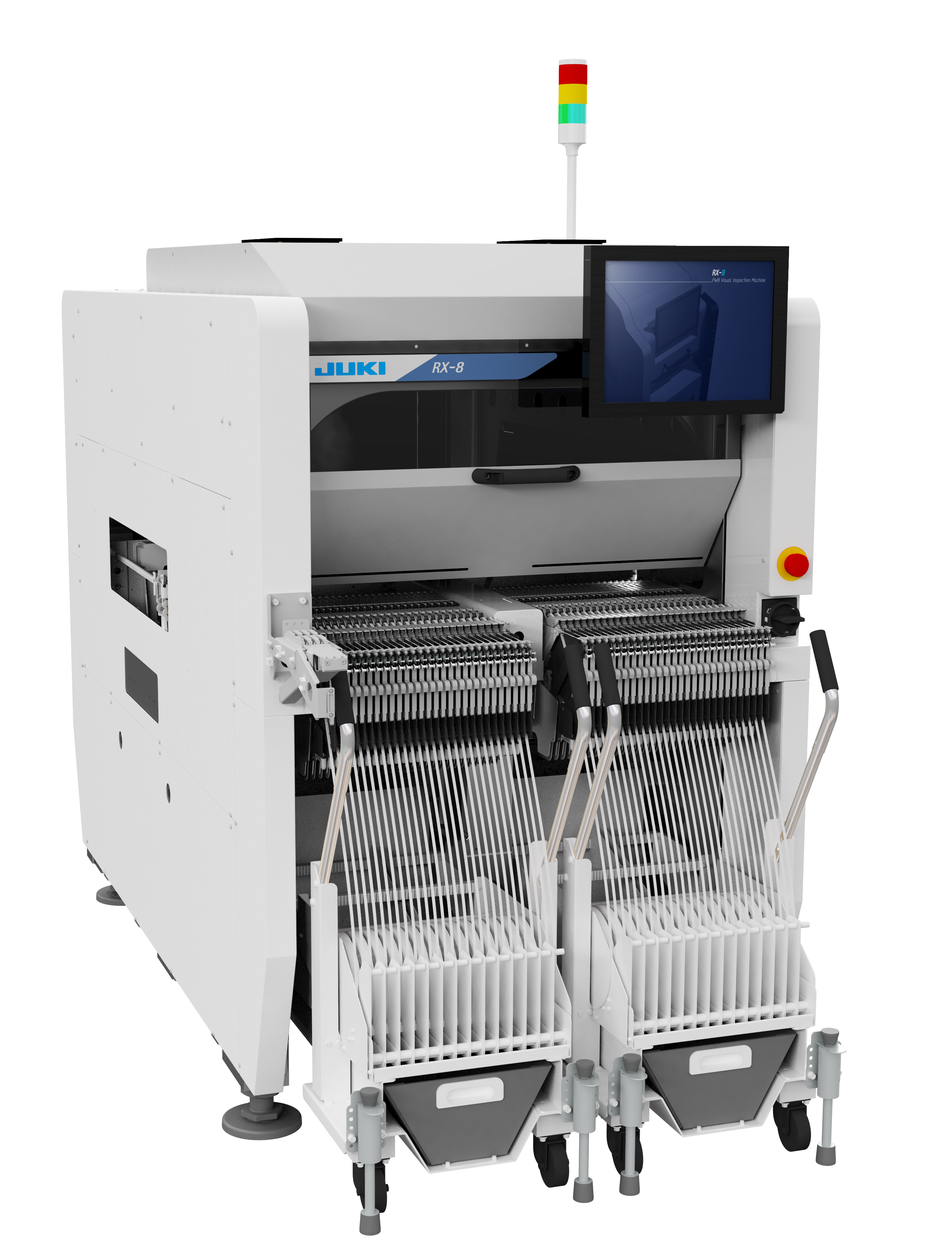

JUKI High-Speed Compact Modular Mounter RX-8 placement pick and palce machine
Features
- High-speed placements of up to 100,000 CPH.*¹
- Best-in-class placement rate per square meter(sq ft).*²
- Integrates seamlessly with the production enviroment
- Trace Monitor tracks quality throughout production process
- Low impact placement for flexible circuits
- The P20 high-precision planet head is ideal for high speed pocking and placing from a single reel.
- State-of-the-art centering and inspection vision system
- New high accuracy camera for inspection and centering
- *¹ Optimum conditions *² Market survey data
JUKI High-Speed Flexible Mounter KE-3020VA placement pick and palce machine
Features
Continued Evolution of the KE Series
| Chip | 20,900CPH chip (Laser centering / Optimum) 17,100CPH chip (Laser centering / IPC9850) |
|---|---|
| IC | 9,470CPH (Vision centering / MNVC) |
- From 0402(01005) to 74mm square components or 50×150mm
- KE-3020VA One multi-nozzle laser head (6 nozzles) plus one IC head with CDS sensor (1 nozzle)
- The use of electronic double tape feeders enables mounting of a maximum of 160 component types.
- MNVC is standard
- High-speed, on-the-fly vision centering (When using both high-resolution camera and MNVC)
- High speed feeding of tray components (Option)
- Longer sized PWB in X axis(option)
- PoP placement(option)

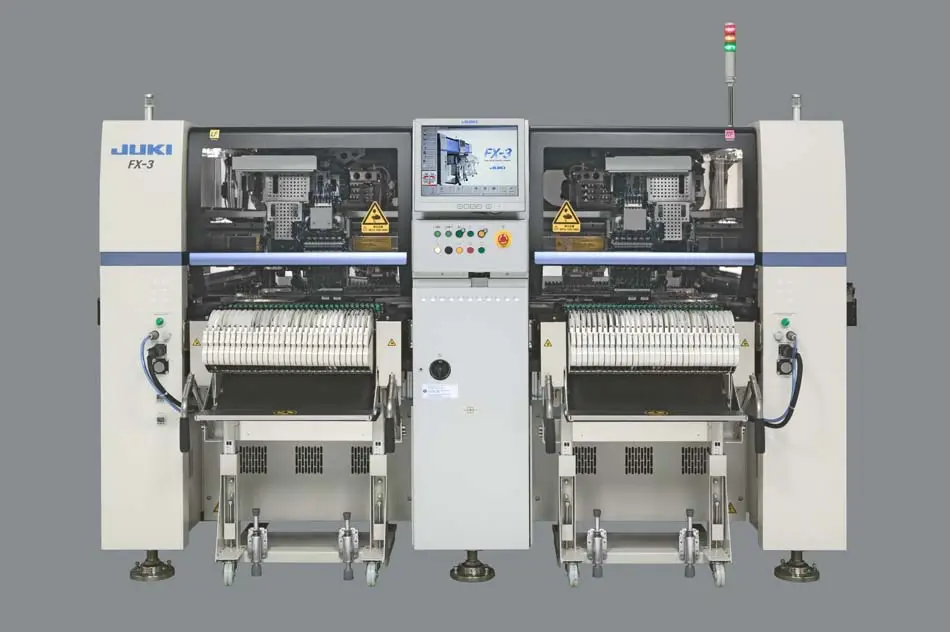

JUKI High-Speed Modular Mounter FX-3RA placement pick and palce machine
Features
| Chip | 90,000CPH (0.040Sec. / chip / Optimum） 66,000CPH (IPC9850) |
|---|
- 0402mm(01005 inch) ~ 33.5mm×33.5mm
- Laser recognition : ±0.05mm(±3σ)
- On-the-fly centering using integrated laser
- 2 stations, 4 gantries, 4 placement heads, 24 nozzles
- Linear servo motor XY drive with full closed-loop control
- Holds up to 240 components
- Electrical or mechanical feeder trolley

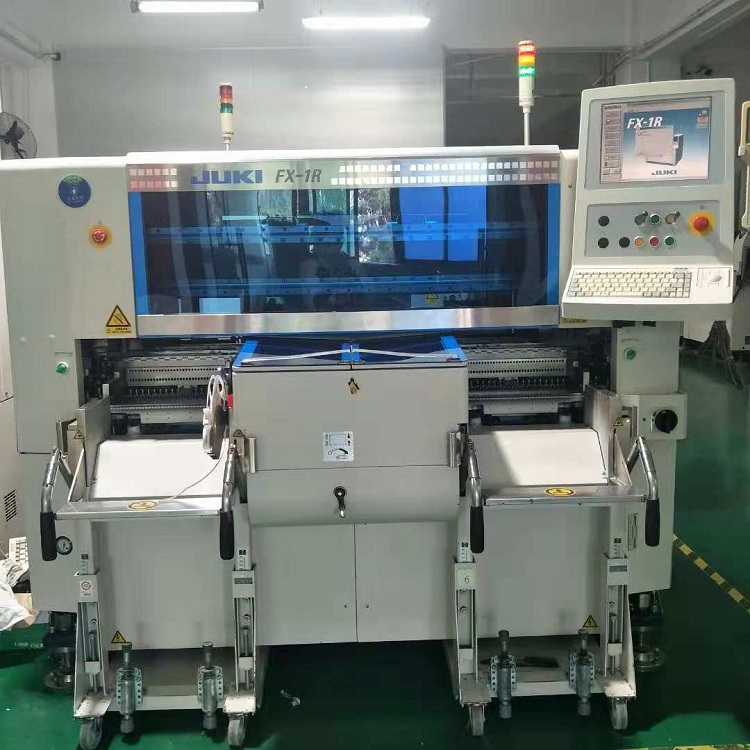

JUKI high-speed placement machine FX-1R placement pick and palce machine Mounter

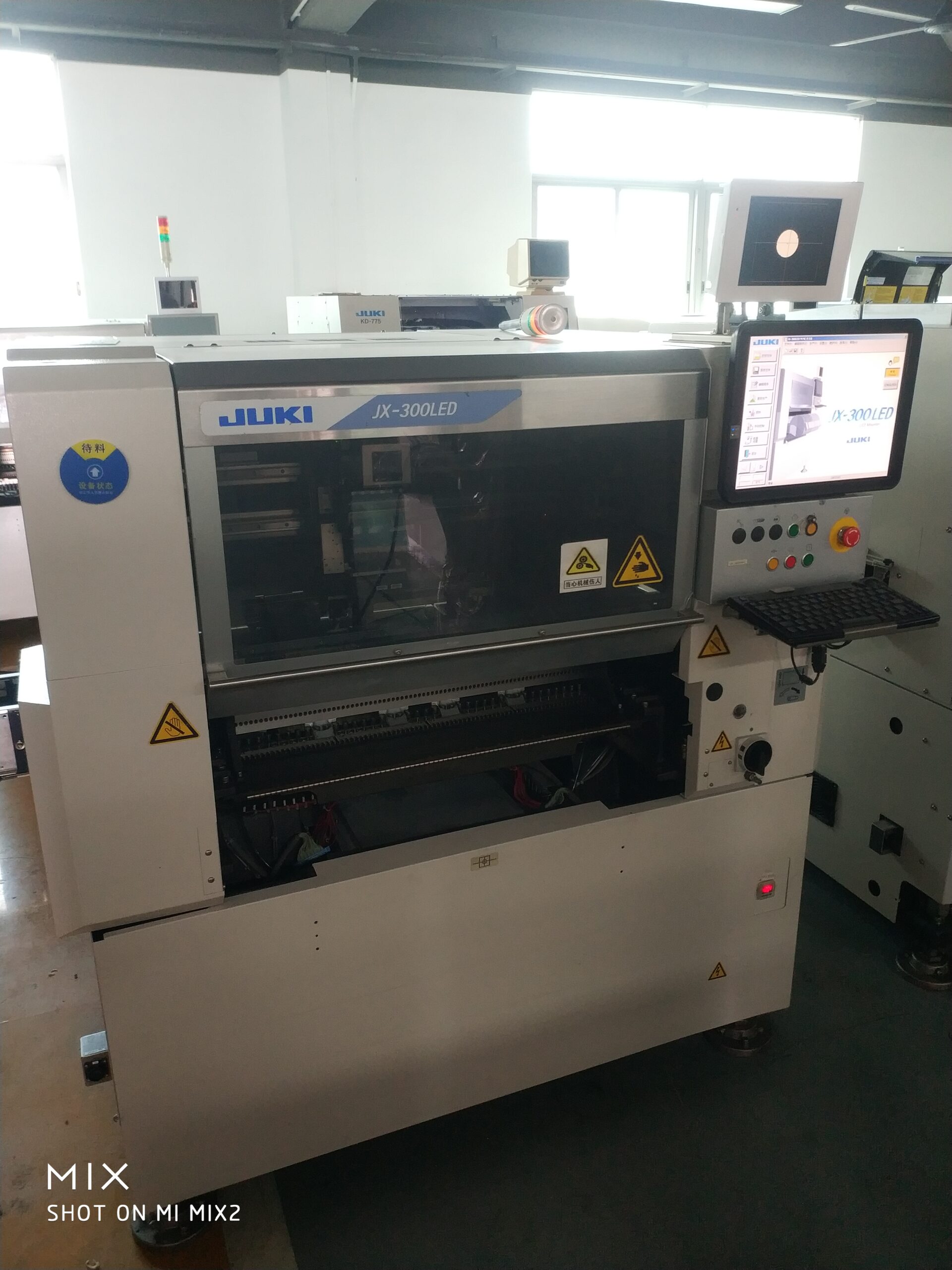

JUKI JX-300LED placement machine placement pick and palce machine Mounter

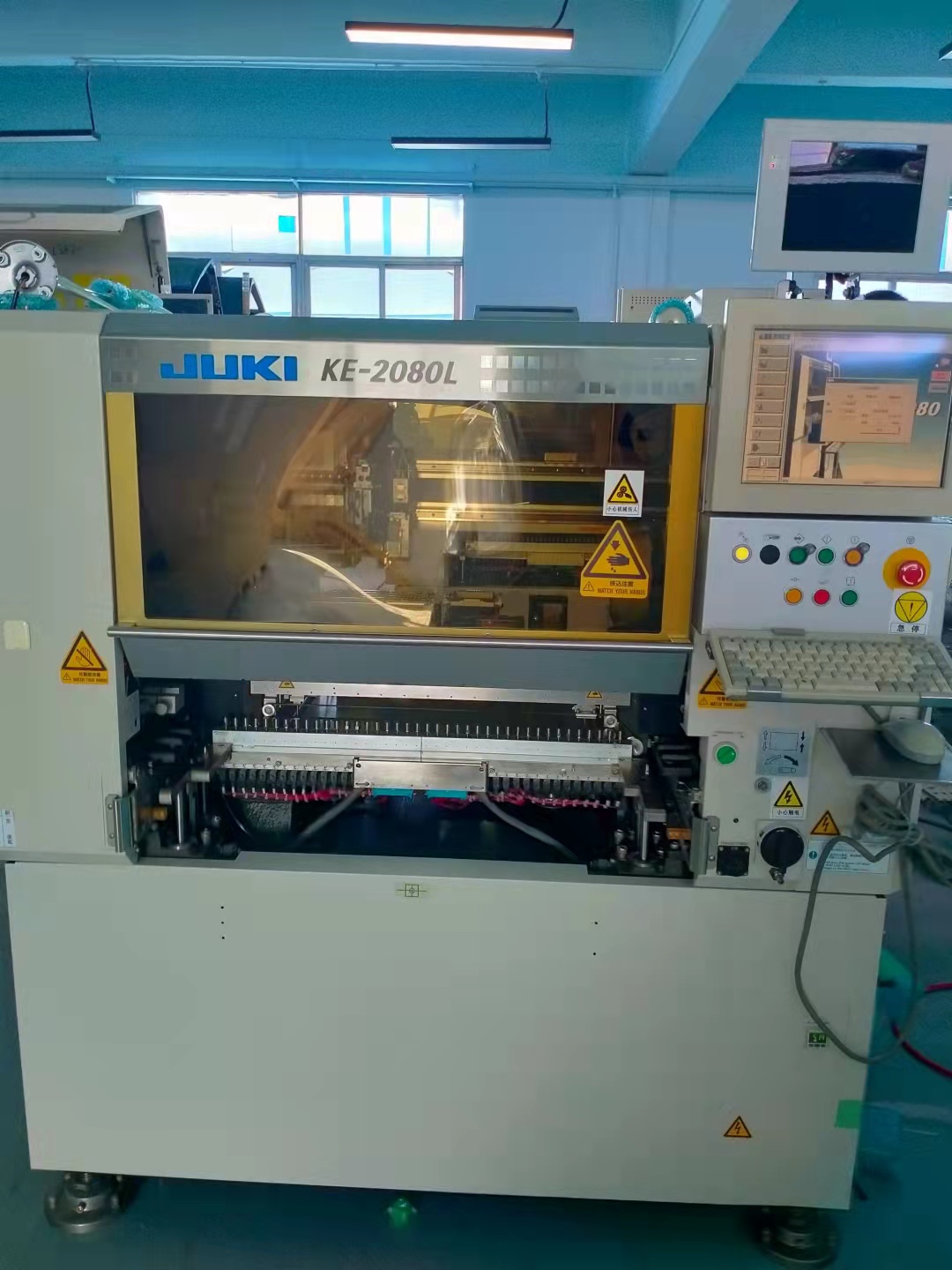

JUKI multifunctional high-speed placement machine KE2080 pick and palce machine Mounter

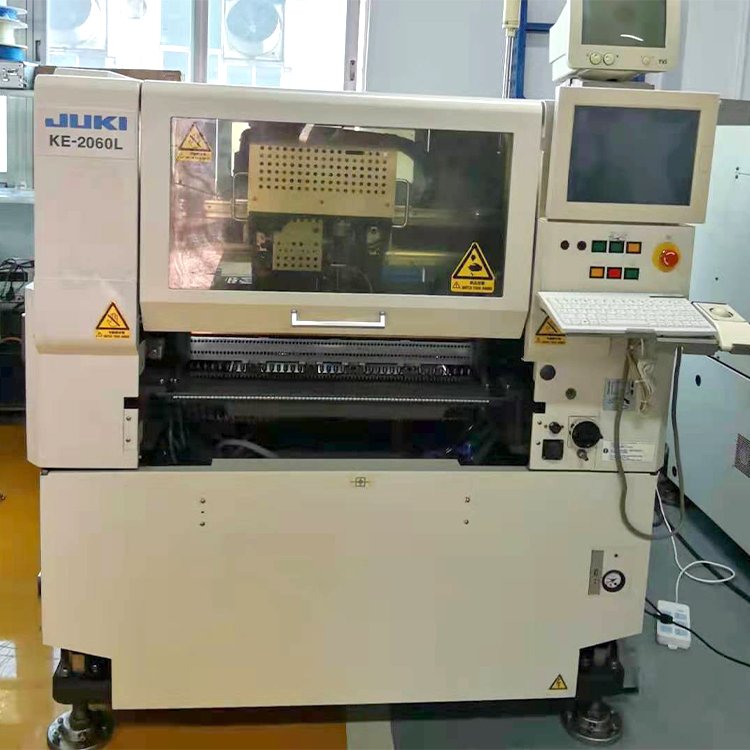

JUKI placement machine KE-2060 Mounter placement pick and palce machine
