Yamaha 3D Hybrid Modular S10/S20 Mounter placement machine

,

Specifications

S10 S20
Board size(with buffer unused) Min. L50 x W30mm to Max. L1,330 x W510mm (Standard L955) Min. L50 x W30mm to Max. L1,830 x W510mm (Standard L1,455)
Board size(with input or output buffer used) Min. L50 x W30mm to Max. L420 x W510mm -
Board size(with input and output buffers used) Min. L50 x W30mm to Max. L330 x W510mm Min. L50 x W30mm to Max. L540 x W510mm
Board thickness 0.4 - 4.8mm 0.4 - 4.8mm
Board flow direction Left to right (Std) Left to right (Std)
Board transfer speed Max 900mm/sec Max 900mm/sec
Placement speed (12 heads + 2 theta) Opt. Cond. 0.08sec/CHIP (45,000CPH) 0.08sec/CHIP (45,000CPH)
Placement accuracy A (μ+3σ) CHIP +/-0.040mm CHIP +/-0.040mm
Placement accuracy B (μ+3σ) IC +/-0.025mm IC +/-0.025mm
Placement angle +/-180 degrees +/-180 degrees
Z axis control / Theta axis control AC servo motor AC servo motor
Component height Max 30mm*1 (Pre-placed components: max 25mm) Max 30mm*1 (Pre-placed components: max 25mm)
Applicable components 0201mm – 120x90mm, BGA, CSP, connector, etc. (Standard 01005 -) 0201mm – 120x90mm, BGA, CSP, connector, etc. (Standard 01005 -)
Component package 8 - 56mm tape (F1/F2 Feeders), 8 - 88mm tape (F3 Electric Feeders), stick, tray 8 - 56mm tape (F1/F2 Feeders), 8 - 88mm tape (F3 Electric Feeders), stick, tray
Drawback check Vacuum check and vision check Vacuum check and vision check
Screen language English, Chinese, Korean, Japanese English, Chinese, Korean, Japanese
Board positioning Board grip unit, front reference, auto conveyor width adjustment Board grip unit, front reference, auto conveyor width adjustment
Component types Max 90 types (8mm tape), 45 lanes x 2 Max 180 types (8mm tape), 45 lanes x 4
Transfer height 900 +/- 20mm 900 +/- 20mm
Machine dimensions, weight L1250xD1750xH1420mm, Approx. 1,200kg L1750xD1750xH1420mm, Approx. 1,500kg
*1 :
Board thickness + Component height = Max 30mm
Specifications and appearance are subject to change without prior notice.
Enquiry

Yamaha Compact High-speed Modular YSM10 Mounter placement machine

,
YSM10
Applicable PCB L 510 x W 460mm - L 50 x W 50mm Note : Available in lengths up to L950mm as an option.
Applicable components 03015mm to W55 x L100mm (For parts sizes larger the width 45mm, recognition of parts is divided into sections.), Height 15mm or less Note : A multi camera (option) is required for part heights exceeding 6.5mm or part sizes exceeding 12mm
Mounting capability HM head (10 nozzle) specification : 46,000CPH (under optimum conditions as defined by Yamaha Motor) HM 5 head (5 nozzle) specification : 31,000CPH (under optimum conditions as defined by Yamaha Motor)
Mounting accuracy (Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used) +/-0.035mm (+/-0.025mm) Cpk 1.0 (3σ)
Number of component types Fixed plate : Max. 96 types (conversion for 8mm tape feeder) Note 1 Tray : 15 types (maximum when equipped with sATS15, JEDEC)
Power supply 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source 0.45MPa or more, in clean, dry state
External dimension L1,254 x W1,440 x H1,445mm
Weight Approx. 1,270kg
Enquiry

Yamaha High-efficiency Modular Z:LEX YSM20R Mounter placement machine

,

Specifications

Model YSM20R
Applicable PCB Single lane L810 x W490 to L50 x W50 Dual stage  Note: For X-axis 2-beam option only 1PCB conveyance: L810 x W490 to L50 x W50 2PCB conveyance: L380 x W490 to L50 x W50
Head / Applicable components High-Speed Multi (HM) Head * 0201mm to W55 x L100mm, Height 15mm or less Odd-shaped components (FM: Flexible Multi) head: 03015mm to W55 x L100mm, Height 28mm or less
Mounting capability (under optimum conditions as defined by Yamaha Motor) X axis 2-beam: High-speed multi-purpose (HM: High-speed Multi) head x 2 95,000CPH
Mounting accuracy ±0.035mm (±0.025mm) Cpk≧1.0 (3σ) (under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used)
Number of component Types Fixed plate: Max. 140 types (conversion for 8mm tape feeder) Feeder carriage exchange: Max. 128 types (conversion for 8mm tape feeder) Trays for 30 types (Fixed type: max., when fitted with sATS30) and 10 types (Carriage type: max., when fitted with cATS10)
Power supply 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source 0.45MPa or more, in clean, dry state
External dimension (excluding projections) L 1,374 x W 1,857 x H1,445mm (Main unit only)
Weight Approx. 2,050kg (Main unit only)
Enquiry

Yamaha I-Pulse M1 pick&place machine placement mounter.

,
Yamaha I-Pulse M1 pick&place machine placement mounter. Specifications: Board Size(LxWxT)mm Max.460 x 410 x 2.0㎜,Min.50 x 50 x 0.5㎜ Conveyor
Enquiry

Yamaha iPulse M10 high speed smt pick and place machine

,
Yamaha iPulse M10 high speed smt pick and place machine Model Yamaha I-pulse M10 Board size(with buffer unused) Min. L50
Enquiry

Yamaha iPulse M20 high speed smt pick and place machine

,
Yamaha iPulse M20 high speed smt pick and place machine Model I-PulseM20 Board size(with buffer unused) Min. L50 x W30mm
Enquiry

YAMAHA Mounter YG200 PLACEMENT MACHINE

,
YAMAHA Mounter YG200 Features: (1) Ultra-high-speed and high-precision placement machine; (2) 0.08 seconds/CHIP ultra-high-speed placement (best condition); (3) Under the
Enquiry

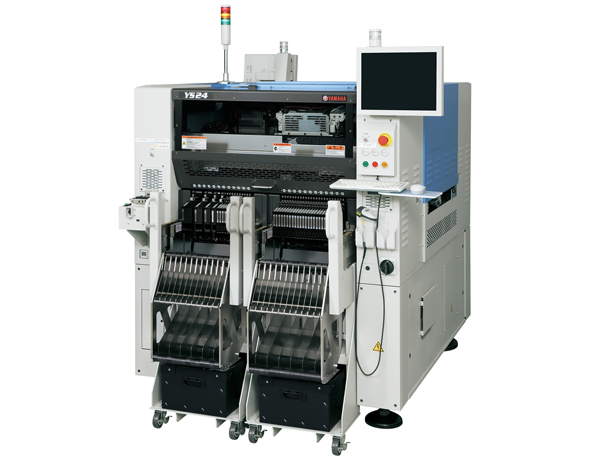

Yamaha placement machine YS24 mounter

,
Yamaha placement machine YS24, small ultra-high speed module placement machine yamaha ys24 features: 72,000CPH(0.05sec/CHIP) ** placement capacity Newly developed double-stage
Enquiry

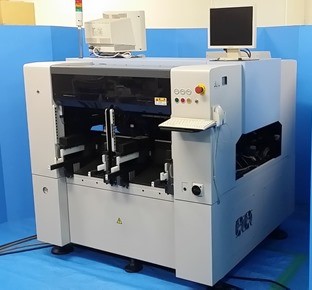

YAMAHA placement machine-YV88

,
YAMAHA placement machine-YV88 equipment parameters: PCB board size: L510×W440mm to L50×W50mm Mounting speed: 8,400CPH (0.43sec/CHIP Equivalent) Mounting accuracy: +/-0.05mm/CHIP, +/-0.03mm/QFP
Enquiry

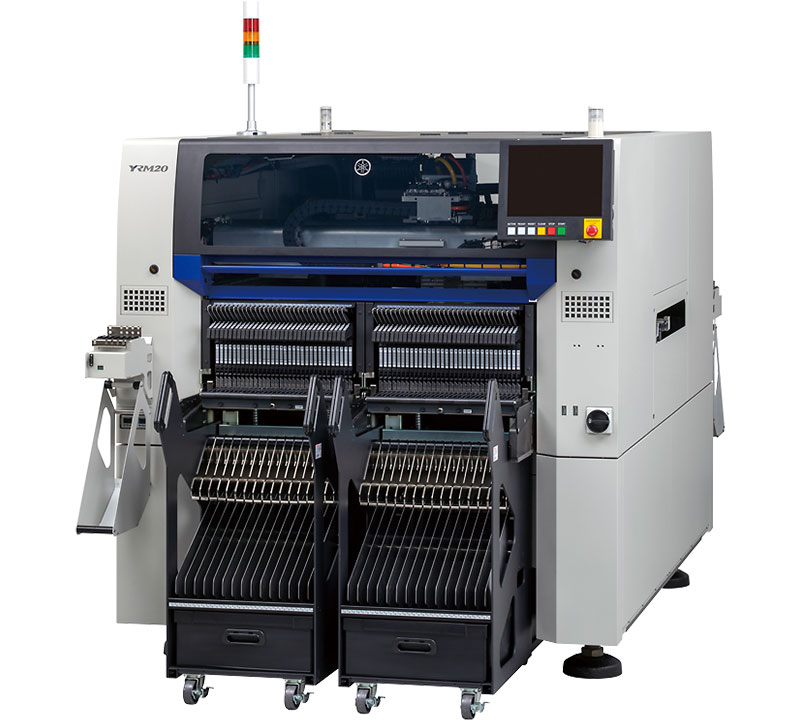

Yamaha Premium High-efficiency Modular YRM20 Mounter placement machine

,

Specifications

Model YRM20
Super high-speed rotary RM head High-speed general-purpose in-line HM head Odd-shaped components in-line FM (flexible-multi) head
Nozzles (per 1 head unit) 18 10 5
Applicable components 0201mm to W12 x L12mm, Height 6.5mm or less 0201mm to W55 x L100mm, Height 15mm or less 03015mm to W55 x L100mm, Height 30mm or less
Mounting capability under optimum conditions (in high production mode) 2-beam : 115,000CPH (under optimum conditions) 1-beam : 57,500CPH (under optimum conditions) 2-beam : 98,000CPH (under optimum conditions) 1-beam : 49,000CPH (under optimum conditions) 2-beam : 35,000CPH (under optimum conditions) 1-beam : 17,500CPH (under optimum conditions)
Mounting accuracy (high-accuracy mode) ±0.025mm Cpk≧1.0 (under optimum conditions) ±0.035mm Cpk≧1.0 (under optimum conditions)
Number of component types Feeder carriage exchange : Max. 128 types = 32 feeders x 4 (conversion for 8mm tape feeder) Fixed plate : Max. 128 types (conversion for 8mm tape feeder), Trays : 60 types (maximum when equipped with eATS30 x 2)
PCB dimensions 1-beam : (Single lane) Standard specifications : L50 x W50mm to L510 x W510mm, option : L50 x W50mm to L810 x W510mm 2-beam : (Dual stage) 1-PCB conveyance : L50 x W50mm to L810 x W510mm, 2-PCB conveyance : L50 x W50mm to L380 x W510mm
Power supply 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source 0.45MPa or more, in clean, dry state
External dimension (excluding projections) L1,374 x W1,948 x H1,445mm
Weight 2-beam : Approx. 2,250kg (Main unit only), 1-beam : Approx. 2,150kg (Main unit only)
Enquiry

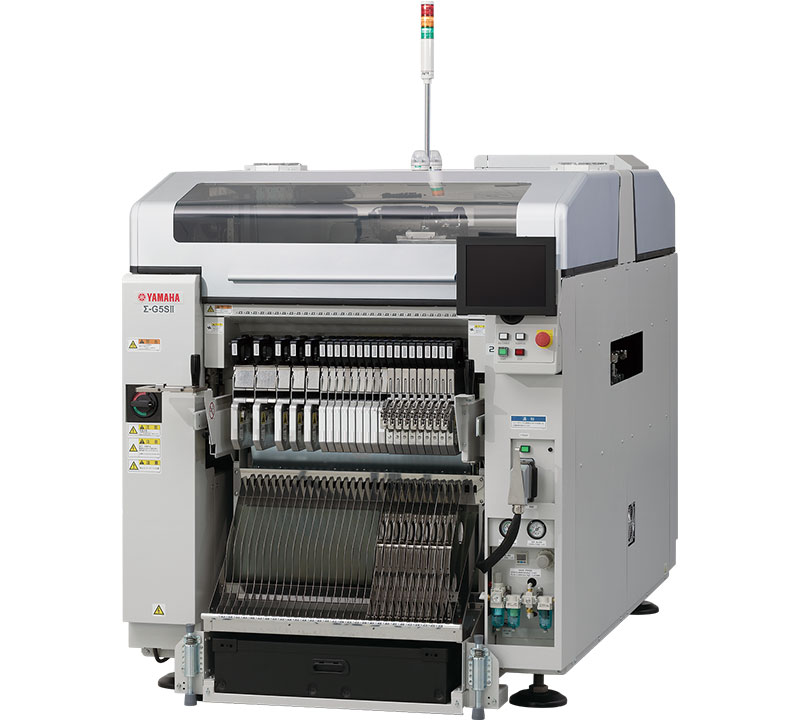

Yamaha Premium Modular Σ-G5SⅡ Mounter placement machine

,

Specifications

∑-G5SⅡ
Applicable PCB Single lane L610×W510 mm to L50×W50 mm (Optional: L1,200×W510 to L50×W50 mm)
Dual lane L610×W250 mm to L50×W84mm (dual feed) L610×W415mm (single feed)
Mounting capability High-Speed Multi-Head×2 specifications: 90,000 CPH (single lane/dual lane)
Mounting accuracy (Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used) High-Speed Multi (HM) Head 0201mm/03015mm: ±25μm/80,000 CPH 0402mm: ±36 μm/85,000 CPH 0603mm: ±40 μm/90,000 CPH
Flexible Multi (FM) Head ±15μm
Applicable components High-Speed Multi (HM) Head 0201mm to L44×W44×H12.7 mm or under
Flexible Multi (FM) Head 1005mm to L72×W72×H25.4 mm or under Connector: 150×26 mm
Number of component types 120 types max. (8 mm wide tape equivalent)
Power supply 3-phase AC200V ±10%, 50/60Hz
Air supply source 0.45 to 0.69 MPa (4.6 to 7 kgf/cm²)
External dimension (excluding projections) L 1,280 x W 2,240 x H 1,450mm
Weight Approx. 1,800 kg
Specifications and appearance are subject to change without prior notice.

Enquiry

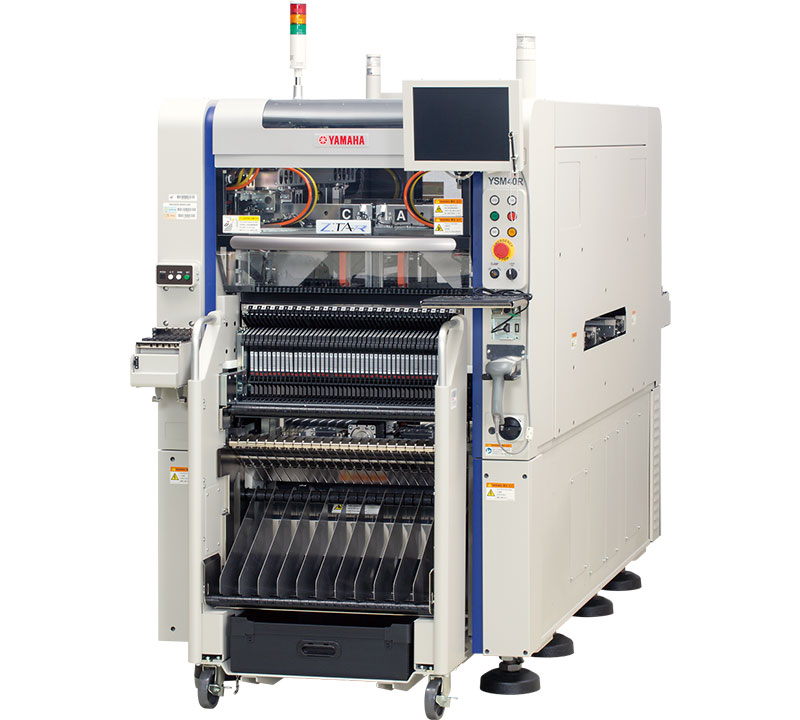

Yamaha Ultra-High-Speed Modular Z:TA-R YSM40R Mounter placement machine

,

Specifications

Z:TA-R YSM40R
4-Beam, 4-Head Spec. (YSM40R-4)
Applicable PCB L700×W460mm to L50×W50mm
Mounting capability (under optimum conditions as defined by Yamaha Motor) 200,000CPH (When using RS head)
Applicable components Ultra-High-Speed (RS) Head 0201mm* to □6.5mm (Height 2.0mm or less) *option
Multi (MU) Head 03015mm to 45×60mm (Height 15mm or less)
Mounting accuracy (Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used) +/-35μm (25μm) Cpk ≧1.0 (3σ)
Number of component types * 8mm width tape conversion Max. 80 feeders with RS heads Max. 88 feeders with MU heads Max. 84 feeders with RS x 2 + MU x 2 heads
Power supply 3-Phase AC 200/208/220/240/380/400/416V +/-10%
Air supply source 0.45MPa or more, in clean, dry state
External dimension L1,000×W2,100×H1,550mm (excluding projections)
Weight Approx. 2,100 kg
