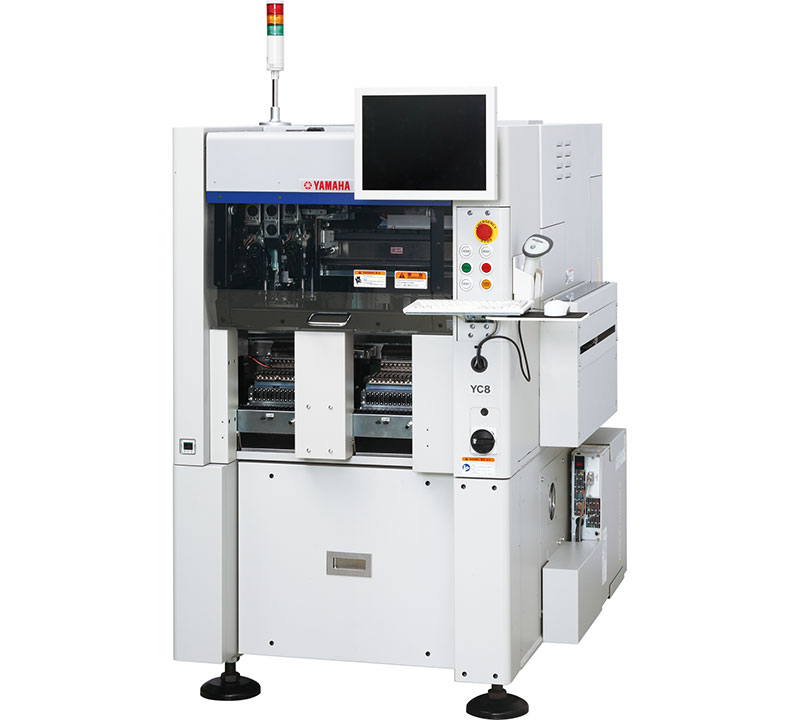

Yamaha Wide-Range Compact Modular YC8 Mounter placement machine
Specifications
| YC8 | ||
|---|---|---|
| Applicable PCB | L50 x W50mm to L330 x W360mm *1 | |
| Mounting accuracy | When using Yamaha's standard components | Absolute accuracy (μ+3σ):+/-0.05mm /QFP Repeatability(3σ) +/-0.03mm /QFP |
| Mounting capability | Indication | 2.5sec/component (Cycle time from a pickup to mounting with recognition) |
| Applicable components | 4 x 4mm to 100 x 100mm *2 (Some components larger than 45 x 45mm ane conditional) Maximum components heights 45mm Maximum payload 1kg | |
| Component supply configuration: Number of component types | Tape reel : MAX. 28 types (8mm width) Tray : MAX. 15 trays Stick | |
| Power supply | 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz | |
| Air supply source | 0.45MPa or more, in clean, dry states | |
| External dimension (excluding projections) | L 880 x W1,440 x H1,445mm (Main unit only) L 880 x W1,755 x H1,500mm (When ATS15 is installed) | |
| Weight | Approx. 1,000kg (Main unit only) ATS15 : Approx. 120kg | |
- *1
- Please consult us separately for maximum board sizes.
- *2
- Consult us separately regarding component sizes outside the specifications.
- Specifications and appearance are subject to change without prior notice.

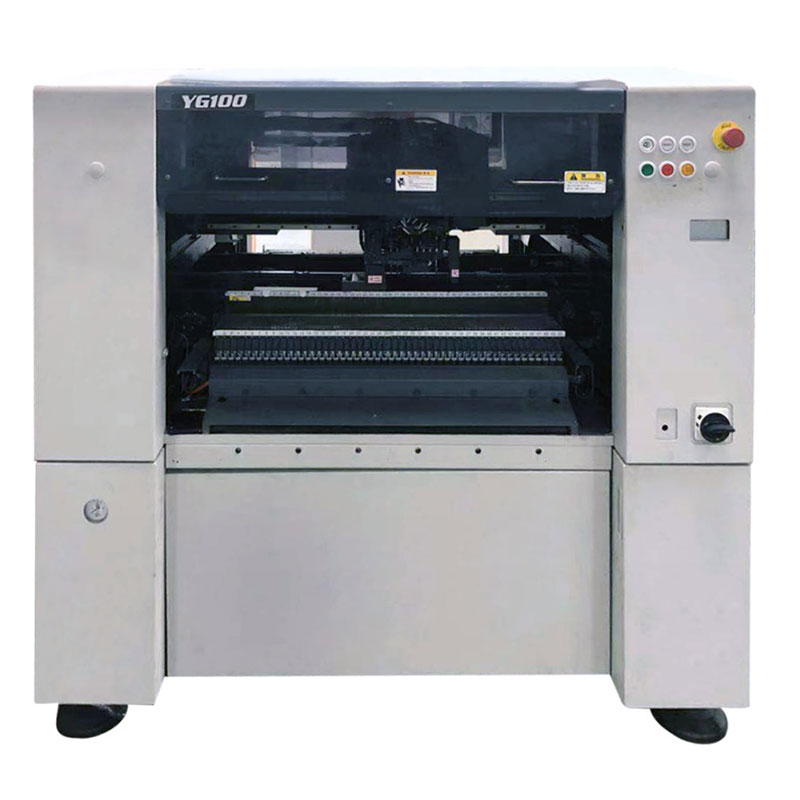

YAMAHA YG100 high-speed placement machine

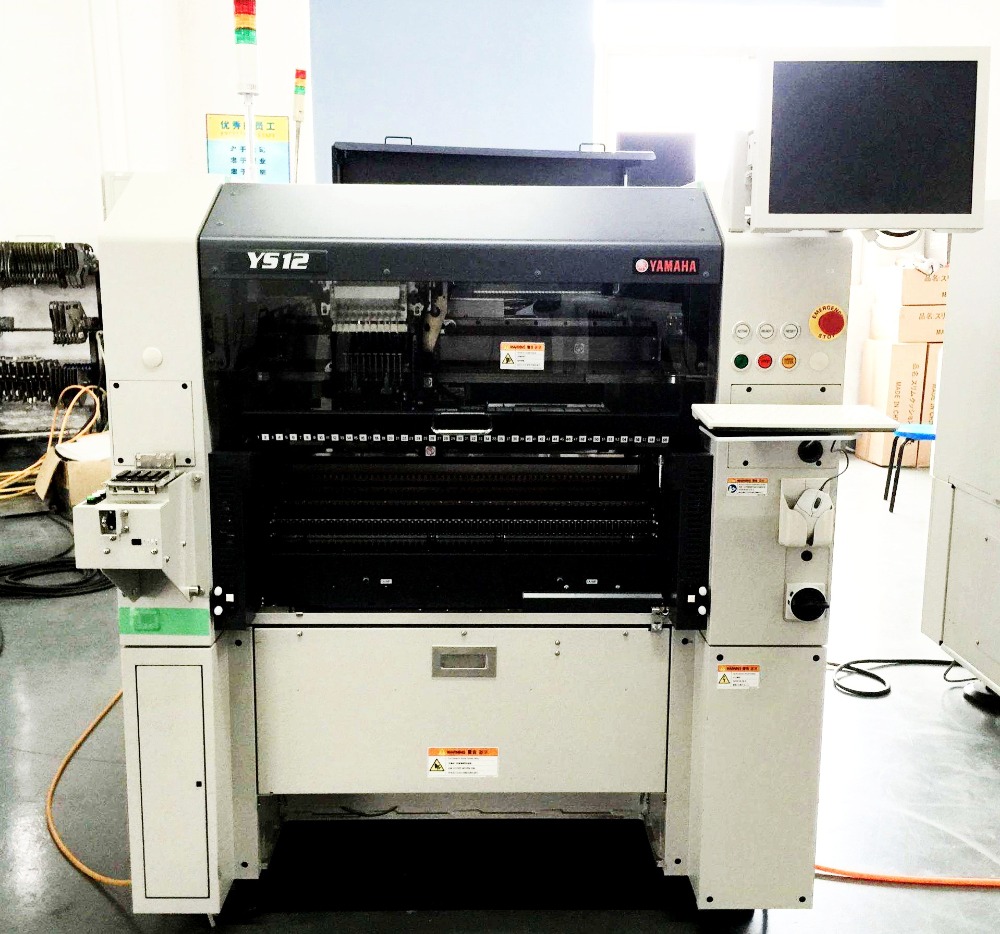

Yamaha YS12 small high-speed module placement machine
