JUKI High-Speed Compact Modular Mounter RX-6R/RX-6B placement pick and palce machine
Features
| Placement speed | Chip : 52,000CPH*2 IC : 14,000CPH*3 |
|---|---|
| Component size | 0402mm(01005 inch) ~ 50mm×50mm*4 0402mm(01005 inch) ~ 100mm×100mm / 50×180mm*5 |
| Board size | Single lane conveyor: 50×50 ~ 610×590 / 905×590(2times clamping) Dual lane conveyor*6: 50×50 ~ 360×250 / 360×450(single lane conveyor specification mode) |
| Head unit | 6×6nozzle head 6×3nozzle head *6 |
- This is applicable to dual-lane production.*6
- Compact footprint : the width is just 1.25m
- Equipped with standard Placement Monitor check function.*1
- Replaceable head allow you to configure a production line best suited to the current repirments.*6
- High-speed component placement using high-speed non-stop vision recognition.*3
- Wide range of components and boards: tall components, large components and large boards.
- Brand new Matrix Tray Sever TR8S improves the component capability and productivity.
JUKI High-Speed Compact Modular Mounter RX-8 placement pick and palce machine
Features
- High-speed placements of up to 100,000 CPH.*¹
- Best-in-class placement rate per square meter(sq ft).*²
- Integrates seamlessly with the production enviroment
- Trace Monitor tracks quality throughout production process
- Low impact placement for flexible circuits
- The P20 high-precision planet head is ideal for high speed pocking and placing from a single reel.
- State-of-the-art centering and inspection vision system
- New high accuracy camera for inspection and centering
- *¹ Optimum conditions *² Market survey data
JUKI High-Speed Flexible Mounter KE-3020VA placement pick and palce machine
Features
Continued Evolution of the KE Series
| Chip | 20,900CPH chip (Laser centering / Optimum) 17,100CPH chip (Laser centering / IPC9850) |
|---|---|
| IC | 9,470CPH (Vision centering / MNVC) |
- From 0402(01005) to 74mm square components or 50×150mm
- KE-3020VA One multi-nozzle laser head (6 nozzles) plus one IC head with CDS sensor (1 nozzle)
- The use of electronic double tape feeders enables mounting of a maximum of 160 component types.
- MNVC is standard
- High-speed, on-the-fly vision centering (When using both high-resolution camera and MNVC)
- High speed feeding of tray components (Option)
- Longer sized PWB in X axis(option)
- PoP placement(option)
JUKI High-Speed Modular Mounter FX-3RA placement pick and palce machine
Features
| Chip | 90,000CPH (0.040Sec. / chip / Optimum） 66,000CPH (IPC9850) |
|---|
- 0402mm(01005 inch) ~ 33.5mm×33.5mm
- Laser recognition : ±0.05mm(±3σ)
- On-the-fly centering using integrated laser
- 2 stations, 4 gantries, 4 placement heads, 24 nozzles
- Linear servo motor XY drive with full closed-loop control
- Holds up to 240 components
- Electrical or mechanical feeder trolley
JUKI high-speed placement machine FX-1R placement pick and palce machine Mounter
JUKI JX-300LED placement machine placement pick and palce machine Mounter

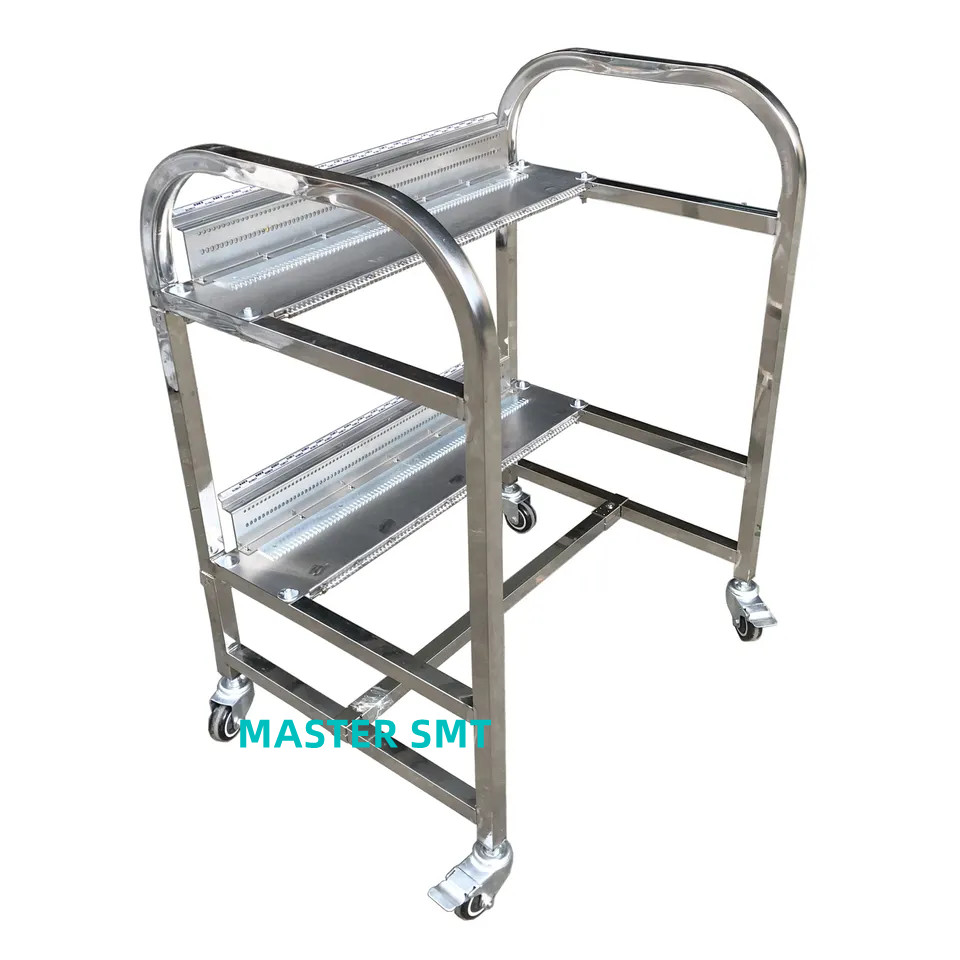

JUKI Mechanical Feeder Storage Cart
JUKI multifunctional high-speed placement machine KE2080 pick and palce machine Mounter
JUKI placement machine KE-2060 Mounter placement pick and palce machine
JUKI placement pick and palce machine 2070 Mounter

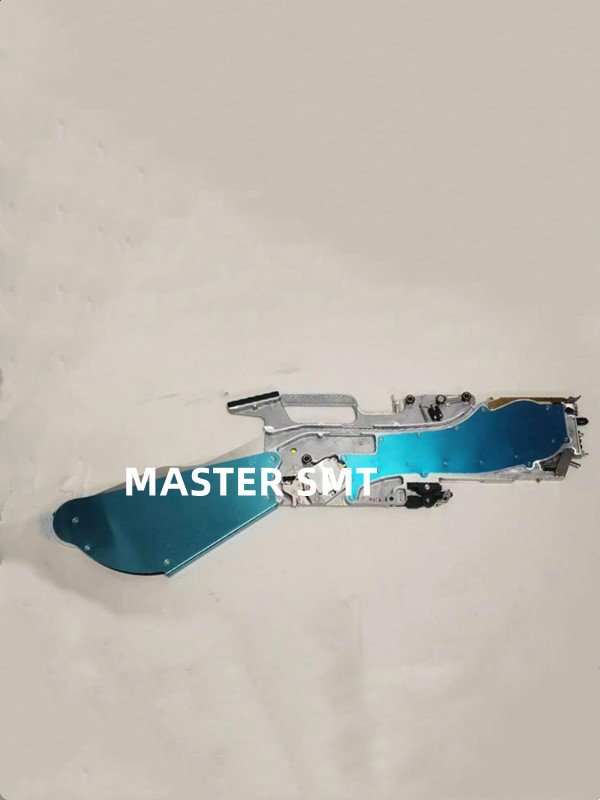

JUKI Pneumatic 24MM FEEDER upgraded to 24MM electronics feeeder FOR KE FX JX Series

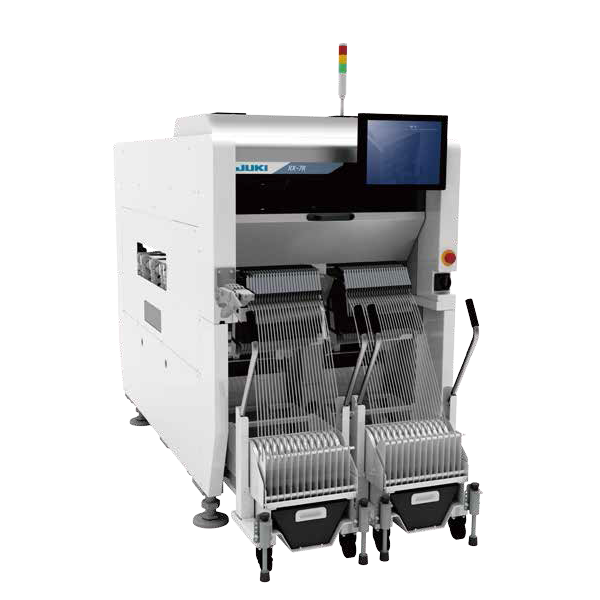

JUKI RX-7R High Speed Modular Mounter placement pick and palce machine
P16S+P16S high-precision rotary placement head, which can support 56 kinds of placement materials at the same time. 998mm modular body design, more efficient left and right operation surfaces, 2.3Kwv ultra-low rated power
PCB size: 510*450mm Mounting speed: 75000 CPH
Component size: 03015~port 5mm Component types: 56
Component height: 3mm Rated power: 2.3KVA
Mounting accuracy: ±0.04mm (Cpk≥1) Body size: 998*1895*1530mm
