Hanwha High Speed ​​General Mounter DECAN L2

,

Specifications

Alignment
Fly Camera, Fix Camera
Spindle & Speed
2 Gantry * 6 Spindle / 56,000 CPH
Accuracy
±40µm Cpk≥1.0 (0402 (01005 inch) chip) /±30µm Cpk≥1.0 (IC, Stage Vision)
Component Range
Fly: 0402 ~ □21 mm / Fix: ~□42 mm (Standard) / ~□55 mm (MFOV) / ~ L75 mm Connector (MFOV)
Dimension
L 1,430 x D 1,740 x H 1,995
Enquiry

Samsuang Hanwha DECAN F2

,

Specifications

Alignment
Fly Camera, Fix Camera
Spindle & Speed
2 Gantry * 10 Spindles / 80,000 CPH
Accuracy
±40µm Cpk≥1.0 (0402 (01005 inch) chip) /±30µm Cpk≥1.0 (IC, Stage Vision)
Component Range
Fly: 0402 ~ □16 mm / Fix: ~□42 mm (Standard) / ~□55 mm (MFOV) / ~ L75 mm Connector (MFOV)
Dimension
L 1,430 x D 1,740 x H 1,995
Enquiry

Samsung Hanwha DECAN S1 mounter placement pick and place machine

,

Specifications

Alignment
Fly Camera, Fix Camera
Spindle & Speed
1 Gantry * 10 Spindle / 47,000 CPH
Accuracy
±28μm @ Cpk≥ 1.0 (Chip) / ±30μm @ Cpk≥ 1.0 (IC)
Component Range
Fly: 03015 ~ □16 mm / Fix: ~□42 mm (Standard) / ~□55 mm (MFOV) / ~ L75 mm Connector (MFOV)
Dimension
L 1,430 x D 1,740 x H 1,485
Enquiry

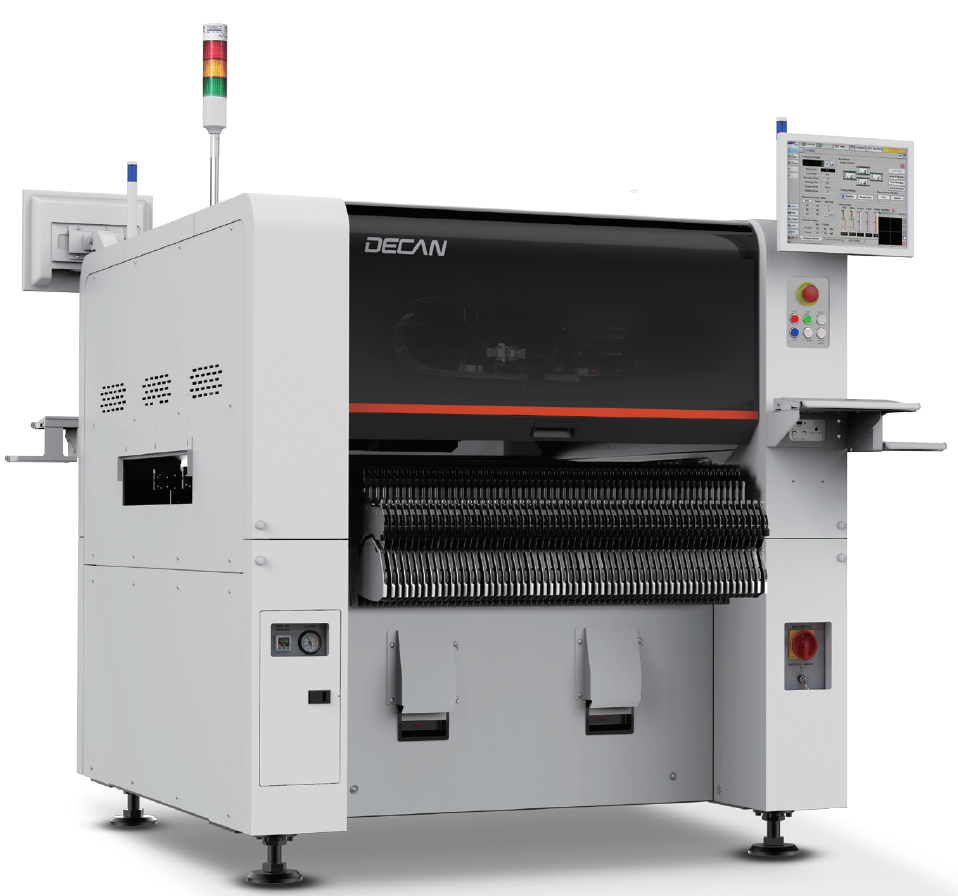

Samsung Hanwha High Speed ​​Mounter DECANS2

,

Specifications

Alignment
Fly Camera, Fix Camera
Spindle & Speed
2 Gantry * 10 Spindle / 92,000 CPH
Accuracy
±28 μm @ Cpk ≥ 1.0 (03015 Chip) / ±25 μm @ Cpk ≥ 1.0(IC)
Component Range
Fly: 03015 ~ □12 mm / Fix: ~□42 mm (Standard) / ~□55 mm (MFOV) / ~ L75 mm Connector (MFOV)
Dimension
L 1,430 x D 1,740 x H 1,995
Enquiry

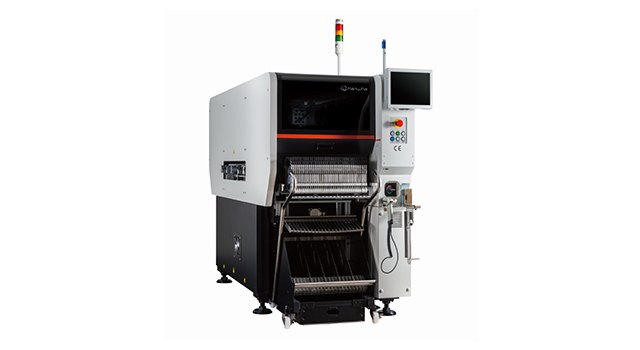

Samsung Hanwha HM520 mounter placement pick and place machine

,

Specifications

Alignment
Fix Camera
Number of Spindles
20 spindles x 2 Gantry (Rotary Type)
Placement Speed
80,000 CPH
Placement Accuracy
±25 μm @ Cpk ≥ 1.0 (Chip)
Component Range
0201 ~ □ 6 mm
Enquiry

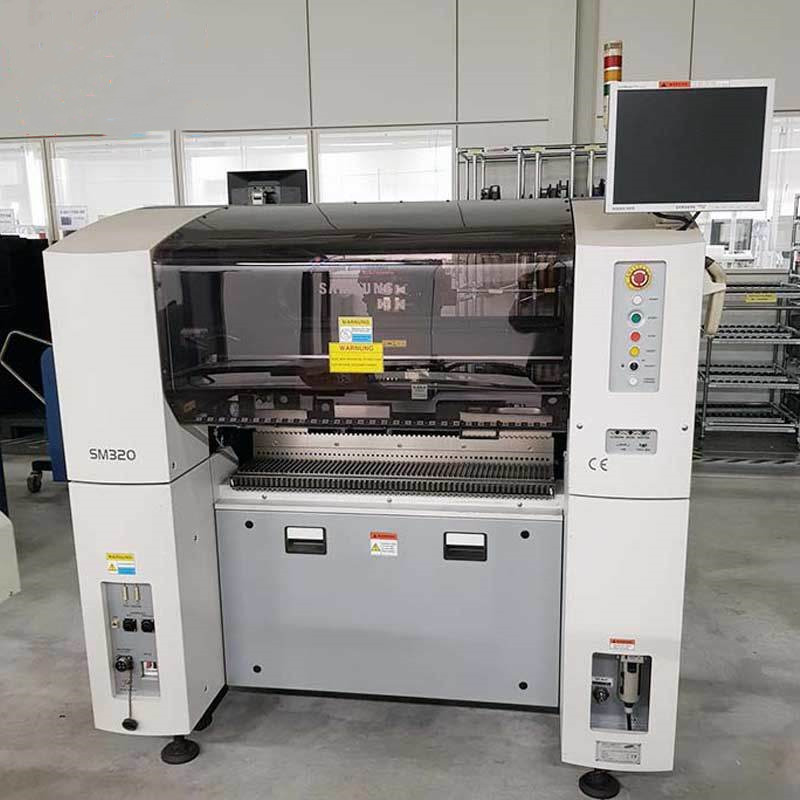

Samsung Mounter SM320 Pick&Place machine

,
Samsung Mounter SM320|Samsung Medium Speed Mounter|Multifunctional Mounter Model: Samsung Mounter SM320 Component identification method: FLYING VISION +STAGE VISION Mounting Efficiency
Enquiry

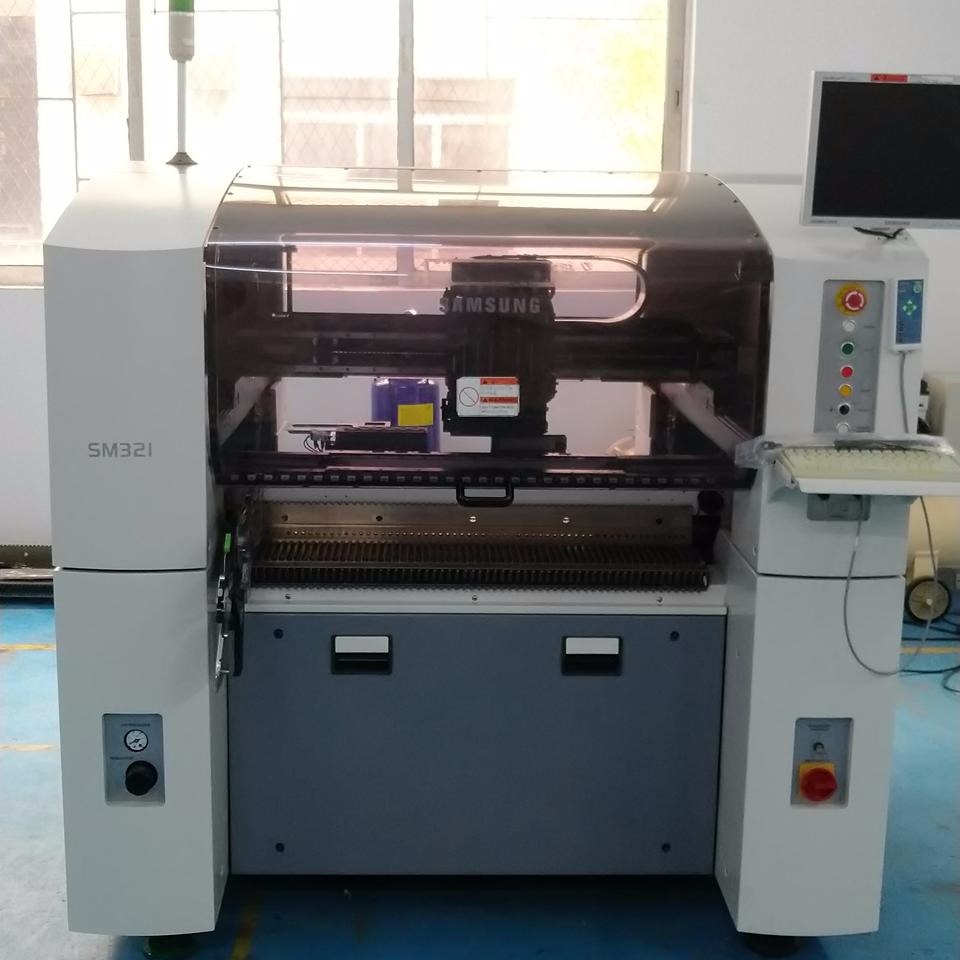

Samsung Mounter SM321 Pick&Place machine

,
Mounting speed of Samsung placement machine SM321: 1608CHIP: 21K CPH (IPC) 1005CHIP: 20K CPH(IPC) SOP16: 15K CPH(IPC)/feeder QFP100: 5.5K CPH(IPC)/tray
Enquiry

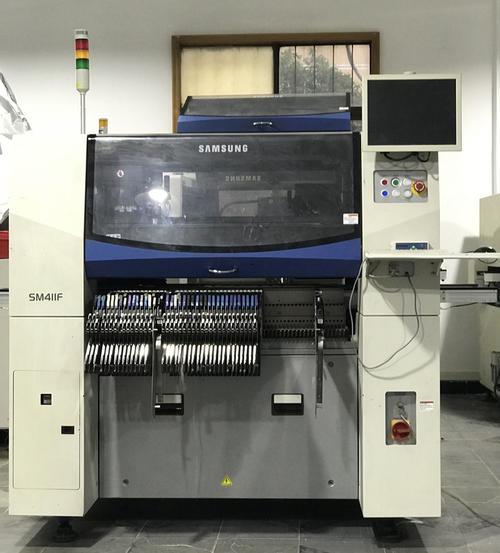

Samsung Mounter SM411F Pick&Place machine

,
SAMSUNG SM411F DESCRIPTION: Alignment Flying Vision + Stage Vision Placement Rate Flying Vision ㆍ1608 Chip :  30,000 CPH (IPC9850) ㆍSOP
Enquiry

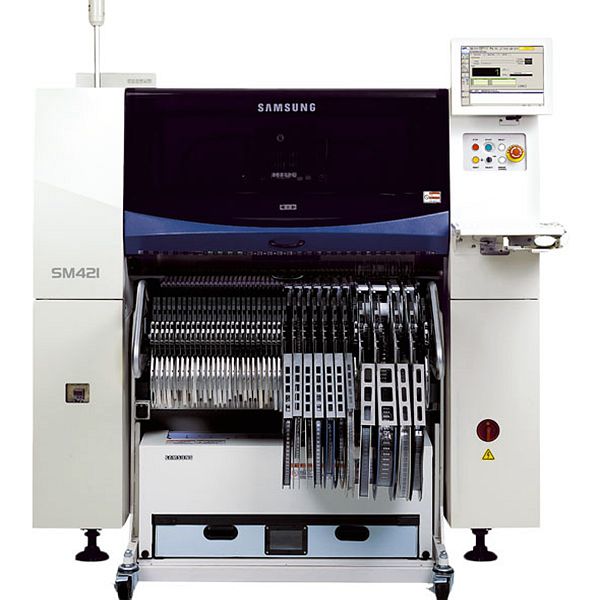

Samsung Mounter SM421 Pick&Place machine

,
Samsung placement machine SM421 information is as follows: 1) Mounting speed: Chip 21K CPH (IPC9850)/QFP 5.5K CPH (IPC9850) 2) Corresponding
Enquiry

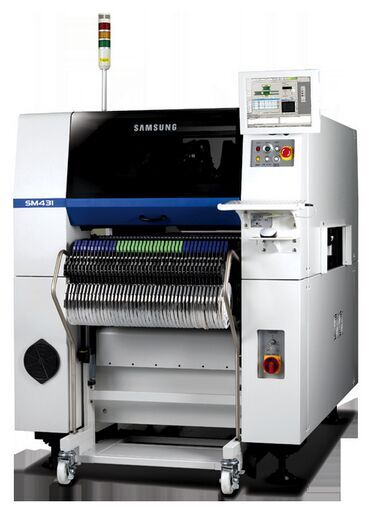

Samsung Mounter SM431 Pick&Place machine

,
Equipment detailed parameter introduction: 1. Speed: 55,000CPH (best condition) 2. Dual-gantries Y-axis dual-servo drive system 3. A total of 16
Enquiry

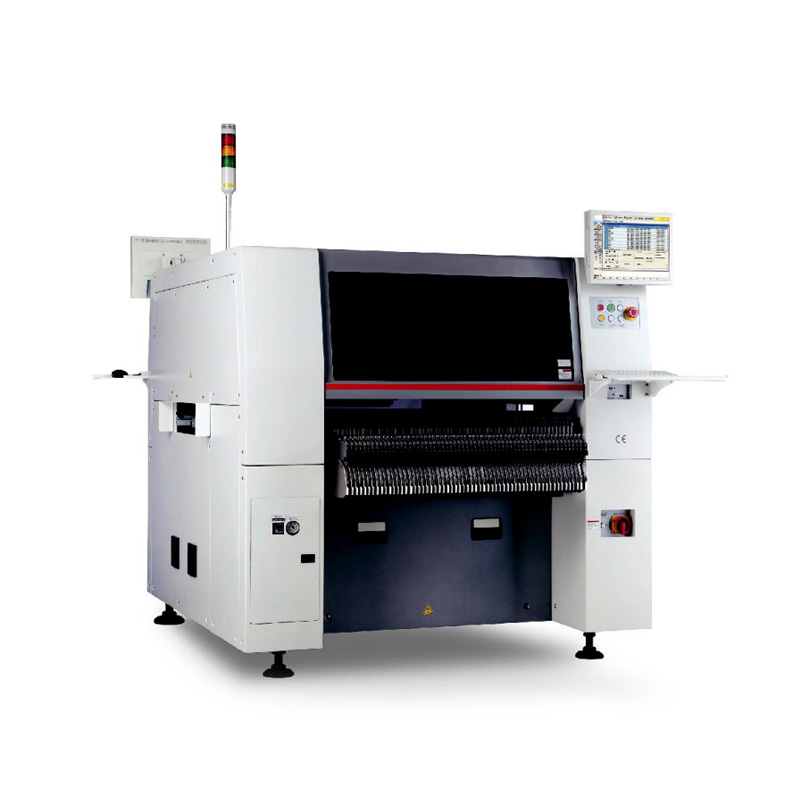

SMT placement machine Samsung placement machine SM471Plus

,
High-performance chip shooter with a new fly camera · World's highest speed of 78,000CPH among chip shooters of the same class · With two gantry dual-lane construction, supports various production modes

Specifications

Alignment
Fly Camera
Spindle & Speed
2 Gantry * 10 Spindle / 78,000 CPH
Accuracy
±40μm@±3σ (Chip) / ±50μm@±3σ (QFP)
Component Range
0402 ~ □14mm
Dimension
L 1,650 x D 1,690 x H 2,045
Enquiry

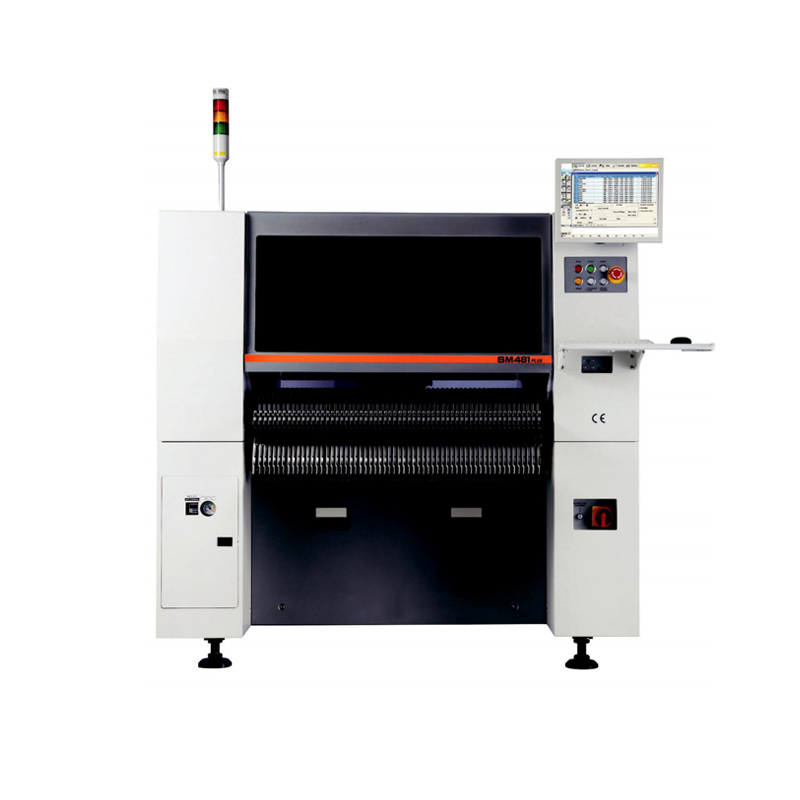

SMT Samsung Mounter SM481Plus 481

,

Specifications

Alignment
Fly Camera + Fix Camera (Option)
Spindle & Speed
1 Gantry * 10 Spindle / 40,000 CPH
Accuracy
±40μm@±3σ (Chip) / ±30μm@±3σ(QFP)
Component Range
Fly: 0402 ~ □16mm / Fix: ~□55mm, L75mm Connector
Dimension
L 1,650 x D 1,680 x H 2,090
σ/QFP
