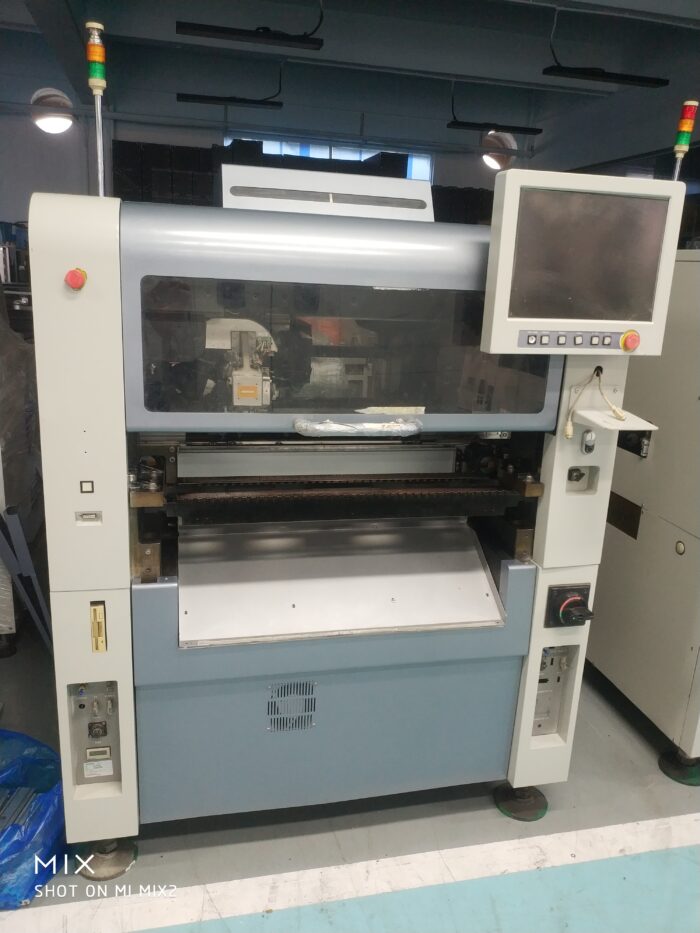

| Model | SI-F130 |
| Weight | 1560KG |
| Dimension | 1220*1440*1545mm |
| PCB direction | L to R; R to L |
| Machine height | 900mm+30,-10 |
| Speed | 25,900CPH |
| Best speed | 0 . 139S ( flying camera) 1. 0S (fixed camera) |
| Precision | ±0.05um(3δ) |
| Applicable components | 0402~□12mm（flying camera） □6mm~□25mm（fixed camera/option） *Thickness<1mm,>6mm |
| Feeder quantity | front:40pcs
rear:40pcs |
| Nozzle | 12 nozzles |
| PCB size | Min:5 0 × 50mm Max:4 6 0 × 360mm |
| Thickness:0.5~~3.0mm | |
| Power supply | 3phrase 2 0 0V ± 10% 5 0 /60Hz 15A |
| Air comsuption | 0.5L/min |
Description
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
Yamaha 3D Hybrid Modular S10/S20 Mounter placement machine
Specifications
| S10 | S20 | |
|---|---|---|
| Board size(with buffer unused) | Min. L50 x W30mm to Max. L1,330 x W510mm (Standard L955) | Min. L50 x W30mm to Max. L1,830 x W510mm (Standard L1,455) |
| Board size(with input or output buffer used) | Min. L50 x W30mm to Max. L420 x W510mm | - |
| Board size(with input and output buffers used) | Min. L50 x W30mm to Max. L330 x W510mm | Min. L50 x W30mm to Max. L540 x W510mm |
| Board thickness | 0.4 - 4.8mm | 0.4 - 4.8mm |
| Board flow direction | Left to right (Std) | Left to right (Std) |
| Board transfer speed | Max 900mm/sec | Max 900mm/sec |
| Placement speed (12 heads + 2 theta) Opt. Cond. | 0.08sec/CHIP (45,000CPH) | 0.08sec/CHIP (45,000CPH) |
| Placement accuracy A (μ+3σ) | CHIP +/-0.040mm | CHIP +/-0.040mm |
| Placement accuracy B (μ+3σ) | IC +/-0.025mm | IC +/-0.025mm |
| Placement angle | +/-180 degrees | +/-180 degrees |
| Z axis control / Theta axis control | AC servo motor | AC servo motor |
| Component height | Max 30mm*1 (Pre-placed components: max 25mm) | Max 30mm*1 (Pre-placed components: max 25mm) |
| Applicable components | 0201mm – 120x90mm, BGA, CSP, connector, etc. (Standard 01005 -) | 0201mm – 120x90mm, BGA, CSP, connector, etc. (Standard 01005 -) |
| Component package | 8 - 56mm tape (F1/F2 Feeders), 8 - 88mm tape (F3 Electric Feeders), stick, tray | 8 - 56mm tape (F1/F2 Feeders), 8 - 88mm tape (F3 Electric Feeders), stick, tray |
| Drawback check | Vacuum check and vision check | Vacuum check and vision check |
| Screen language | English, Chinese, Korean, Japanese | English, Chinese, Korean, Japanese |
| Board positioning | Board grip unit, front reference, auto conveyor width adjustment | Board grip unit, front reference, auto conveyor width adjustment |
| Component types | Max 90 types (8mm tape), 45 lanes x 2 | Max 180 types (8mm tape), 45 lanes x 4 |
| Transfer height | 900 +/- 20mm | 900 +/- 20mm |
| Machine dimensions, weight | L1250xD1750xH1420mm, Approx. 1,200kg | L1750xD1750xH1420mm, Approx. 1,500kg |
- *1 :
- Board thickness + Component height = Max 30mm
- Specifications and appearance are subject to change without prior notice.
Yamaha Wide-Range Compact Modular YC8 Mounter placement machine
Specifications
| YC8 | ||
|---|---|---|
| Applicable PCB | L50 x W50mm to L330 x W360mm *1 | |
| Mounting accuracy | When using Yamaha's standard components | Absolute accuracy (μ+3σ):+/-0.05mm /QFP Repeatability(3σ) +/-0.03mm /QFP |
| Mounting capability | Indication | 2.5sec/component (Cycle time from a pickup to mounting with recognition) |
| Applicable components | 4 x 4mm to 100 x 100mm *2 (Some components larger than 45 x 45mm ane conditional) Maximum components heights 45mm Maximum payload 1kg | |
| Component supply configuration: Number of component types | Tape reel : MAX. 28 types (8mm width) Tray : MAX. 15 trays Stick | |
| Power supply | 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz | |
| Air supply source | 0.45MPa or more, in clean, dry states | |
| External dimension (excluding projections) | L 880 x W1,440 x H1,445mm (Main unit only) L 880 x W1,755 x H1,500mm (When ATS15 is installed) | |
| Weight | Approx. 1,000kg (Main unit only) ATS15 : Approx. 120kg | |
- *1
- Please consult us separately for maximum board sizes.
- *2
- Consult us separately regarding component sizes outside the specifications.
- Specifications and appearance are subject to change without prior notice.
Panasonic NPM-W2 Multifunctional Mounter placement machine
Product Features of Panasonic NPM-W2 Multi-Function Mounter
1. Install & inspect a complete system to achieve efficient and high-quality production
To match the actual installation requirements, you can choose high-yield or high-precision mode
2. Can correspond to larger substrates and large components
Correspondingly, on a large substrate of 750×550 mm, the component range is also expanded to L150×W25×T30mm
3. Double-track installation (select specifications) to achieve high productivity per unit area
According to the production substrate, you can choose independent mounting, alternate mounting, mixed mounting and other mounting methods
Super High Efficiency Dual Lane Modular YRM20DL Mounter placement machine
Specifications
| Model | YRM20 | ||
|---|---|---|---|
| Super high-speed rotary RM head | High-speed general-purpose in-line HM head | Odd-shaped components in-line FM (flexible-multi) head | |
| Nozzles (per 1 head unit) | 18 | 10 | 5 |
| Applicable components | 0201mm to W12 x L12mm, Height 6.5mm or less | 0201mm to W55 x L100mm, Height 15mm or less | 03015mm to W55 x L100mm, Height 30mm or less |
| Mounting capability (under optimum conditions) | 120,000CPH Note 1 | 100,000CPH Note 1 | 35,000CPH |
| Mounting accuracy (under optimum conditions) | ±0.015mm Cpk≧1.0 Note 2 | ±0.035mm Cpk≧1.0 | |
| Number of component types | Feeder carriage exchange : Max. 128 types = 32 feeders x 4 (conversion for 8mm tape feeder) Fixed plate : Max. 128 types (conversion for 8mm tape feeder), Trays : 60 types (maximum when equipped with eATS30 x 2) | ||
| PCB dimensions | Single use : L50 x W50mm to L810 x W610mm Dual use : L50 x W50mm to L810 x W330mm | ||
| Power supply | 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz | ||
| Air supply source | 0.45MPa or more, in clean, dry state | ||
| External dimension (excluding projections) | L1,374 x W2,102 x H1,445mm | ||
| Weight | Approx. 2,550kg (Main unit only) | ||
Panasonic CM202 placement machine Mounter
Main parameters of CM202 placement machine:
2004 equipment
PCB size: 460mm×360mm
Component range that can be attached: 0201 to 24mmQFPS
Material station: 104
Theoretical placement speed: 0.088s/chip 40909 pieces/hour
Mounting accuracy: ±0.05mm
Dimensions and Weight: 2,350(L) X 1,950(D) X 1,430(H)mm&2,800kg
Power supply and air source: 3P/200V±10V/3KVa
Yamaha Ultra-High-Speed Modular Z:TA-R YSM40R Mounter placement machine
Specifications
| Z:TA-R YSM40R | ||
|---|---|---|
| 4-Beam, 4-Head Spec. (YSM40R-4) | ||
| Applicable PCB | L700×W460mm to L50×W50mm | |
| Mounting capability (under optimum conditions as defined by Yamaha Motor) | 200,000CPH (When using RS head) | |
| Applicable components | Ultra-High-Speed (RS) Head | 0201mm* to □6.5mm (Height 2.0mm or less) *option |
| Multi (MU) Head | 03015mm to 45×60mm (Height 15mm or less) | |
| Mounting accuracy (Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used) | +/-35μm (25μm) Cpk ≧1.0 (3σ) | |
| Number of component types * 8mm width tape conversion | Max. 80 feeders with RS heads Max. 88 feeders with MU heads Max. 84 feeders with RS x 2 + MU x 2 heads | |
| Power supply | 3-Phase AC 200/208/220/240/380/400/416V +/-10% | |
| Air supply source | 0.45MPa or more, in clean, dry state | |
| External dimension | L1,000×W2,100×H1,550mm (excluding projections) | |
| Weight | Approx. 2,100 kg | |
Panasonic Mounter CM602-L high-speed placement machine
Control mode: microcomputer mode
External memory: Manage data at PT∗4. Each set of data requires about 1MB. (1 type is required for each 1 type 3.5 2HD floppy disk)
Program data: Points Max. 10000 points
CM602 power supply
Power supply for normal use: 3-phase AC 200 V/ 220 V ±10 V, 3-phase AC 380 V/ 400 V/ 420 V/ 480 V ±20 V Frequency: 50/60 Hz
Power supply for HUB ∗ 3: Single-phase AC 100 V ~ AC 240 V Frequency: 50/60 Hz
Rated capacity: main machine 4.0 kVA / HUB power supply ∗ 3: 140 VA
Supply air pressure: 0.49 MPa ~ 0.78 MPa (operating air pressure is 0.49 MPa ~ 0.54 MPa)
Supply air volume: 170 L/min (A.N.R.)
Dimensions: 2350 mm (W) × 2690 mm (D) × 1430 mm (H) (excluding 3-section signal tower and color touch panel)
quality:
Mass of the main engine: 3400 kg (140 kg for the standard configuration without the overall exchange trolley)
Overall exchange trolley mass: 140 kg (per 1)
Direct tray feeder mass: 195 kg (per 1 unit)
Standard composition mass: 3960 kg (1 main engine, 4 overall exchange trolleys)
Environmental conditions: Temperature: 10°C ~ 35°C Humidity: 25% RH ~ 75% RH (but water vapor does not condense)
Transport and storage conditions: Temperature: −20°C ~ 60°C Humidity: Below 75 % RH (but water vapor does not condense)
Altitude: from 0 m above sea level to below 1000 m
Noise: < 70dB (A)
