3D AOISeries technical parameters
|
|||
| Function parameter |
ALD8710S
|
ALD8730S
|
ALD8730D
|
| Checked circuit board | Board inspection after SMT reflow oven | ||
| Detection method | 3D shape deep learning, TOC, Match, Short, IC, OCR, OCV, Location and other international leading algorithms, the system automatically sets its parameters according to different detection points | ||
| Camera | Ultra-high-speed intelligent digital industrial camera + telecentric lens | ||
| Resolution/View Range/Speed | Standard configuration: 14µm/Pixel FOV:56.00mm x 42.00mm Detection speed＜600ms/FOV Standard configuration: 10µm/Pixel FOV: 40.00mm x 30.00mm Detection speed＜600ms/FOV Standard configuration: 7µm/Pixel FOV: 28.00mm x 21.00mm Detection speed＜600ms/FOV |
||
| light source | 3D color LED light source + digital coded LED light source | ||
| programming mode | Gerber, CAD data import automatically corresponds to the component library | ||
| remote control | In the local area network, realize remote operation through TCP/IP network, perform operations such as viewing, starting or stopping machine operation, modifying programs, etc. | ||
| Detect coverage type | Missing parts, offsets, skews, tombstones, sideways, overturned parts, wrong parts, damage, reverse, component height measurement, warping, Poor appearance such as excessive tin, low tin, virtual soldering, short circuit, etc. |
||
| special function | Supports automatic program transfer, multi-board multi-program detection function, front and back side program detection function | ||
| SPC and Process Control | The test data is recorded and analyzed throughout the process, and the production status and quality analysis can be checked through remote control or remote monitoring in the local area network, and report formats such as Excel, Txt, and Word can be output | ||
| bar code system | Automatic barcode recognition (1D or 2D code) | ||
| server mode | Using a central data server, the data of several AOIs can be centrally and unifiedly managed | ||
| operating system | Windows 10 64-bit Enterprise Edition | ||
| check result output | 23.6-inch touch screen LCD monitor | ||
| System Specifications | |||
| PCB Size range | 50×50mm(Min)～450×500mm(Max) | 50×50mm(Min)～650×700mm(Max) | 50×50mm(Min)～650×330mm(Max) |
| dual track equipment | Track 1 is fixed, track 2, 3, and 4 are adjustable, the minimum size between tracks 2 and 3 is 50mm, and the maximum size of tracks 1 and 4 is 710mm; For single track: the maximum width of the track is 600mm; for double track: the maximum width of both tracks is 330mm (testable width); |
||
| PCB Thickness range | 0.2 to 5 mm | ||
| PCB Clamping system edge clearance | TOP：3 mm Bottom：3 mm | ||
| Maximum PCB weight | 3KG | ||
| PCB curvature | ＜5mm or 2% of PCB diagonal length | ||
| Clear height of PCB up and down | Single track: PCB top: 40 mm PCB bottom: 50 mm; double track: PCB top: 40 mm PCB bottom: 40 mm | ||
| Conveyor system | Bottom-up fixed, automatic compensation for PCB bending deformation, automatic board entry and exit, flat belt, automatic width adjustment | ||
| Conveyor height above the ground | 870 to 970mm | ||
| Conveyor flow direction | Single track: can be set to left → right right → left by pressing the button; double track: left → right right → left at the factory | ||
| X/Y platform driver | Screw rod and AC servo motor drive, PCB fixed, Camera moves in X/Y direction, passed CTQ certification | ||
| power supply | AC230V 50/60 Hz below 1.8KVA | ||
| Air pressure | 0.4～0.8 Mpa | ||
| Front and rear device communication | Smema | ||
| equipment weight | aroud 850KG | aroud 1050KG | aroud 1100KG |
| Equipment Dimensions | 1000mm*1340mm*1610mm (L*W*H) not including the height of signal lights | 1200mm*1540mm*1610mm (L*W*H) not including the height of signal lights | 1200mm*1540mm*1610mm (L*W*H) not including the height of signal lights |
| Environment temperature and humidity | 10～35℃ 35～80％ RH（no condensation） | ||
| Equipment Safety Regulations | Conforms to CE safety standards | ||
| Options | Support pin; SPC maintenance station; offline programming; external barcode reader; UPS | ||

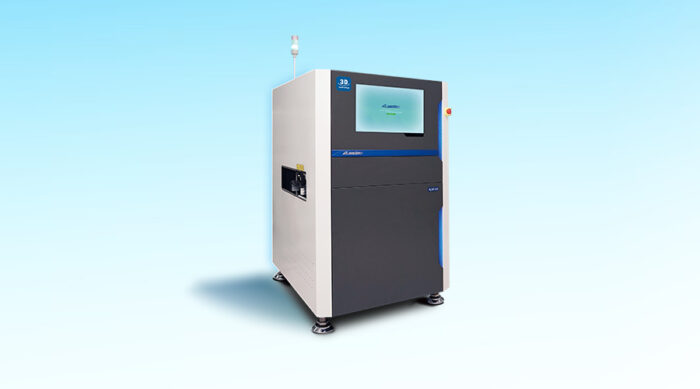

Aleader ALDALD87 series 3D INLINE AOI
Enquiry
Description
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products

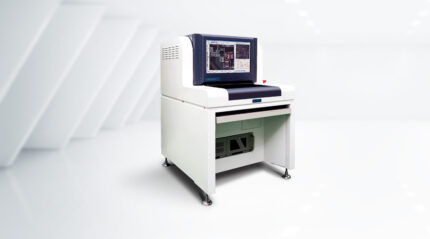

VCTA-Z5(X) Automatic optical inspection equipment（Off-line
