High-efficiency Modular Z:LEX YSM20WR Mounter placement machine
Specifications
| Model | YSM20WR |
|---|---|
| Applicable PCB | Dual lane Note 1 Same type PCBs: L810 x W356 to L50 x W50 Different type PCBs: up to L810 x W662 Note 2 Same type PCB: L810 x W280 to L50 x W500 Different type PCBs: up to L810 x W510 |
| Head / Applicable components | High-Speed Multi (HM) Head Note 3 0201mm to W55 x L100mm, Height 15mm or less Odd-shaped components (FM: Flexible Multi) head: 03015mm to W55 x L100mm, Height 28mm or less |
| Mounting capability (under optimum conditions as defined by Yamaha Motor) | X axis 2-beam Note 1: High-speed multi-purpose (HM: High-speed Multi) head x 2 81,000CPH |
| Mounting accuracy | ±0.035mm (±0.025mm) Cpk≧1.0 (3σ) (under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used) |
| Number of component Types | Fixed plate: Max. 140 types (conversion for 8mm tape feeder) Feeder carriage exchange: Max. 128 types (conversion for 8mm tape feeder) Trays for 30 types (Fixed type: max., when fitted with sATS30) and 10 types (Carriage type: max., when fitted with cATS10) |
| Power supply | 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz |
| Air supply source | 0.45MPa or more, in clean, dry state |
| External dimension (excluding projections) | L 1,374 x W 2,110 x H1,445mm (Main unit only) |
| Weight | Approx. 2,500kg (Main unit only) |
- Note 1 : When using conveyor separation specifications of 787mm between 1 to 4 lanes
- Note 2 : When using conveyor separation specifications of 630mm between 1 to 4 lanes
- Note 3 : Please contact us for info regarding mounting 0201mm components.
- Specifications and appearance are subject to change without prior notice.
Samsung Hanwha High Speed Mounter DECANS2
Specifications
- Alignment
- Fly Camera, Fix Camera
- Spindle & Speed
- 2 Gantry * 10 Spindle / 92,000 CPH
- Accuracy
- ±28 μm @ Cpk ≥ 1.0 (03015 Chip) / ±25 μm @ Cpk ≥ 1.0(IC)
- Component Range
- Fly: 03015 ~ □12 mm / Fix: ~□42 mm (Standard) / ~□55 mm (MFOV) / ~ L75 mm Connector (MFOV)
- Dimension
- L 1,430 x D 1,740 x H 1,995

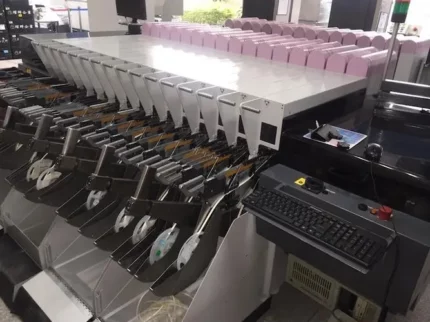

Panasonic Mounter CM402-L Modular Super High Speed placement machine
Model name: CM402-L
Substrate size: L50mm×W50mm～L510mm×W460mm
Substrate replacement time: 0.9s (when the substrate length is below 240mm and under the best conditions)
Power supply*1: three-phase AC200V, 3.5kVA
Air pressure source*2: 0.49MPa, 150L/min (A.N.R.)
Equipment size: W2350mm×D2690mm×H1430mm*3
Weight*4: 3000kg
High-speed placement head
Mounting fastest speed: 0.06s/chip (Type A)
Mounting accuracy: ±50μm/chip (Cpk≧1)
Component size: 0603 chip~L24mm×W24mm
Multifunctional placement head
Mounting fastest speed: 0.21s/QFP (Type B)
Mounting accuracy: ±35μm/QFP (Cpk≧1)
Component size: 0603 chip~L100mm×W90mm
Hanwha High Speed General Mounter DECAN L2
Specifications
- Alignment
- Fly Camera, Fix Camera
- Spindle & Speed
- 2 Gantry * 6 Spindle / 56,000 CPH
- Accuracy
- ±40µm Cpk≥1.0 (0402 (01005 inch) chip) /±30µm Cpk≥1.0 (IC, Stage Vision)
- Component Range
- Fly: 0402 ~ □21 mm / Fix: ~□42 mm (Standard) / ~□55 mm (MFOV) / ~ L75 mm Connector (MFOV)
- Dimension
- L 1,430 x D 1,740 x H 1,995
Yamaha Wide-Range Compact Modular YC8 Mounter placement machine
Specifications
| YC8 | ||
|---|---|---|
| Applicable PCB | L50 x W50mm to L330 x W360mm *1 | |
| Mounting accuracy | When using Yamaha's standard components | Absolute accuracy (μ+3σ):+/-0.05mm /QFP Repeatability(3σ) +/-0.03mm /QFP |
| Mounting capability | Indication | 2.5sec/component (Cycle time from a pickup to mounting with recognition) |
| Applicable components | 4 x 4mm to 100 x 100mm *2 (Some components larger than 45 x 45mm ane conditional) Maximum components heights 45mm Maximum payload 1kg | |
| Component supply configuration: Number of component types | Tape reel : MAX. 28 types (8mm width) Tray : MAX. 15 trays Stick | |
| Power supply | 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz | |
| Air supply source | 0.45MPa or more, in clean, dry states | |
| External dimension (excluding projections) | L 880 x W1,440 x H1,445mm (Main unit only) L 880 x W1,755 x H1,500mm (When ATS15 is installed) | |
| Weight | Approx. 1,000kg (Main unit only) ATS15 : Approx. 120kg | |
- *1
- Please consult us separately for maximum board sizes.
- *2
- Consult us separately regarding component sizes outside the specifications.
- Specifications and appearance are subject to change without prior notice.
Panasonic CM202 placement machine Mounter
Main parameters of CM202 placement machine:
2004 equipment
PCB size: 460mm×360mm
Component range that can be attached: 0201 to 24mmQFPS
Material station: 104
Theoretical placement speed: 0.088s/chip 40909 pieces/hour
Mounting accuracy: ±0.05mm
Dimensions and Weight: 2,350(L) X 1,950(D) X 1,430(H)mm&2,800kg
Power supply and air source: 3P/200V±10V/3KVa
Super High Efficiency Dual Lane Modular YRM20DL Mounter placement machine
Specifications
| Model | YRM20 | ||
|---|---|---|---|
| Super high-speed rotary RM head | High-speed general-purpose in-line HM head | Odd-shaped components in-line FM (flexible-multi) head | |
| Nozzles (per 1 head unit) | 18 | 10 | 5 |
| Applicable components | 0201mm to W12 x L12mm, Height 6.5mm or less | 0201mm to W55 x L100mm, Height 15mm or less | 03015mm to W55 x L100mm, Height 30mm or less |
| Mounting capability (under optimum conditions) | 120,000CPH Note 1 | 100,000CPH Note 1 | 35,000CPH |
| Mounting accuracy (under optimum conditions) | ±0.015mm Cpk≧1.0 Note 2 | ±0.035mm Cpk≧1.0 | |
| Number of component types | Feeder carriage exchange : Max. 128 types = 32 feeders x 4 (conversion for 8mm tape feeder) Fixed plate : Max. 128 types (conversion for 8mm tape feeder), Trays : 60 types (maximum when equipped with eATS30 x 2) | ||
| PCB dimensions | Single use : L50 x W50mm to L810 x W610mm Dual use : L50 x W50mm to L810 x W330mm | ||
| Power supply | 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz | ||
| Air supply source | 0.45MPa or more, in clean, dry state | ||
| External dimension (excluding projections) | L1,374 x W2,102 x H1,445mm | ||
| Weight | Approx. 2,550kg (Main unit only) | ||

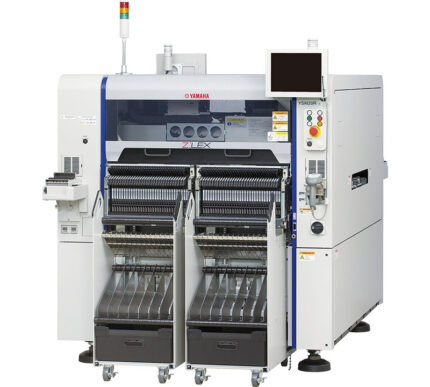

Yamaha High-efficiency Modular Z:LEX YSM20R Mounter placement machine
Specifications
| Model | YSM20R |
|---|---|
| Applicable PCB | Single lane L810 x W490 to L50 x W50 Dual stage Note: For X-axis 2-beam option only 1PCB conveyance: L810 x W490 to L50 x W50 2PCB conveyance: L380 x W490 to L50 x W50 |
| Head / Applicable components | High-Speed Multi (HM) Head * 0201mm to W55 x L100mm, Height 15mm or less Odd-shaped components (FM: Flexible Multi) head: 03015mm to W55 x L100mm, Height 28mm or less |
| Mounting capability (under optimum conditions as defined by Yamaha Motor) | X axis 2-beam: High-speed multi-purpose (HM: High-speed Multi) head x 2 95,000CPH |
| Mounting accuracy | ±0.035mm (±0.025mm) Cpk≧1.0 (3σ) (under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used) |
| Number of component Types | Fixed plate: Max. 140 types (conversion for 8mm tape feeder) Feeder carriage exchange: Max. 128 types (conversion for 8mm tape feeder) Trays for 30 types (Fixed type: max., when fitted with sATS30) and 10 types (Carriage type: max., when fitted with cATS10) |
| Power supply | 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz |
| Air supply source | 0.45MPa or more, in clean, dry state |
| External dimension (excluding projections) | L 1,374 x W 1,857 x H1,445mm (Main unit only) |
| Weight | Approx. 2,050kg (Main unit only) |
