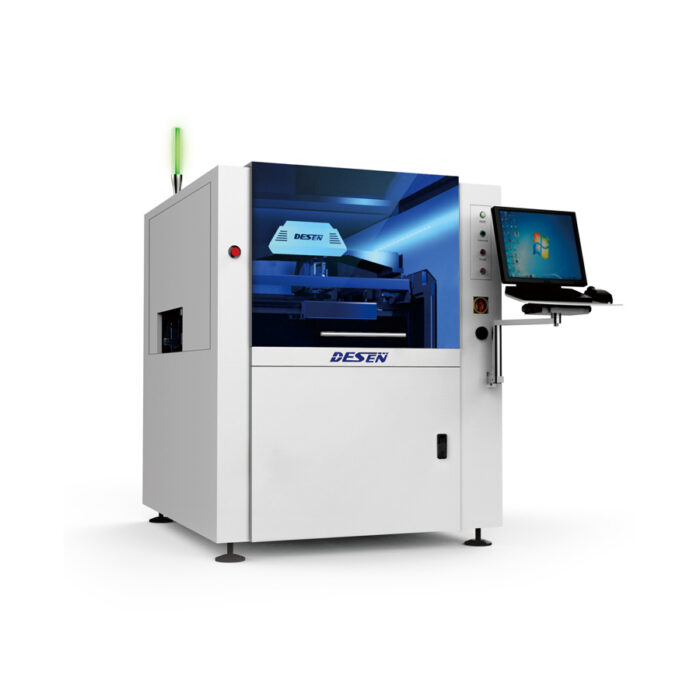

Classic1008 全自动视觉锡膏印刷机的技术参数一览
List of technical parameters of automatic visual solder paste printing machine
| 制程参数 Process Parameters | 规 格 Specification | ||||||
| 印刷精度 Printing Accuracy | ≥2 Cpk@±23μm@,6σ | ||||||
| 重复定位精度 Repeat Position Accuracy |
≥2 Cpk@±10μm@,6σ | ||||||
| 循环时间 Cycle Time | 7s | ||||||
| 网框尺寸 Screen Frame Size | 470mm x 370mm~737mm x 737mm | ||||||
| 网框厚度 Screen Frame Thickness | 20mm – 40mm | ||||||
| 最小基板尺寸 Substrate Handling Size (minimum) | 50mm (X) x 50mm (Y) | ||||||
| 最大基板尺寸 Substrate Handling Size (maximum) | 400mm (X) x340mm (Y)， | ||||||
| 基板厚度 Substrate Thickness | 0.4mm – 6mm | ||||||
| 刮刀压力 Print Pressure | 0kg – 10kg | ||||||
| 印刷速度 Print Speed | 1mm/sec – 200mm/sec | ||||||
| 印刷间隙 Print Gap | 0mm – 20mm | ||||||
| 智能传输系统 Transfer System | 规 格 Specification | ||||||
| 宽度调整 Width Adjustment | 程式自动轨道调宽 Programmable motorized rear rail | ||||||
| 运输方向 Transport Direction | L→R,L→L，R→L，R→R | ||||||
| 基板重量 Substrate Weight | ≤3kg | ||||||
| 基板翘曲量 Substrate Warpage | ≤对角线1% ≤1%Diagonal | ||||||
| 基板固定 Substrate Fixture | 柔性侧夹 Flexible side clamp | ||||||
| 过板高度 Board Height | ≤18mm | ||||||
| 传输高度 Transport Height | 900±40mm | ||||||
| 清洗结构cleaning structure | 湿洗+干洗+真空自由组合Wet cleaning + dry cleaning + vacuum free combination | ||||||
| 设备尺寸 Approximate Dimensions | 1140 L（长）X1365 W（宽）X1510 H（高）mm | ||||||
| 设备重量 Approximate Weight | 1300kg含包装(设备本身+配置选项)Package included (device itself + configuration options) 1100kg不含包装(设备本身+配置选项)No packaging (device itself + configuration options) |
||||||
