Home Shop SMT placement machine ETON HT-XF High Speed Mounter Pick&Place machine
ETON HT-F7 High Speed Pick&Place machine
Back to products
ETON T9 wireless magnetic levitation ultra-high speed placement machine Pick&Place machine

ETON HT-XF High Speed Mounter Pick&Place machine

Enquiry
Category: SMT placement machine
Share:
  • Description
  • Shipping & Delivery
Description

Suitable for one-time placement of 0.6, 0.9, 1.2m LED hard light boards, 0.5, 1m LED flexible light strip placement

The paste head is divided into left and right groups, each group has 17  nozzles, A and B materials can be pasted at the same time, a single reel can be pasted separately, and the same reel is always mounted on the same light bar

Capacity: up to 150,000 component

Shipping & Delivery
wd-ship-1
wd-ship-2

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

  • Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
  • Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
  • Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

Reviews

There are no reviews yet.

Be the first to review “ETON HT-XF High Speed Mounter Pick&Place machine” Cancel reply

Your email address will not be published. Required fields are marked *

Related products

Yamaha Wide-Range Compact Modular YC8 Mounter placement machine

SMT placement machine, Yamaha

Specifications

YC8
Applicable PCB L50 x W50mm to L330 x W360mm *1
Mounting accuracy When using Yamaha's standard components Absolute accuracy (μ+3σ):+/-0.05mm /QFP Repeatability(3σ) +/-0.03mm /QFP
Mounting capability Indication 2.5sec/component (Cycle time from a pickup to mounting with recognition)
Applicable components 4 x 4mm to 100 x 100mm *2 (Some components larger than 45 x 45mm ane conditional) Maximum components heights 45mm Maximum payload 1kg
Component supply configuration: Number of component types Tape reel : MAX. 28 types (8mm width) Tray : MAX. 15 trays Stick
Power supply 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source 0.45MPa or more, in clean, dry states
External dimension (excluding projections) L 880 x W1,440 x H1,445mm (Main unit only) L 880 x W1,755 x H1,500mm (When ATS15 is installed)
Weight Approx. 1,000kg (Main unit only) ATS15 : Approx. 120kg
*1
Please consult us separately for maximum board sizes.
*2
Consult us separately regarding component sizes outside the specifications.
Specifications and appearance are subject to change without prior notice.
Enquiry

SMT placement machine Samsung placement machine SM471Plus

SMT placement machine, Samsung Hanwha
High-performance chip shooter with a new fly camera · World's highest speed of 78,000CPH among chip shooters of the same class · With two gantry dual-lane construction, supports various production modes

Specifications

Alignment
Fly Camera
Spindle & Speed
2 Gantry * 10 Spindle / 78,000 CPH
Accuracy
±40μm@±3σ (Chip) / ±50μm@±3σ (QFP)
Component Range
0402 ~ □14mm
Dimension
L 1,650 x D 1,690 x H 2,045
Enquiry

Panasonic Mounter CM602-L high-speed placement machine

SMT placement machine, Panasonic
Control mode: microcomputer mode External memory: Manage data at PT∗4. Each set of data requires about 1MB. (1 type is required for each 1 type 3.5 2HD floppy disk) Program data: Points Max. 10000 points CM602 power supply Power supply for normal use: 3-phase AC 200 V/ 220 V ±10 V, 3-phase AC 380 V/ 400 V/ 420 V/ 480 V ±20 V Frequency: 50/60 Hz Power supply for HUB ∗ 3: Single-phase AC 100 V ~ AC 240 V Frequency: 50/60 Hz Rated capacity: main machine 4.0 kVA / HUB power supply ∗ 3: 140 VA Supply air pressure: 0.49 MPa ~ 0.78 MPa (operating air pressure is 0.49 MPa ~ 0.54 MPa) Supply air volume: 170 L/min (A.N.R.) Dimensions: 2350 mm (W) × 2690 mm (D) × 1430 mm (H) (excluding 3-section signal tower and color touch panel) quality: Mass of the main engine: 3400 kg (140 kg for the standard configuration without the overall exchange trolley) Overall exchange trolley mass: 140 kg (per 1) Direct tray feeder mass: 195 kg (per 1 unit) Standard composition mass: 3960 kg (1 main engine, 4 overall exchange trolleys) Environmental conditions: Temperature: 10°C ~ 35°C Humidity: 25% RH ~ 75% RH (but water vapor does not condense) Transport and storage conditions: Temperature: −20°C ~ 60°C Humidity: Below 75 % RH (but water vapor does not condense) Altitude: from 0 m above sea level to below 1000 m Noise: < 70dB (A)
Enquiry

Panasonic Mounter NPM-TT2 multifunctional production system placement machine

SMT placement machine, Panasonic
The Panasonic Mounter NPM-TT2 is a line configuration capable of achieving both high productivity per unit area and versatility *When directly connecting the NPM-W2, an M-size double-track conveyor belt (optional) is required. The placement head (8-nozzle placement head, 3-nozzle placement head - you can choose the general-purpose 8-nozzle placement head or the 3-nozzle placement head with special-shaped component capability) The specification of the supply part can be selected .change. By reorganizing the tray feeder/exchange trolley, the line configuration can be adapted to the component supply form. Using a multi-functional recognition camera, the recognition and inspection of the height direction of the components can be realized at a high speed, and it can carry out stable and high-speed mounting of special-shaped components) Alternate mounting and independent mounting correspondence ——(can choose the best mounting method corresponding to the production substrate)
Enquiry

SMT placement machine SIPLACE ASM Siemens D4/D3/D2/D1 high-speed placement machine

SMT placement machine, ASM SIEMENS
ASM Siemens high-speed placement machine D4 technical data: Performance Theoretical value up to 81,500CPH IPC value up to 57,000CPH Accuracy
Enquiry

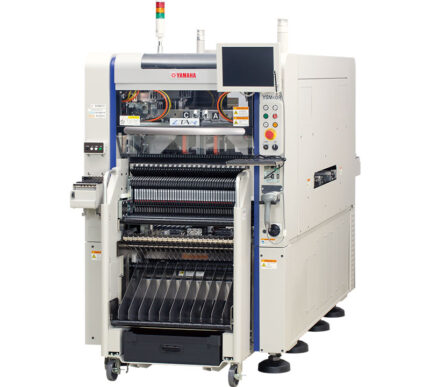

Yamaha Ultra-High-Speed Modular Z:TA-R YSM40R Mounter placement machine

SMT placement machine, Yamaha

Specifications

Z:TA-R YSM40R
4-Beam, 4-Head Spec. (YSM40R-4)
Applicable PCB L700×W460mm to L50×W50mm
Mounting capability (under optimum conditions as defined by Yamaha Motor) 200,000CPH (When using RS head)
Applicable components Ultra-High-Speed (RS) Head 0201mm* to □6.5mm (Height 2.0mm or less) *option
Multi (MU) Head 03015mm to 45×60mm (Height 15mm or less)
Mounting accuracy (Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used) +/-35μm (25μm) Cpk ≧1.0 (3σ)
Number of component types * 8mm width tape conversion Max. 80 feeders with RS heads Max. 88 feeders with MU heads Max. 84 feeders with RS x 2 + MU x 2 heads
Power supply 3-Phase AC 200/208/220/240/380/400/416V +/-10%
Air supply source 0.45MPa or more, in clean, dry state
External dimension L1,000×W2,100×H1,550mm (excluding projections)
Weight Approx. 2,100 kg
Enquiry

Panasonic Mounter CM402-L Modular Super High Speed placement machine

SMT placement machine, Panasonic
Model name: CM402-L Substrate size: L50mm×W50mm~L510mm×W460mm Substrate replacement time: 0.9s (when the substrate length is below 240mm and under the best conditions) Power supply*1: three-phase AC200V, 3.5kVA Air pressure source*2: 0.49MPa, 150L/min (A.N.R.) Equipment size: W2350mm×D2690mm×H1430mm*3 Weight*4: 3000kg   High-speed placement head Mounting fastest speed: 0.06s/chip (Type A) Mounting accuracy: ±50μm/chip (Cpk≧1) Component size: 0603 chip~L24mm×W24mm   Multifunctional placement head Mounting fastest speed: 0.21s/QFP (Type B) Mounting accuracy: ±35μm/QFP (Cpk≧1) Component size: 0603 chip~L100mm×W90mm
Enquiry

Hanwha High Speed ​​General Mounter DECAN L2

SMT placement machine, Samsung Hanwha

Specifications

Alignment
Fly Camera, Fix Camera
Spindle & Speed
2 Gantry * 6 Spindle / 56,000 CPH
Accuracy
±40µm Cpk≥1.0 (0402 (01005 inch) chip) /±30µm Cpk≥1.0 (IC, Stage Vision)
Component Range
Fly: 0402 ~ □21 mm / Fix: ~□42 mm (Standard) / ~□55 mm (MFOV) / ~ L75 mm Connector (MFOV)
Dimension
L 1,430 x D 1,740 x H 1,995
Enquiry
