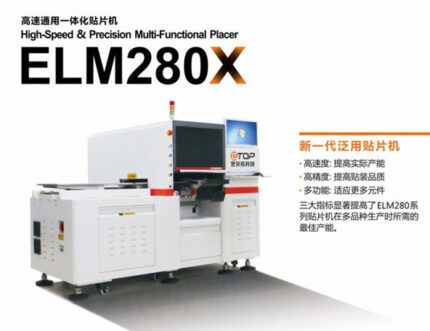

ETOP ELM280A placement machine high speed Pick&Place machine

Product Description

Online general-purpose placement machine

ELM280A is an online fully automatic surface mount equipment developed for applications in electronics, lighting, drives and other fields

Since the launch of the ELM series in 2013, the sales volume has exceeded one thousand so far. The ELM280 series has become the best-selling product among the domestic placement machines. The past generations of placement machines can make customers deeply feel the exquisite technology and excellence of ETOP Technology. Products And service is deeply loved by customers all over the country.

Adopting ETOP’s unique flight image recognition technology, it has obvious advantages in light weight at the core of the patch system, with reliable and durable functions, and simplified appearance design, which is suitable for various types of circuit boards and substrates. Equipped with self-developed Chinese operating software to ensure the system is stable and reliable. The placement machine is designed for mixed placement applications of LED, SMD, IC, lens and other products. The orbital mobile platform is designed with a fixed width of 410mm and is more widely used. Yibeituo Technology has established an extensive support and service network in China to provide complete surface mount solutions for customers’ development, manufacturing and product innovation.

Orbital type: improve the automation of placement
Multi-site: configure more components and quantity
Versatility: mount all kinds of LED and SMD
As an online placement machine of the ELM280 series, it can provide optimal placement solutions and automation convenience for various components

Enquiry

As an online placement machine of the ELM280 series, it can provide optimal placement solutions and automation convenience for various components

	Specifications	Product Specifications
PCB	Size	(L)1200 x (W)410mm- (L)30 x (W)30mm
	PCB thickness	0.3mm~4.0mm
	PCB positioning method	Mark visual positioning
	PCB transport direction	Left in –> right out (near side standard)
	PCB replacement time-consuming	10 seconds (best condition)
Placing	theoretical Placing speed	45,000 CPH
	Average placement speed	30,000~36,000 CPH
	Placing accuracy	±0.05mm
	Mounting type	LED/SMD/IC/terminal/transistor etc.
	Component identification	Flight photo image recognition technology
	Type of head	6 nozzle
	Feeder quantity	8mm、12mm、16mm、stick feeder
Operation Sysstem	degree of automation	Fully automatic control
	main operating system	Windows7 system
	Control System	industrial computer
	Drive System	AC servo motor
	Detection Systems	Image detection system
	visual system	flight vision system
working environment	Working power	Single phase AC200 ~ 415 V
	Air pressure	80 psi(0.5 Mpa)
	dimension	(L)2500 x (W)1500 x (H)1750 mm
	weight	around 1200kg
