FUJI XP142E mounter placement pick and palce machine
Back to products

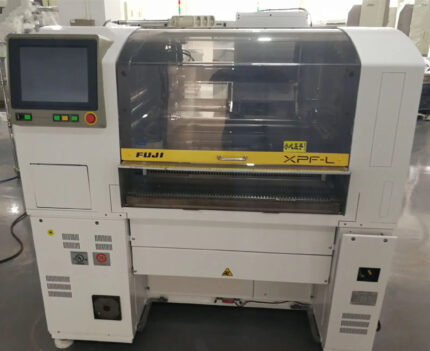

FUJI XPF-L mounter placement pick and palce machine

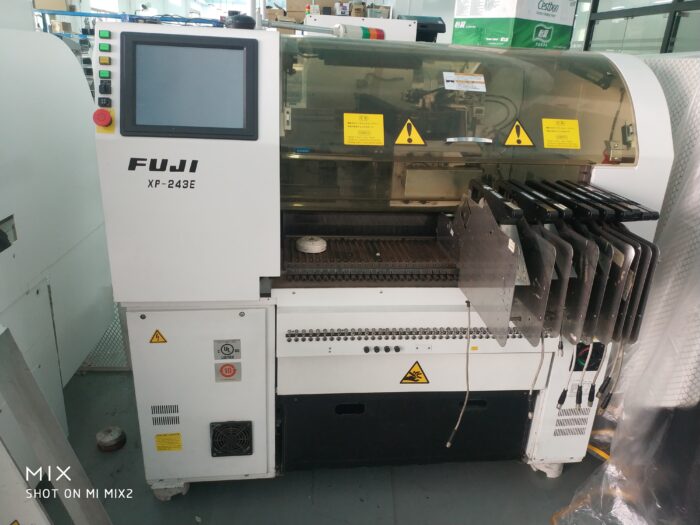

FUJI XP243E mounter placement pick and palce machine

Enquiry
Categories: ,
Description

Product features: Fuji/Fuji multi-function placement machine XP243E PCB size: X 80 mm /Y50 mm —X508mm/Y457mm Component range: 0201-5*4mm Number of material stations: 100 Theoretical placement speed: 0.168sec/ One hour 21428 point placement accuracy: ±0.0

FUJI Fuji XP243E multi-function placement machine specific parameters:
1. Mounting accuracy: ±0.04mm/chipIC, 0.03s/QFP IC
2. SMD range: 0603-45x150mm, parts below 25.4mm in height
3. SMT speed: 0.43s/chipIC, 0.56s/QFP IC
4. Rack support: front and rear feeding, 40 stations on the front side, two choices on the rear side: 10 types of 10 layers and 20 types of 10 layers
5. Applicable substrate: maximum 457x356mm, minimum 50x50mm, thickness 0.3-4mm
6. Language support: Chinese, English, Japanese
7. Program editing: support both online programming and offline programming
8. Machine size: L1500mm, W1500mm, H1537mm (excluding signal towers)
9. Machine weight: 2000KG

Shipping & Delivery

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

  • Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
  • Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
  • Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

Reviews

There are no reviews yet.

Be the first to review “FUJI XP243E mounter placement pick and palce machine”

Your email address will not be published. Required fields are marked *

Related products

Panasonic CM202 placement machine Mounter

,
Main parameters of CM202 placement machine: 2004 equipment PCB size: 460mm×360mm Component range that can be attached: 0201 to 24mmQFPS Material station: 104 Theoretical placement speed: 0.088s/chip 40909 pieces/hour Mounting accuracy: ±0.05mm Dimensions and Weight: 2,350(L) X 1,950(D) X 1,430(H)mm&2,800kg Power supply and air source: 3P/200V±10V/3KVa
Enquiry

Panasonic NPM-D3 placement machine Panasonic high-speed module placement machine

,
1. Panasonic NPM-D3 placement machine, Panasonic placement machine NPM-D3, Panasonic high-speed module placement machine parameters: 1. Model name: NPM-D3 (Panasonic
Enquiry

SMT placement machine Panasonic/Panasonic BM231 placement machine

,
Panasonic's BM231 modular high-speed multi-function placement machine has any volume, any mix capability by placing various components from 0402 (01005) microchips to BGAs, CSPs and connectors. Maximum productivity is achieved through uninterrupted operation and quick changeovers.
Enquiry

Yamaha Premium High-efficiency Modular YRM20 Mounter placement machine

,

Specifications

Model YRM20
Super high-speed rotary RM head High-speed general-purpose in-line HM head Odd-shaped components in-line FM (flexible-multi) head
Nozzles (per 1 head unit) 18 10 5
Applicable components 0201mm to W12 x L12mm, Height 6.5mm or less 0201mm to W55 x L100mm, Height 15mm or less 03015mm to W55 x L100mm, Height 30mm or less
Mounting capability under optimum conditions (in high production mode) 2-beam : 115,000CPH (under optimum conditions) 1-beam : 57,500CPH (under optimum conditions) 2-beam : 98,000CPH (under optimum conditions) 1-beam : 49,000CPH (under optimum conditions) 2-beam : 35,000CPH (under optimum conditions) 1-beam : 17,500CPH (under optimum conditions)
Mounting accuracy (high-accuracy mode) ±0.025mm Cpk≧1.0 (under optimum conditions) ±0.035mm Cpk≧1.0 (under optimum conditions)
Number of component types Feeder carriage exchange : Max. 128 types = 32 feeders x 4 (conversion for 8mm tape feeder) Fixed plate : Max. 128 types (conversion for 8mm tape feeder), Trays : 60 types (maximum when equipped with eATS30 x 2)
PCB dimensions 1-beam : (Single lane) Standard specifications : L50 x W50mm to L510 x W510mm, option : L50 x W50mm to L810 x W510mm 2-beam : (Dual stage) 1-PCB conveyance : L50 x W50mm to L810 x W510mm, 2-PCB conveyance : L50 x W50mm to L380 x W510mm
Power supply 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source 0.45MPa or more, in clean, dry state
External dimension (excluding projections) L1,374 x W1,948 x H1,445mm
Weight 2-beam : Approx. 2,250kg (Main unit only), 1-beam : Approx. 2,150kg (Main unit only)
Enquiry

SMT Samsung Mounter SM481Plus 481

,

Specifications

Alignment
Fly Camera + Fix Camera (Option)
Spindle & Speed
1 Gantry * 10 Spindle / 40,000 CPH
Accuracy
±40μm@±3σ (Chip) / ±30μm@±3σ(QFP)
Component Range
Fly: 0402 ~ □16mm / Fix: ~□55mm, L75mm Connector
Dimension
L 1,650 x D 1,680 x H 2,090
σ/QFP
Enquiry

Yamaha 3D Hybrid Modular S10/S20 Mounter placement machine

,

Specifications

S10 S20
Board size(with buffer unused) Min. L50 x W30mm to Max. L1,330 x W510mm (Standard L955) Min. L50 x W30mm to Max. L1,830 x W510mm (Standard L1,455)
Board size(with input or output buffer used) Min. L50 x W30mm to Max. L420 x W510mm -
Board size(with input and output buffers used) Min. L50 x W30mm to Max. L330 x W510mm Min. L50 x W30mm to Max. L540 x W510mm
Board thickness 0.4 - 4.8mm 0.4 - 4.8mm
Board flow direction Left to right (Std) Left to right (Std)
Board transfer speed Max 900mm/sec Max 900mm/sec
Placement speed (12 heads + 2 theta) Opt. Cond. 0.08sec/CHIP (45,000CPH) 0.08sec/CHIP (45,000CPH)
Placement accuracy A (μ+3σ) CHIP +/-0.040mm CHIP +/-0.040mm
Placement accuracy B (μ+3σ) IC +/-0.025mm IC +/-0.025mm
Placement angle +/-180 degrees +/-180 degrees
Z axis control / Theta axis control AC servo motor AC servo motor
Component height Max 30mm*1 (Pre-placed components: max 25mm) Max 30mm*1 (Pre-placed components: max 25mm)
Applicable components 0201mm – 120x90mm, BGA, CSP, connector, etc. (Standard 01005 -) 0201mm – 120x90mm, BGA, CSP, connector, etc. (Standard 01005 -)
Component package 8 - 56mm tape (F1/F2 Feeders), 8 - 88mm tape (F3 Electric Feeders), stick, tray 8 - 56mm tape (F1/F2 Feeders), 8 - 88mm tape (F3 Electric Feeders), stick, tray
Drawback check Vacuum check and vision check Vacuum check and vision check
Screen language English, Chinese, Korean, Japanese English, Chinese, Korean, Japanese
Board positioning Board grip unit, front reference, auto conveyor width adjustment Board grip unit, front reference, auto conveyor width adjustment
Component types Max 90 types (8mm tape), 45 lanes x 2 Max 180 types (8mm tape), 45 lanes x 4
Transfer height 900 +/- 20mm 900 +/- 20mm
Machine dimensions, weight L1250xD1750xH1420mm, Approx. 1,200kg L1750xD1750xH1420mm, Approx. 1,500kg
*1 :
Board thickness + Component height = Max 30mm
Specifications and appearance are subject to change without prior notice.
Enquiry

Yamaha Ultra-High-Speed Modular Z:TA-R YSM40R Mounter placement machine

,

Specifications

Z:TA-R YSM40R
4-Beam, 4-Head Spec. (YSM40R-4)
Applicable PCB L700×W460mm to L50×W50mm
Mounting capability (under optimum conditions as defined by Yamaha Motor) 200,000CPH (When using RS head)
Applicable components Ultra-High-Speed (RS) Head 0201mm* to □6.5mm (Height 2.0mm or less) *option
Multi (MU) Head 03015mm to 45×60mm (Height 15mm or less)
Mounting accuracy (Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used) +/-35μm (25μm) Cpk ≧1.0 (3σ)
Number of component types * 8mm width tape conversion Max. 80 feeders with RS heads Max. 88 feeders with MU heads Max. 84 feeders with RS x 2 + MU x 2 heads
Power supply 3-Phase AC 200/208/220/240/380/400/416V +/-10%
Air supply source 0.45MPa or more, in clean, dry state
External dimension L1,000×W2,100×H1,550mm (excluding projections)
Weight Approx. 2,100 kg
Enquiry

Yamaha Wide-Range Compact Modular YC8 Mounter placement machine

,

Specifications

YC8
Applicable PCB L50 x W50mm to L330 x W360mm *1
Mounting accuracy When using Yamaha's standard components Absolute accuracy (μ+3σ):+/-0.05mm /QFP Repeatability(3σ) +/-0.03mm /QFP
Mounting capability Indication 2.5sec/component (Cycle time from a pickup to mounting with recognition)
Applicable components 4 x 4mm to 100 x 100mm *2 (Some components larger than 45 x 45mm ane conditional) Maximum components heights 45mm Maximum payload 1kg
Component supply configuration: Number of component types Tape reel : MAX. 28 types (8mm width) Tray : MAX. 15 trays Stick
Power supply 3-Phase AC 200/208/220/240/380/400/416V　+/-10%　50/60Hz
Air supply source 0.45MPa or more, in clean, dry states
External dimension (excluding projections) L 880 x W1,440 x H1,445mm (Main unit only) L 880 x W1,755 x H1,500mm (When ATS15 is installed)
Weight Approx. 1,000kg (Main unit only) ATS15 : Approx. 120kg
*1
Please consult us separately for maximum board sizes.
*2
Consult us separately regarding component sizes outside the specifications.
Specifications and appearance are subject to change without prior notice.
Enquiry
