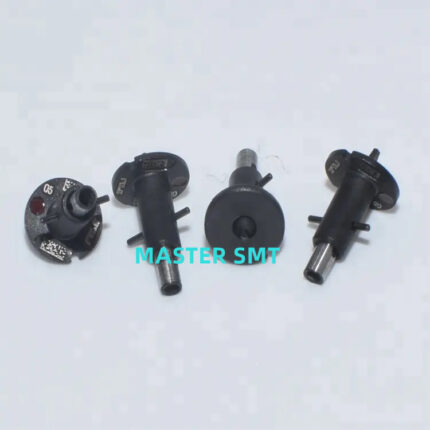

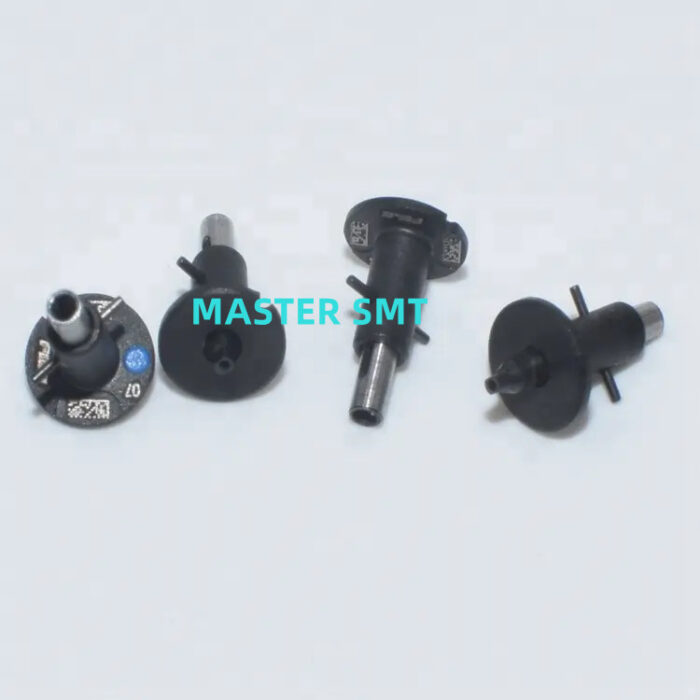

H24 Head 0.7mm Nozzle FUJI NXT SMT Pick and place Machine
Description
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
Yamaha Ultra-High-Speed Modular Z:TA-R YSM40R Mounter placement machine
Specifications
| Z:TA-R YSM40R | ||
|---|---|---|
| 4-Beam, 4-Head Spec. (YSM40R-4) | ||
| Applicable PCB | L700×W460mm to L50×W50mm | |
| Mounting capability (under optimum conditions as defined by Yamaha Motor) | 200,000CPH (When using RS head) | |
| Applicable components | Ultra-High-Speed (RS) Head | 0201mm* to □6.5mm (Height 2.0mm or less) *option |
| Multi (MU) Head | 03015mm to 45×60mm (Height 15mm or less) | |
| Mounting accuracy (Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used) | +/-35μm (25μm) Cpk ≧1.0 (3σ) | |
| Number of component types * 8mm width tape conversion | Max. 80 feeders with RS heads Max. 88 feeders with MU heads Max. 84 feeders with RS x 2 + MU x 2 heads | |
| Power supply | 3-Phase AC 200/208/220/240/380/400/416V +/-10% | |
| Air supply source | 0.45MPa or more, in clean, dry state | |
| External dimension | L1,000×W2,100×H1,550mm (excluding projections) | |
| Weight | Approx. 2,100 kg | |
Yamaha 3D Hybrid Modular S10/S20 Mounter placement machine
Specifications
| S10 | S20 | |
|---|---|---|
| Board size(with buffer unused) | Min. L50 x W30mm to Max. L1,330 x W510mm (Standard L955) | Min. L50 x W30mm to Max. L1,830 x W510mm (Standard L1,455) |
| Board size(with input or output buffer used) | Min. L50 x W30mm to Max. L420 x W510mm | - |
| Board size(with input and output buffers used) | Min. L50 x W30mm to Max. L330 x W510mm | Min. L50 x W30mm to Max. L540 x W510mm |
| Board thickness | 0.4 - 4.8mm | 0.4 - 4.8mm |
| Board flow direction | Left to right (Std) | Left to right (Std) |
| Board transfer speed | Max 900mm/sec | Max 900mm/sec |
| Placement speed (12 heads + 2 theta) Opt. Cond. | 0.08sec/CHIP (45,000CPH) | 0.08sec/CHIP (45,000CPH) |
| Placement accuracy A (μ+3σ) | CHIP +/-0.040mm | CHIP +/-0.040mm |
| Placement accuracy B (μ+3σ) | IC +/-0.025mm | IC +/-0.025mm |
| Placement angle | +/-180 degrees | +/-180 degrees |
| Z axis control / Theta axis control | AC servo motor | AC servo motor |
| Component height | Max 30mm*1 (Pre-placed components: max 25mm) | Max 30mm*1 (Pre-placed components: max 25mm) |
| Applicable components | 0201mm – 120x90mm, BGA, CSP, connector, etc. (Standard 01005 -) | 0201mm – 120x90mm, BGA, CSP, connector, etc. (Standard 01005 -) |
| Component package | 8 - 56mm tape (F1/F2 Feeders), 8 - 88mm tape (F3 Electric Feeders), stick, tray | 8 - 56mm tape (F1/F2 Feeders), 8 - 88mm tape (F3 Electric Feeders), stick, tray |
| Drawback check | Vacuum check and vision check | Vacuum check and vision check |
| Screen language | English, Chinese, Korean, Japanese | English, Chinese, Korean, Japanese |
| Board positioning | Board grip unit, front reference, auto conveyor width adjustment | Board grip unit, front reference, auto conveyor width adjustment |
| Component types | Max 90 types (8mm tape), 45 lanes x 2 | Max 180 types (8mm tape), 45 lanes x 4 |
| Transfer height | 900 +/- 20mm | 900 +/- 20mm |
| Machine dimensions, weight | L1250xD1750xH1420mm, Approx. 1,200kg | L1750xD1750xH1420mm, Approx. 1,500kg |
- *1 :
- Board thickness + Component height = Max 30mm
- Specifications and appearance are subject to change without prior notice.
Yamaha Premium High-efficiency Modular YRM20 Mounter placement machine
Specifications
| Model | YRM20 | ||
|---|---|---|---|
| Super high-speed rotary RM head | High-speed general-purpose in-line HM head | Odd-shaped components in-line FM (flexible-multi) head | |
| Nozzles (per 1 head unit) | 18 | 10 | 5 |
| Applicable components | 0201mm to W12 x L12mm, Height 6.5mm or less | 0201mm to W55 x L100mm, Height 15mm or less | 03015mm to W55 x L100mm, Height 30mm or less |
| Mounting capability under optimum conditions (in high production mode) | 2-beam : 115,000CPH (under optimum conditions) 1-beam : 57,500CPH (under optimum conditions) | 2-beam : 98,000CPH (under optimum conditions) 1-beam : 49,000CPH (under optimum conditions) | 2-beam : 35,000CPH (under optimum conditions) 1-beam : 17,500CPH (under optimum conditions) |
| Mounting accuracy (high-accuracy mode) | ±0.025mm Cpk≧1.0 (under optimum conditions) | ±0.035mm Cpk≧1.0 (under optimum conditions) | |
| Number of component types | Feeder carriage exchange : Max. 128 types = 32 feeders x 4 (conversion for 8mm tape feeder) Fixed plate : Max. 128 types (conversion for 8mm tape feeder), Trays : 60 types (maximum when equipped with eATS30 x 2) | ||
| PCB dimensions | 1-beam : (Single lane) Standard specifications : L50 x W50mm to L510 x W510mm, option : L50 x W50mm to L810 x W510mm 2-beam : (Dual stage) 1-PCB conveyance : L50 x W50mm to L810 x W510mm, 2-PCB conveyance : L50 x W50mm to L380 x W510mm | ||
| Power supply | 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz | ||
| Air supply source | 0.45MPa or more, in clean, dry state | ||
| External dimension (excluding projections) | L1,374 x W1,948 x H1,445mm | ||
| Weight | 2-beam : Approx. 2,250kg (Main unit only), 1-beam : Approx. 2,150kg (Main unit only) | ||
Yamaha Premium Modular Σ-F8S Mounter placement machine
Specifications
| Σ-F8S | |
|---|---|
| Applicable PCB | Single lane : L330 x W250 to L50 x W50mm (Option : L381 x W510 to L50 x W50mm) Dual lane : L330 x W250 to L50 x W50mm |
| Head/Applicable components | High-speed head : 0201mm CHIP to 4.3 x 3.4mm, Height 2.0mm or less High-speed multi-purpose head : 03015mm CHIP to 33mm square, Height 12.7mm or less |
| Mounting capability | High-speed head x 4 specs : 150,000CPH (Dual lane) 136,000CPH (Single lane) |
| Mounting accuracy (Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used) | High-speed head : 0201mm/03015mm : ±25μm (3σ) (140,000CPH) 0402mm/0603mm : ±36μm (3σ) (150,000CPH) |
| Number of component types | Max.80 types (conversion for 8mm tape feeder) |
| Power supply | 3-Phase AC200V ±10% 50/60Hz |
| Air supply source | 0.45 to 0.69MPa (4.6 to 7kgf/cm2) |
| External dimension | L 1,280 x W 2,240 x H 1,450mm (excluding projections) |
| Weight | Approx. 1,940kg |
- Specifications and appearance are subject to change without prior notice.
SMT placement machine ASM Siemens placement machine TX2i/TX2/TX1
Introduction to ASM Siemens Mounter TX2i: ASM Siemens Mounter TX2i: Provide high performance and high precision in a very small footprint. The ASM Siemens Mounter TX2i mounter module sets a new benchmark for mass production. No other placement solution can achieve 25 µm @ 3 sigma accuracy at speeds up to 96,000 cph in such a small footprint (only 1m x 2.3m).
Yamaha Compact High-speed Modular YSM10 Mounter placement machine
| YSM10 | ||
|---|---|---|
| Applicable PCB | L 510 x W 460mm - L 50 x W 50mm Note : Available in lengths up to L950mm as an option. | |
| Applicable components | 03015mm to W55 x L100mm (For parts sizes larger the width 45mm, recognition of parts is divided into sections.), Height 15mm or less Note : A multi camera (option) is required for part heights exceeding 6.5mm or part sizes exceeding 12mm | |
| Mounting capability | HM head (10 nozzle) specification : 46,000CPH (under optimum conditions as defined by Yamaha Motor) HM 5 head (5 nozzle) specification : 31,000CPH (under optimum conditions as defined by Yamaha Motor) | |
| Mounting accuracy (Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used) | +/-0.035mm (+/-0.025mm) Cpk 1.0 (3σ) | |
| Number of component types | Fixed plate : Max. 96 types (conversion for 8mm tape feeder) Note 1 Tray : 15 types (maximum when equipped with sATS15, JEDEC) | |
| Power supply | 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz | |
| Air supply source | 0.45MPa or more, in clean, dry state | |
| External dimension | L1,254 x W1,440 x H1,445mm | |
| Weight | Approx. 1,270kg | |
