1936MK5 Reflow Oven System

  • Product Name: Lead-Free Reflow Oven System
  • Product Model: 1936MK5
  • Product Brand: Heller

Heller 1936MK5 reflow oven provides the ultimate high volume production solutions with belt speeds up to 1.4 m/min to accommodate the fastest pick and place systems.

Key Features

  • Nitrogen / Air Lead-Free Soldering Reflow Oven
  • Enhanced Heater Modules & Fastest Cooling Rates
  • Lowest Nitrogen & Electrical Usage
  • Maintenance Free Design
  • One-Step Profiling
  • Reflow Oven Process Monitoring Tools
  • Dual Lane Design for High Throughput Capacity

Specifications

Machine Model Heller 1936MK5
Heating Zones Top 10 / Bottom 10
Cooling Zones Top 3
PCB Width 50 – 610 mm
Max Conveyor Speed 188 cm/min
Cross-Belt Temperature Tolerance ± 2 ℃
Accuracy of Temperature Controller ± 0.1 ℃
Conveyor Width Adjustment Manual Motor Control
Operating System Windows 7
Overall Dimensions W5890 x D1370 x H1600 mm
Typical Net Weight Approx. 2900 kg
Shipping & Delivery

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

  • Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
  • Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
  • Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

Reviews

There are no reviews yet.

Be the first to review “ Heller 1936MK5 Reflow Oven System”

Your email address will not be published. Required fields are marked *

Related products

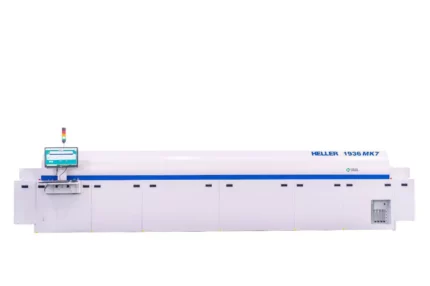

Heller1936 MK7 Reflow Oven System

The 1936 MK7 is a high volume reflow oven system with 10 heated zones and belt speeds up to 1.88m/min. The 1936 MK7 offers the lowest delta T’s, reduced nitrogen and electrical consumption and advanced flux management options. The 12” wide heater modules offer profile compatibility with competitor systems.
  • Built-in Thermal Monitoring
  • Nitrogen Capable to < 100 ppm
  • Energy Management System
  • Virtually No Maintenance
  • 12” Wide Heater Modules
Enquiry

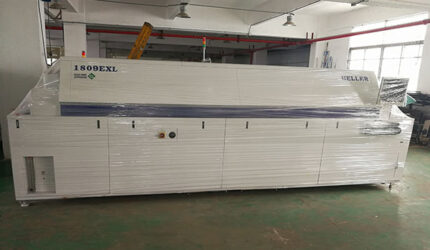

Heller 1809 EXL Reflow Oven System

Enquiry

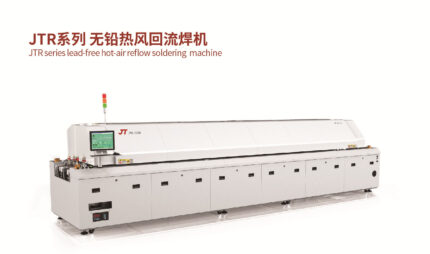

JT JTR1000 Reflow Oven System

Enquiry

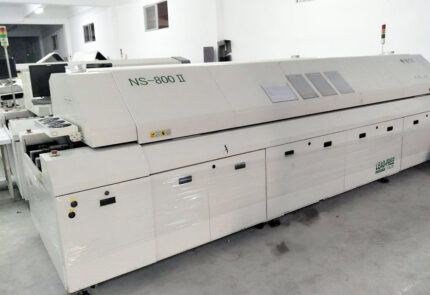

JT NS-800 II Reflow Oven System
