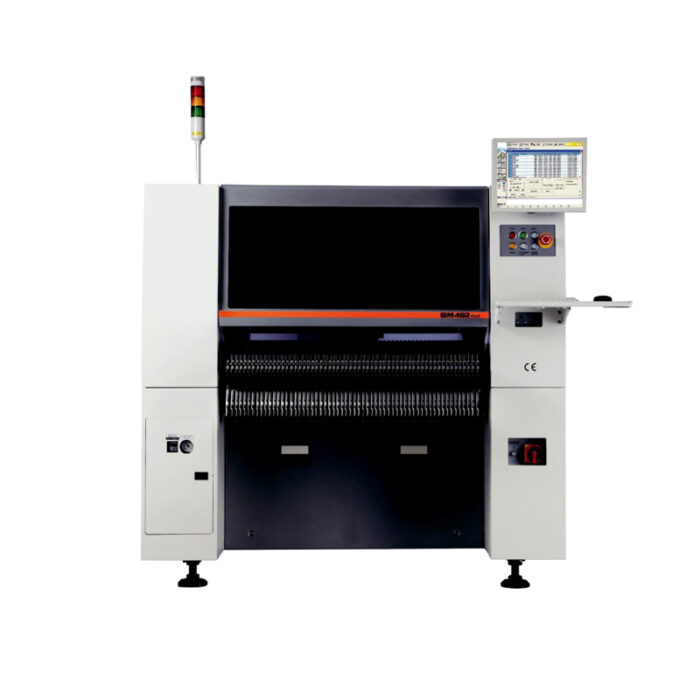

SMT Samsung Mounter SM482 Plus 482

Specifications

Alignment: Fly Camera + Fix Camera (Option)

Spindle & Speed: 1 Gantry * 6 Spindle / 30,000 CPH

Accuracy: ±40μm@±3σ (Chip) / ±30μm@±3σ(QFP)

Component Range: Fly: 0603 ~ □22mm(0402 ~ □14mm) / Fix: ~□55mm, L75mm Connector

Dimension: L 1,650 x D 1,680 x H 2,090

Enquiry

Description

Features

Reliability

Adopts Powerful Camera Algorithm

Improves recognition accuracy with the component image noise removal function and automatic teaching function of components Corrects the pickup position of components such as Chip, TR, BGA and QFP automatically in real time
Easy Operation

Polygon Recognition Algorithm

Allows even the components of a complicated shape to be easily registered by extracting the component shape and recognizing it entirely.
Easy Operation

Multi-Vendor Component Management Function

When the same components are supplied from different component supply devices, allows them to be used without changing a PCB file and downloading it again.

Additional information

Category demo	Beige, Black, Blue, Brown, Yellow

Shipping & Delivery

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

Click to enlarge

Back to products

SKU: 10 Categories: Samsung Hanwha, SMT placement machine

Category demo	Beige, Black, Blue, Brown, Yellow

Reviews

There are no reviews yet.

Be the first to review “SMT Samsung Mounter SM482 Plus 482”

Related products

Panasonic Mounter CM402-L Modular Super High Speed placement machine

SMT placement machine, Panasonic

Model name: CM402-L Substrate size: L50mm×W50mm～L510mm×W460mm Substrate replacement time: 0.9s (when the substrate length is below 240mm and under the best conditions) Power supply*1: three-phase AC200V, 3.5kVA Air pressure source*2: 0.49MPa, 150L/min (A.N.R.) Equipment size: W2350mm×D2690mm×H1430mm*3 Weight*4: 3000kg High-speed placement head Mounting fastest speed: 0.06s/chip (Type A) Mounting accuracy: ±50μm/chip (Cpk≧1) Component size: 0603 chip~L24mm×W24mm Multifunctional placement head Mounting fastest speed: 0.21s/QFP (Type B) Mounting accuracy: ±35μm/QFP (Cpk≧1) Component size: 0603 chip~L100mm×W90mm

Yamaha Ultra-High-Speed Modular Z:TA-R YSM40R Mounter placement machine

SMT placement machine, Yamaha

		Z:TA-R YSM40R
		4-Beam, 4-Head Spec. (YSM40R-4)
Applicable PCB		L700×W460mm to L50×W50mm
Mounting capability (under optimum conditions as defined by Yamaha Motor)		200,000CPH (When using RS head)
Applicable components	Ultra-High-Speed (RS) Head	0201mm* to □6.5mm (Height 2.0mm or less) *option
Applicable components	Multi (MU) Head	03015mm to 45×60mm (Height 15mm or less)
Mounting accuracy (Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used)		+/-35μm (25μm) Cpk ≧1.0 (3σ)
Number of component types * 8mm width tape conversion		Max. 80 feeders with RS heads Max. 88 feeders with MU heads Max. 84 feeders with RS x 2 + MU x 2 heads
Power supply		3-Phase AC 200/208/220/240/380/400/416V +/-10%
Air supply source		0.45MPa or more, in clean, dry state
External dimension		L1,000×W2,100×H1,550mm (excluding projections)
Weight		Approx. 2,100 kg

SMT placement machine ASM Siemens placement machine TX2i/TX2/TX1

SMT placement machine, ASM SIEMENS

Introduction to ASM Siemens Mounter TX2i: ASM Siemens Mounter TX2i: Provide high performance and high precision in a very small footprint. The ASM Siemens Mounter TX2i mounter module sets a new benchmark for mass production. No other placement solution can achieve 25 µm @ 3 sigma accuracy at speeds up to 96,000 cph in such a small footprint (only 1m x 2.3m).

High-efficiency Modular Z:LEX YSM20WR Mounter placement machine

Model	YSM20WR
Applicable PCB	Dual lane ^{Note 1} Same type PCBs: L810 x W356 to L50 x W50 Different type PCBs: up to L810 x W662 ^{Note 2} Same type PCB: L810 x W280 to L50 x W500 Different type PCBs: up to L810 x W510
Head / Applicable components	High-Speed Multi (HM) Head ^{Note 3} 0201mm to W55 x L100mm, Height 15mm or less Odd-shaped components (FM: Flexible Multi) head: 03015mm to W55 x L100mm, Height 28mm or less
Mounting capability (under optimum conditions as defined by Yamaha Motor)	X axis 2-beam ^{Note 1}: High-speed multi-purpose (HM: High-speed Multi) head x 2 81,000CPH
Mounting accuracy	±0.035mm (±0.025mm) Cpk≧1.0 (3σ) (under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used)
Number of component Types	Fixed plate: Max. 140 types (conversion for 8mm tape feeder) Feeder carriage exchange: Max. 128 types (conversion for 8mm tape feeder) Trays for 30 types (Fixed type: max., when fitted with sATS30) and 10 types (Carriage type: max., when fitted with cATS10)
Power supply	3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source	0.45MPa or more, in clean, dry state
External dimension (excluding projections)	L 1,374 x W 2,110 x H1,445mm (Main unit only)
Weight	Approx. 2,500kg (Main unit only)

Note 1 : When using conveyor separation specifications of 787mm between 1 to 4 lanes

Note 2 : When using conveyor separation specifications of 630mm between 1 to 4 lanes

Note 3 : Please contact us for info regarding mounting 0201mm components.

Specifications and appearance are subject to change without prior notice.

Yamaha High-efficiency Modular Z:LEX YSM20R Mounter placement machine

Model	YSM20R
Applicable PCB	Single lane L810 x W490 to L50 x W50 Dual stage Note: For X-axis 2-beam option only 1PCB conveyance: L810 x W490 to L50 x W50 2PCB conveyance: L380 x W490 to L50 x W50
Head / Applicable components	High-Speed Multi (HM) Head ^* 0201mm to W55 x L100mm, Height 15mm or less Odd-shaped components (FM: Flexible Multi) head: 03015mm to W55 x L100mm, Height 28mm or less
Mounting capability (under optimum conditions as defined by Yamaha Motor)	X axis 2-beam: High-speed multi-purpose (HM: High-speed Multi) head x 2 95,000CPH
Mounting accuracy	±0.035mm (±0.025mm) Cpk≧1.0 (3σ) (under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used)
Number of component Types	Fixed plate: Max. 140 types (conversion for 8mm tape feeder) Feeder carriage exchange: Max. 128 types (conversion for 8mm tape feeder) Trays for 30 types (Fixed type: max., when fitted with sATS30) and 10 types (Carriage type: max., when fitted with cATS10)
Power supply	3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source	0.45MPa or more, in clean, dry state
External dimension (excluding projections)	L 1,374 x W 1,857 x H1,445mm (Main unit only)
Weight	Approx. 2,050kg (Main unit only)

Yamaha Compact High-speed Modular YSM10 Mounter placement machine

YSM10
Applicable PCB	L 510 x W 460mm - L 50 x W 50mm Note : Available in lengths up to L950mm as an option.
Applicable components	03015mm to W55 x L100mm (For parts sizes larger the width 45mm, recognition of parts is divided into sections.), Height 15mm or less Note : A multi camera (option) is required for part heights exceeding 6.5mm or part sizes exceeding 12mm
Mounting capability	HM head (10 nozzle) specification : 46,000CPH (under optimum conditions as defined by Yamaha Motor) HM 5 head (5 nozzle) specification : 31,000CPH (under optimum conditions as defined by Yamaha Motor)
Mounting accuracy (Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used)	+/-0.035mm (+/-0.025mm) Cpk 1.0 (3σ)
Number of component types	Fixed plate : Max. 96 types (conversion for 8mm tape feeder) ^{Note 1} Tray : 15 types (maximum when equipped with sATS15, JEDEC)
Power supply	3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source	0.45MPa or more, in clean, dry state
External dimension	L1,254 x W1,440 x H1,445mm
Weight	Approx. 1,270kg

Hanwha High Speed General Mounter DECAN L2

SMT placement machine, Samsung Hanwha

Alignment: Fly Camera, Fix Camera

Spindle & Speed: 2 Gantry * 6 Spindle / 56,000 CPH

Accuracy: ±40µm Cpk≥1.0 (0402 (01005 inch) chip) /±30µm Cpk≥1.0 (IC, Stage Vision)

Component Range: Fly: 0402 ~ □21 mm / Fix: ~□42 mm (Standard) / ~□55 mm (MFOV) / ~ L75 mm Connector (MFOV)

Dimension: L 1,430 x D 1,740 x H 1,995

Yamaha Wide-Range Compact Modular YC8 Mounter placement machine

		YC8
Applicable PCB		L50 x W50mm to L330 x W360mm ^*1
Mounting accuracy	When using Yamaha's standard components	Absolute accuracy (μ+3σ):+/-0.05mm /QFP Repeatability(3σ) +/-0.03mm /QFP
Mounting capability	Indication	2.5sec/component (Cycle time from a pickup to mounting with recognition)
Applicable components		4 x 4mm to 100 x 100mm ^*2 (Some components larger than 45 x 45mm ane conditional) Maximum components heights 45mm Maximum payload 1kg
Component supply configuration: Number of component types		Tape reel : MAX. 28 types (8mm width) Tray : MAX. 15 trays Stick
Power supply		3-Phase AC 200/208/220/240/380/400/416V　+/-10%　50/60Hz
Air supply source		0.45MPa or more, in clean, dry states
External dimension (excluding projections)		L 880 x W1,440 x H1,445mm (Main unit only) L 880 x W1,755 x H1,500mm (When ATS15 is installed)
Weight		Approx. 1,000kg (Main unit only) ATS15 : Approx. 120kg

*1: Please consult us separately for maximum board sizes.

*2: Consult us separately regarding component sizes outside the specifications.
