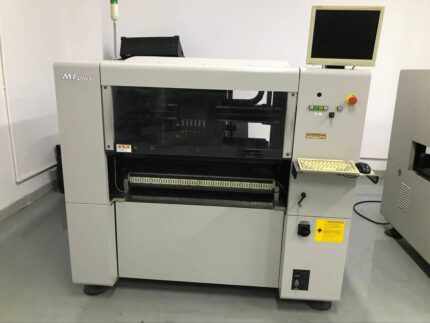

Yamaha I-Pulse M1 pick&place machine placement mounter.
Back to products

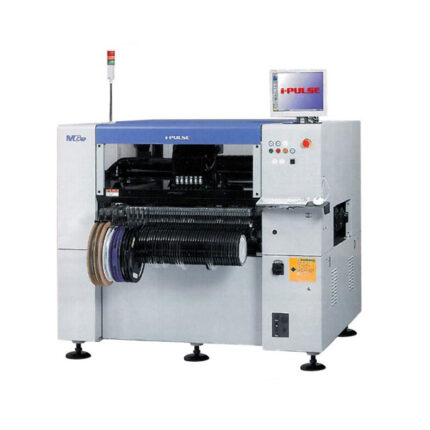

I-Pulse M6E Chip Mounter pick&place machine placement

I-Pulse- M2 Plus placement machine pick&place mounter

Enquiry
Categories: ,
Description
I-Pulse- M2 Plus Specification
Board size L50xW50mm – L460 xW410mm
Board thickness 0.5mm-2.0mm
Flow direction Left to right
Conveyor speed Max. 420mm/sec, speed variable, soft stop fuction
Placement speed A (NB1) 0.13 sec/CHIP, 0.38 sec/TSOP32
Placement speed B (NB2) 0.54 sec/QFP100 (when using the optional fixed camera FCO5)
Placement accuracy A (u+3o) CHIP +0.05mm
Placement accuracy B (u+30c) QFP +0.03mm (when using the optional fixed camera FCO3)
Placement angle +180′, resolution 0.015
Z-axis control 6-head independent servo motors, resolution 0.006mm
Component height 15mm (Preplaced components max. 10.5mm)
Components applicable 0603 (option) – SOP, PLCC, QFP, BGA, CSP, connector, and odd-form components
Component carriers 8-56mm tape, stick, tray
Drawback check Vacuum check and vision check
Multi language display Japanese, Chinese, Korean, and English
Board locating method Board edge or tooling hole (option), front reference
Component types 120 types (8mm tape conversion)
Board transfer height 900+20mm
Dimensions, weight L1,750XD1,530XH1, 510mm, approx. 1,950Kg
Power, consumption, capacity 3phase 200V (Option: 208, 220, 240, 380, 400, 415, 440V) +10% 50/60Hz, 4.0KVA, 6.0KVA
Air and consumption 0.5MPa, 692/min A.N.R.
