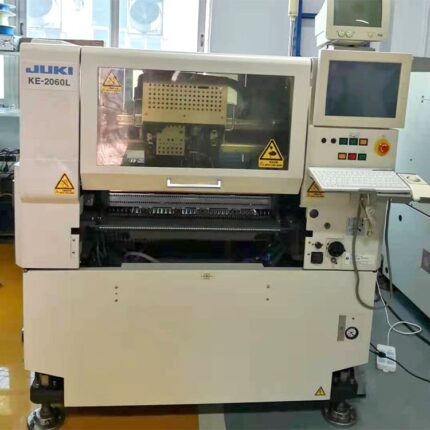

JUKI placement machine KE-2060 Mounter placement pick and palce machine
Back to products
JUKI JX-300LED placement machine placement pick and palce machine Mounter

JUKI high-speed placement machine FX-1R placement pick and palce machine Mounter

Enquiry
Categories: ,
Description

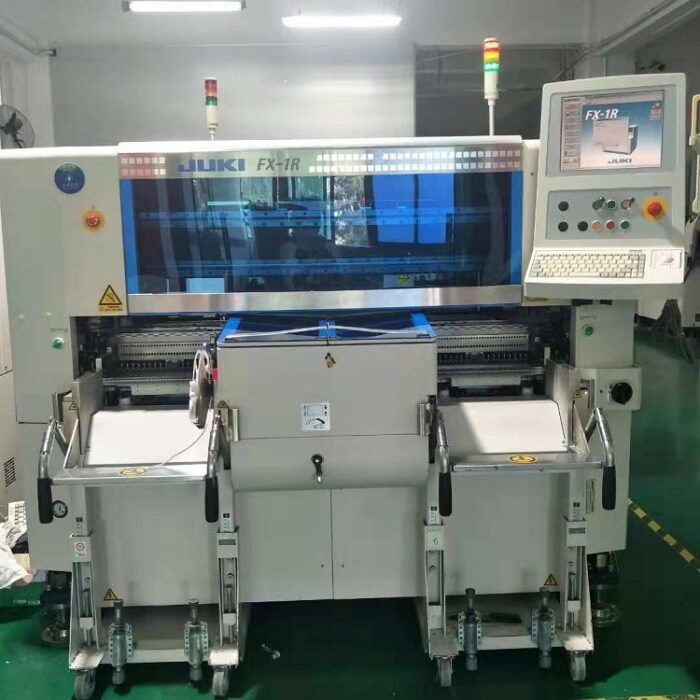

JUKI high-speed placement machine FX-1R product features:

33,000CPH: Chip (Condition) / 25,000 CPH: Chip (IPC 9850)

Laser placement head × 2 (8 suction nozzles)

0603 (Inch 0201) chip ~ 20mm square component, or 26.5×11mm

0402 (Imperial 01005) chip is an option when leaving the factory

Device size: (W×D×H*3) 1,880×1,731×1,490mm

Approximate weight: 2,000kg

JUKI high-speed placement machine FX-1R specifications:

Substrate size

For L substrate (410×360mm)

○

Component size

laser recognition

0603 chip (English 0201) chip ~ 20mm square component
or 26.5×11mm*1

Component placement speed

chip components

33,000CPH*2 (conditions)

25,000CPH (IPC9850)



Component placement accuracy

±0.05mm

Component Mounting Type

80 types (converted to 8mm tape)

*10402 (Inch 01005) chip is an option when leaving the factory.

*2CPH=The average number of components placed in 1 hour.
