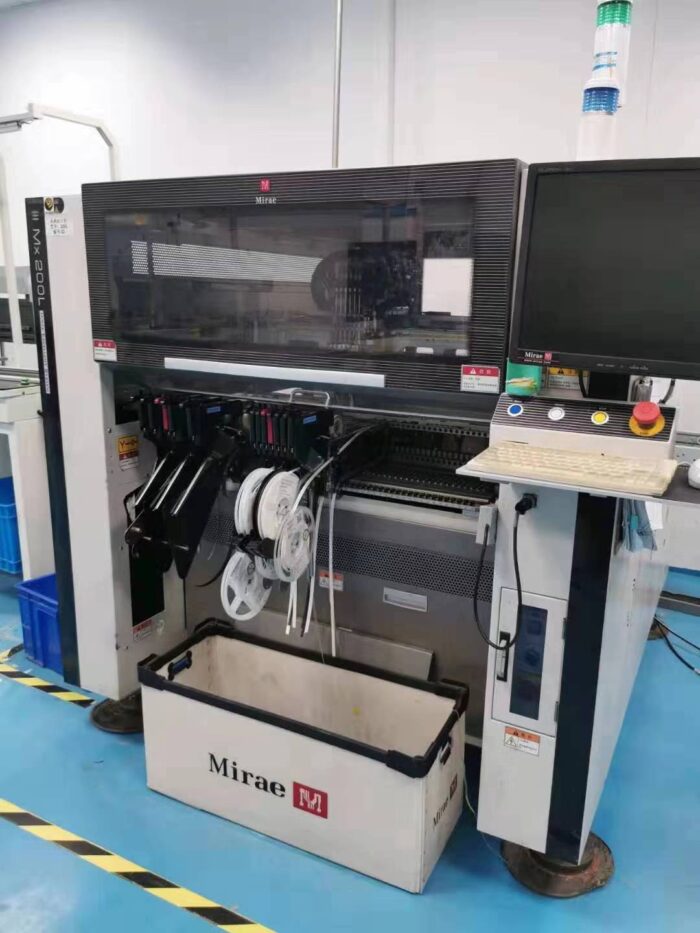

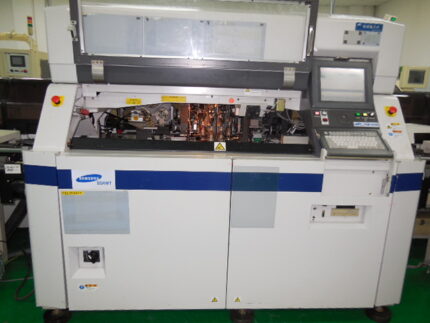

| Mx200L | Mx200LP | ||
| Year | |||
| Head | 6 | 4+ 1 Precision | |
| Feeder | 100EA(50*2) | ||
| Best Mounting Speed | Chip(1005) | (0.157sec/chip)23,000CPH | (0.212sec/chip)17,000CPH |
| IPC 9850 Standard CPH | Chip(1005) | (0.171sec/chip)21,000CPH | (0.240sec/chip)15,000CPH |
| QFP(208) | – | 1,200 CPH | |
| Mounting Accuracy | Chip | ±0.050mm 3σ | |
| QFP | N/A | ±0.025mm 3σ | |
| Loading Capacity | FOV 24 Single FOV | 0603～□18mm (24×□18mm ) Chips, Can Caps, Small Ics | |
| FOV 36 Single FOV | —— | ～□32mm (42*□32mm) | |
| Area Camera Multiple FOV | —— | ～□50mm (90*□30mm) QFP,BGA,Connectors | |
| The smallest pitch | FOV24 Camera | 0.30mm | |
| FOV36 Camera | —— | 0.38mm | |
| PCB尺寸 PCB dimension |
Minimum | 50*50*0.4mm | |
| Maximum | 680*460*5.0mm | ||
| Twin place | —— | ||
| Weight | 2.0㎏ | ||
| 基板传递 Board Transfer |
Transfer Features | ||
| Component Range | Reel Types | ||
| Tray | MS1 (601*2 Multi-tray Supplier) | TF5 (20 Tray Feeder Unit) MS 1 (60*2 Multi-tray supplier) | |
| others | Vibration Stick Feeder, Manual Tray | ||
| Outer dimension | 1450*1900*1500mm | ||
| Power supply | |||
| Power consuming | |||
| Air pressure | |||
| Air consuming | 180N?6?1/min | 160N?6?1/nin | |
| Weight | 1300㎏ | ||
Description
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
