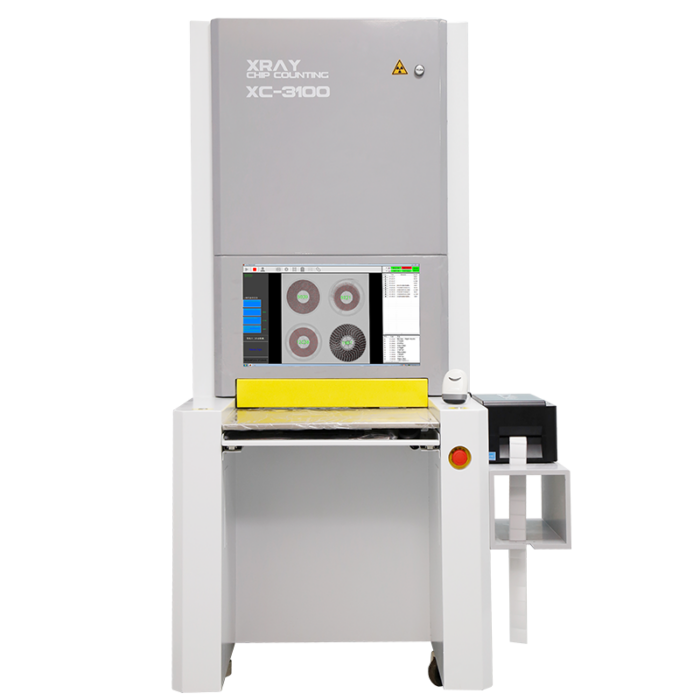

Offline X-RAY Counter_XC-3100

XC-3100 is a new type of X-ray spotting machine, used to quickly count the reel materials in the SMT industry, with an accuracy of 99.99% and a four-reel inspection speed of only 7-14S.

Enquiry
Category:
Description
specification
Model： XC-3100
X-Ray tube type Closed
Spatial 100um
Light tube voltage 50KV
Light tube current 1000uA
Pointing speed 7-14 S /plate（CHIP 0402）
Accuracy 99.99% （0201 As an example）
Diameter of the largest disc 415mm（4-15INCH）
Maximum height of tray 1-80mm
Image accuracy 85um
Imaging size 430*430mm
Resolution 36 LP/CM
Machine size 860*1470*1880mm (L*W*H)
Machine weight 580KG
operating system WINDOWS 7/WINDOWS 10
Power supply/power AC110-220V  50-60HZ 1200W
Radiation safety test <1 uSV/H
Shipping & Delivery

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

  • Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
  • Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
  • Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

Reviews

There are no reviews yet.

Be the first to review “Offline X-RAY Counter_XC-3100”

Your email address will not be published. Required fields are marked *

Related products

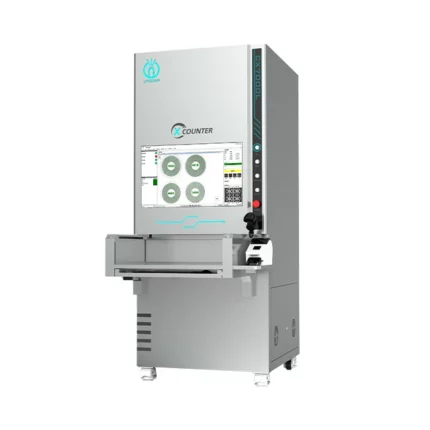

Unicomp Off-line X-Ray SMD Chip Counting System CX7000L
