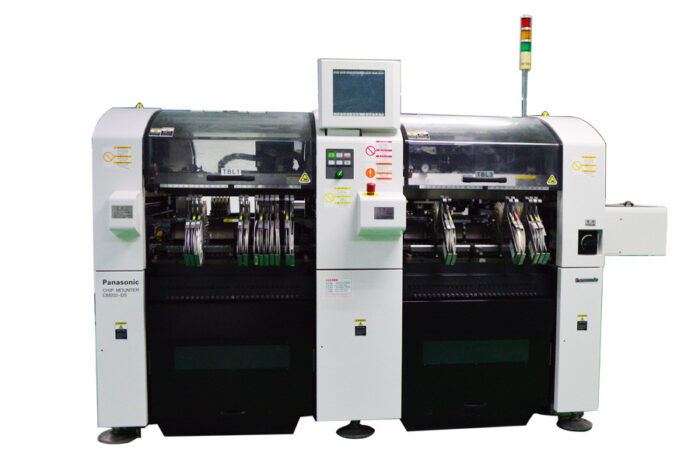

Panasonic CM202 placement machine Mounter

Main parameters of CM202 placement machine:

2004 equipment

PCB size: 460mm×360mm

Component range that can be attached: 0201 to 24mmQFPS

Material station: 104

Theoretical placement speed: 0.088s/chip 40909 pieces/hour

Mounting accuracy: ±0.05mm

Dimensions and Weight: 2,350(L) X 1,950(D) X 1,430(H)mm&2,800kg

Power supply and air source: 3P/200V±10V/3KVa

Enquiry
Categories: ,
Description

Brand: Panasonic/ Panasonic

Model: CM202

Country of Origin: Japan

Machine parameters:

Device name CM202-DH/CM202-DK/CM202-DS
Rated power supply 3 phase 200/220 50/60Hz 4KVA
Air pressure/weight 0.49-0.78MPa 170L/min 2500kg
Device size W2350xD2690xH1430mm
SMT speed 0.09s/c (about 40000 points/hour)
Object component 0402-100X90mm
The number of stations: up to 216 stations 8mm braiding
Target substrate L50xW50mm-L460xW360mm
Year: 2003
:±0.1mm
Feeder specification: 8-32mm Tape
Origin: Japan
Speed (TACT TIME): 0.088
PCB size: 460×360
Applicable components: 0201-24QFP, CSP, MBGA
