Philips FCM2 placement pick and palce machine
Back to products

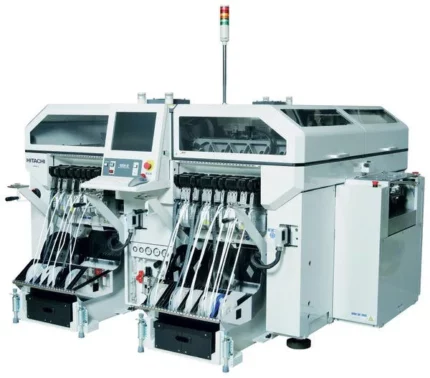

HITACHI GXH-3 MODULAR MOUNTERPICK AND PLACE MACHINE

Philips FCM2 FCM2 Multiflex high-speed placement pick and palce machine

Enquiry
Categories: ,
Description

Product Specification

Power Consumption 5 Kva
Model Name/Number FCM2 /Multiflex
Production Capacity 48-96K CPH
Brand Philips / Assembleon
Machine Type Automatic
Rated Speed 96,000CPH
Practical Speed 60,000 – 65,000 CPH
PCB Handling Up to 1,200 x 350mm
Component Handling 0201 up to 16mm Tape Components
Pick Efficiency 99.7%
Feeder Type Intelligent Feeders
Power | Air 190-480V, 3-Phase| >6bar, 107Nl/min
Dimensions | Weight 3,120 x 2,150 x 1,290mm | 2,500kg

Product Description

Description:

  • Practical Output*
  • Changeover Time with FLEX Pallets
  • High Efficiency with Walking Beam
  • LED Tube Light PCBs/month
  • LED Tube Light PCB Handling
  • LED Lamp Drivers/month
  • Highest Output per sq.m

Features:

  • 16x Robots, 16x Placement Heads, 4x Feeder Trolleys
  • 1x Adjustable Carrier Kit
  • 30x 8mm, 5x 12mm,2x 16mm Intelligent Feeders
  • 30x Nozzles for various sizes
  • First Time Options incl. Carrier Adj. Tool, Multiflex Cal Set, etc.
  • 1,200mm upgrade (H/W & S/W)
  • Set of Flexible Pallets for Zero Changeover
  • FULLY REFURBISHED, with 3 Months Comprehensive Warranty
