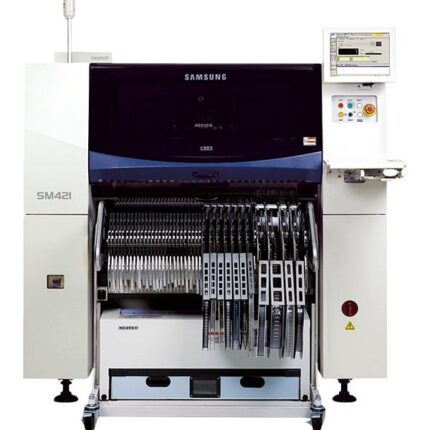

Equipment detailed parameter introduction:
1. Speed: 55,000CPH (best condition)
2. Dual-gantries Y-axis dual-servo drive system
3. A total of 16 placement heads on both gantries, high-speed flight image recognition system
4. Component range: 0402mm Chip to 12mm
5. Mounting accuracy: ±50µm@3σ
6. Applicable to the new SM feeding system – applicable to non-stop feeders – applicable to feeders in the form of slide rails – LED display feeder status
7. Dual transmission system
– Dual transfer mode: 330 x 250 (2 PCB)
– Single transfer mode: 460 x 460 (1PCB)
8. Can hold 84pcs 8mm feeders
9. With LCD display for front and rear operation
10. Automatic change nozzle device
11. Windows XP operating system
