| Equipment model | C-UN-L250 | C-UN-L330 | C-UN-L390 | C-UN-L460 |
| Controller | PLC | PLC | PLC | PLC |
| Overall dimensions | 930x1000x1400mm | 1130x1080x1400mm | 1430x1140x1400mm | 1430x1210x1400mm |
| Frame up time | about3s | about3s | about3s | about3s |
| Material box replacement time | about5s | about5s | about5s | about5s |
| Power supply and load | 220v/0.3kw | 220v/0.3kw | 220v/0.3kw | 220v/0.3kw |
| Air pressure and flow rate | 4-6bar，≤10L/min | 4-6bar，≤10L/min | 4-6bar，≤10L/min | 4-6bar，≤10L/min |
| Orbit hight | 900±20mm | 900±20mm | 900±20mm | 900±20mm |
| Transport Direction | Left⇆Right | Left⇆Right | Left⇆Right | Left⇆Right |
| Allowable plate thickness | 0.4-5mm | 0.4-5mm | 0.4-5mm | 0.4-5mm |
| Allowable part height | ≤2.5cm | ≤2.5cm | ≤2.5cm | ≤2.5cm |
| Step selection | 1-4（10mm step） | 1-4（10mm step） | 1-4（10mm step） | 1-4（10mm step） |
| Sensor | Photoelectric induction | Photoelectric induction | Photoelectric induction | Photoelectric induction |
| Adjusting the track | Handwheel adjustment | Handwheel adjustment | Handwheel adjustment | Handwheel adjustment |
| Material frame size | 355x320x563mm | 460x400x563mm | 535x460x570mm | 535x530x570mm |
| Fault detect | I/O | I/O | I/O | I/O |
| Allowable board size | （50×50）x（350×250）mm | （50×50）x（455×330）mm | （50×50）x（530×390）mm | （50×50）x（530×460）mm |
| Equipment weight | 150kg | 175kg | 215kg | 240kg |

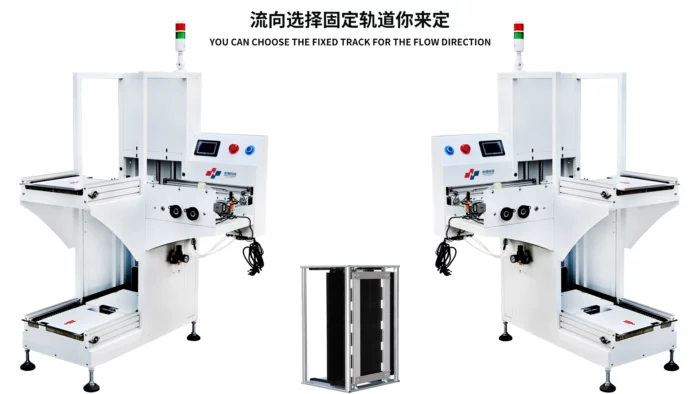

SMT L-type fully automatic PCB Unloader
