Panasonic Mounter NPM-TT2 multifunctional production system placement machine
Back to products
Panasonic NPM-W2 Multifunctional Mounter placement machine

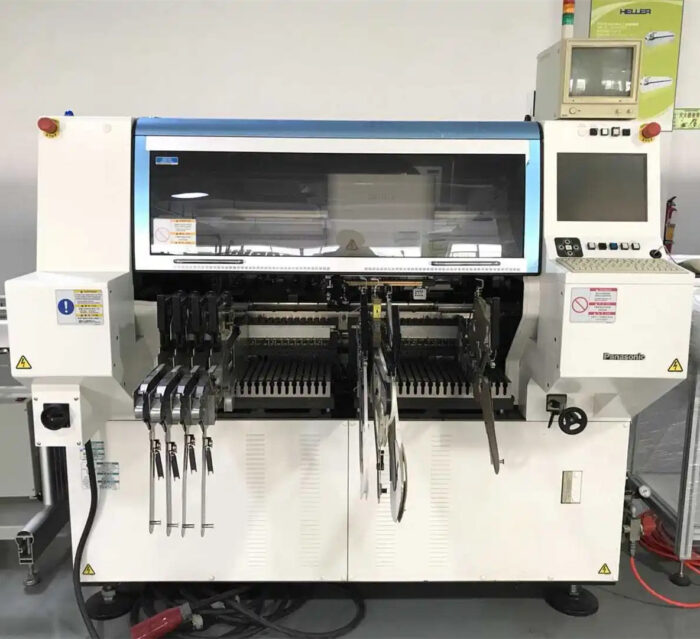

SMT placement machine Panasonic/Panasonic BM231 placement machine

Panasonic’s BM231 modular high-speed multi-function placement machine has any volume, any mix capability by placing various components from 0402 (01005) microchips to BGAs, CSPs and connectors. Maximum productivity is achieved through uninterrupted operation and quick changeovers.

Enquiry
Categories: ,
Description

Vibration control, dual-drive XY robots, dual-tray integrated feeder power supply, and supported by our rigid die-cast frame, provide an optimal positioning speed of 0.25 s/chip.

The BM231 features tape splicing, motorized feeders, and non-stop performance with up to 120 8mm feeders and 80 tray feeders.

Economical Solutions for Competitive Manufacturing
Wide range of components for continuous production
More feeder inputs than others – allowing for quick changeovers and larger general setups
Quickly and Accurately Maximize ROI – 14,400 CPH
Proven reliability based on a common platform
Chip 50m (Cpk>1), QFP 30µm (Cpk>1)

Simple, interactive operation

Shipping & Delivery

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

  • Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
  • Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
  • Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

Reviews

There are no reviews yet.

Be the first to review “SMT placement machine Panasonic/Panasonic BM231 placement machine”

Your email address will not be published. Required fields are marked *

Related products

Yamaha Wide-Range Compact Modular YC8 Mounter placement machine

,

Specifications

YC8
Applicable PCB L50 x W50mm to L330 x W360mm *1
Mounting accuracy When using Yamaha's standard components Absolute accuracy (μ+3σ):+/-0.05mm /QFP Repeatability(3σ) +/-0.03mm /QFP
Mounting capability Indication 2.5sec/component (Cycle time from a pickup to mounting with recognition)
Applicable components 4 x 4mm to 100 x 100mm *2 (Some components larger than 45 x 45mm ane conditional) Maximum components heights 45mm Maximum payload 1kg
Component supply configuration: Number of component types Tape reel : MAX. 28 types (8mm width) Tray : MAX. 15 trays Stick
Power supply 3-Phase AC 200/208/220/240/380/400/416V　+/-10%　50/60Hz
Air supply source 0.45MPa or more, in clean, dry states
External dimension (excluding projections) L 880 x W1,440 x H1,445mm (Main unit only) L 880 x W1,755 x H1,500mm (When ATS15 is installed)
Weight Approx. 1,000kg (Main unit only) ATS15 : Approx. 120kg
*1
Please consult us separately for maximum board sizes.
*2
Consult us separately regarding component sizes outside the specifications.
Specifications and appearance are subject to change without prior notice.
Enquiry

Super High Efficiency Dual Lane Modular YRM20DL Mounter placement machine

,

Specifications

Model YRM20
Super high-speed rotary RM head High-speed general-purpose in-line HM head Odd-shaped components in-line FM (flexible-multi) head
Nozzles (per 1 head unit) 18 10 5
Applicable components 0201mm to W12 x L12mm, Height 6.5mm or less 0201mm to W55 x L100mm, Height 15mm or less 03015mm to W55 x L100mm, Height 30mm or less
Mounting capability (under optimum conditions) 120,000CPH Note 1 100,000CPH Note 1 35,000CPH
Mounting accuracy (under optimum conditions) ±0.015mm Cpk≧1.0 Note 2 ±0.035mm Cpk≧1.0
Number of component types Feeder carriage exchange : Max. 128 types = 32 feeders x 4 (conversion for 8mm tape feeder) Fixed plate : Max. 128 types (conversion for 8mm tape feeder), Trays : 60 types (maximum when equipped with eATS30 x 2)
PCB dimensions Single use : L50 x W50mm to L810 x W610mm Dual use : L50 x W50mm to L810 x W330mm
Power supply 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source 0.45MPa or more, in clean, dry state
External dimension (excluding projections) L1,374 x W2,102 x H1,445mm
Weight Approx. 2,550kg (Main unit only)
Enquiry

SMT Samsung Mounter SM482 Plus 482

,

Specifications

Alignment
Fly Camera + Fix Camera (Option)
Spindle & Speed
1 Gantry * 6 Spindle / 30,000 CPH
Accuracy
±40μm@±3σ (Chip) / ±30μm@±3σ(QFP)
Component Range
Fly: 0603 ~ □22mm(0402 ~ □14mm) / Fix: ~□55mm, L75mm Connector
Dimension
L 1,650 x D 1,680 x H 2,090
Enquiry

Panasonic NPM-W2 Multifunctional Mounter placement machine

,
Product Features of Panasonic NPM-W2 Multi-Function Mounter 1. Install & inspect a complete system to achieve efficient and high-quality production To match the actual installation requirements, you can choose high-yield or high-precision mode 2. Can correspond to larger substrates and large components Correspondingly, on a large substrate of 750×550 mm, the component range is also expanded to L150×W25×T30mm 3. Double-track installation (select specifications) to achieve high productivity per unit area According to the production substrate, you can choose independent mounting, alternate mounting, mixed mounting and other mounting methods
Enquiry

SMT placement machine ASM Siemens placement machine TX2i/TX2/TX1

,
Introduction to ASM Siemens Mounter TX2i: ASM Siemens Mounter TX2i: Provide high performance and high precision in a very small footprint. The ASM Siemens Mounter TX2i mounter module sets a new benchmark for mass production. No other placement solution can achieve 25 µm @ 3 sigma accuracy at speeds up to 96,000 cph in such a small footprint (only 1m x 2.3m).
Enquiry

Yamaha Premium Modular Σ-F8S Mounter placement machine

,

Specifications

Σ-F8S
Applicable PCB Single lane : L330 x W250 to L50 x W50mm (Option : L381 x W510 to L50 x W50mm) Dual lane : L330 x W250 to L50 x W50mm
Head/Applicable components High-speed head : 0201mm CHIP to 4.3 x 3.4mm, Height 2.0mm or less High-speed multi-purpose head : 03015mm CHIP to 33mm square, Height 12.7mm or less
Mounting capability High-speed head x 4 specs : 150,000CPH (Dual lane) 136,000CPH (Single lane)
Mounting accuracy (Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used) High-speed head : 0201mm/03015mm : ±25μm (3σ) (140,000CPH) 0402mm/0603mm : ±36μm (3σ) (150,000CPH)
Number of component types Max.80 types (conversion for 8mm tape feeder)
Power supply 3-Phase AC200V ±10% 50/60Hz
Air supply source 0.45 to 0.69MPa (4.6 to 7kgf/cm2)
External dimension L 1,280 x W 2,240 x H 1,450mm (excluding projections)
Weight Approx. 1,940kg
Specifications and appearance are subject to change without prior notice.
Enquiry

Panasonic Mounter CM402-L Modular Super High Speed placement machine

,
Model name: CM402-L Substrate size: L50mm×W50mm～L510mm×W460mm Substrate replacement time: 0.9s (when the substrate length is below 240mm and under the best conditions) Power supply*1: three-phase AC200V, 3.5kVA Air pressure source*2: 0.49MPa, 150L/min (A.N.R.) Equipment size: W2350mm×D2690mm×H1430mm*3 Weight*4: 3000kg   High-speed placement head Mounting fastest speed: 0.06s/chip (Type A) Mounting accuracy: ±50μm/chip (Cpk≧1) Component size: 0603 chip~L24mm×W24mm   Multifunctional placement head Mounting fastest speed: 0.21s/QFP (Type B) Mounting accuracy: ±35μm/QFP (Cpk≧1) Component size: 0603 chip~L100mm×W90mm
Enquiry

Yamaha High-efficiency Modular Z:LEX YSM20R Mounter placement machine

,

Specifications

Model YSM20R
Applicable PCB Single lane L810 x W490 to L50 x W50 Dual stage  Note: For X-axis 2-beam option only 1PCB conveyance: L810 x W490 to L50 x W50 2PCB conveyance: L380 x W490 to L50 x W50
Head / Applicable components High-Speed Multi (HM) Head * 0201mm to W55 x L100mm, Height 15mm or less Odd-shaped components (FM: Flexible Multi) head: 03015mm to W55 x L100mm, Height 28mm or less
Mounting capability (under optimum conditions as defined by Yamaha Motor) X axis 2-beam: High-speed multi-purpose (HM: High-speed Multi) head x 2 95,000CPH
Mounting accuracy ±0.035mm (±0.025mm) Cpk≧1.0 (3σ) (under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used)
Number of component Types Fixed plate: Max. 140 types (conversion for 8mm tape feeder) Feeder carriage exchange: Max. 128 types (conversion for 8mm tape feeder) Trays for 30 types (Fixed type: max., when fitted with sATS30) and 10 types (Carriage type: max., when fitted with cATS10)
Power supply 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source 0.45MPa or more, in clean, dry state
External dimension (excluding projections) L 1,374 x W 1,857 x H1,445mm (Main unit only)
Weight Approx. 2,050kg (Main unit only)
Enquiry
