SMT placement machine Siemens ASM SIPLACE HS50 high-speed placement machine

SMT placement machine SIPLACE ASM Siemens D4/D3/D2/D1 high-speed placement machine

Enquiry
Categories: ,
Description

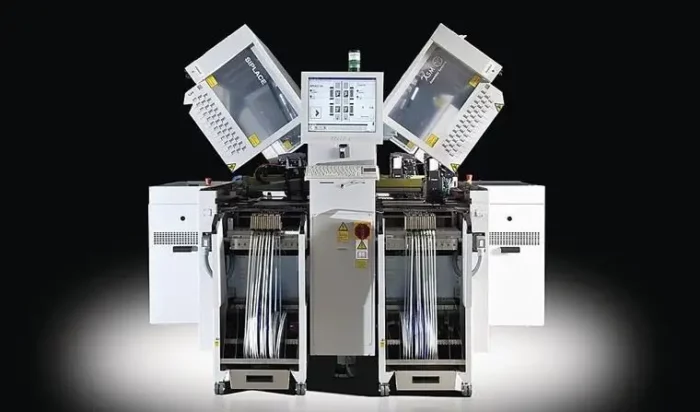

ASM Siemens high-speed placement machine D4 technical data:

Performance Theoretical value up to 81,500CPH

IPC value up to 57,000CPH

Accuracy ±50m, ±0.53?@3δ

Siemens D4 placement machine:

PCB size Single rail transmission 50 x 50 to 610 x 508mm

Dual rail transmission 50 x 50 to 610 x 380mm

PCB thickness standard 0.3 to 4.5mm (others can be provided on request)

Feeding quantity 144 8mm rails

Component range 01005″ – 18.7 x 18.7mm

Quality pickup rate: >/= 99.95%

DPM Rate: Settings

Power supply 200/ 208/ 230/ 380/ 400/ 415VAC ±5%, 50/60Hz

Air supply 5.5bar (0.55MPa) – 10bar (1.0MPa)

Dimensions (length x height x width) 2380 x 2491 x 1953mm

Mass 3419kg (basic machine with 4 feeders)

Technical data of ASM Siemens placement machine D3:

Performance Theoretical value up to 61,000CPH

IPC value up to 37,600CPH

Accuracy ±22μm, ±0.05@3

PCB size Single rail transmission 50 x 50 to 610 x 508mm

Dual rail transmission 50 x 50 to 610 x 430mm

PCB thickness standard 0.3 to 4.5mm (others can be provided on request)

Feeding quantity: 180 pieces of 8mm rails

Component range 0201″ – 200 x 125mm

Quality pickup rate: >/= 99.95%

DPM Rate: Setting Power Supply 200/ 208/ 230/ 380/ 400/ 415VAC ±5%, 50/60Hz

Air supply 5.5bar (0.55MPa) – 10bar (1.0MPa)

Dimensions 2380 x 2815 x 2112mm (LxHxW)

Mass 3790kg (basic machine with 4 feeders)

Technical data of ASM Siemens placement machine D2:

Performance Theoretical value up to 40,500CPH

IPC value up to 27,200CPH

Accuracy ±50μm, ±0.225?@3δ

PCB size Single rail transmission 50 x 50 to 610 x 508mm

Dual rail transmission 50 x 50 to 610 x 430mm

PCB thickness standard 0.3 to 4.5mm (others can be provided on request)

Feeding 90 pieces of 8mm material rail

Component range 01005″ – 200 x 125mm

Quality pickup rate: >/= 99.95%

DPM Rate: Settings

Power supply 200/ 208/ 230/ 380/ 400/ 415VAC ±5%, 50/60Hz

Air supply 5.5bar (0.55MPa) – 10bar (1.0MPa)

Dimensions (length x height x width) 1587 x 2565 x 1980mm

Mass 2343kg (basic machine with 2 feeders)

Siemens placement machine ASM D1 parameters:

Performance Theoretical value up to 20,000CPH

IPC value up to 13,000CPH

Accuracy ±30μm, ±0.05?@3δ

PCB size Single rail transmission 50 x 50 to 610 x 508mm

Dual rail transmission 50 x 50 to 610 x 430mm

PCB thickness standard 0.3 to 4.5mm (others can be provided on request)

Feeding quantity: 90 pieces of 8mm rails

Component range 01005″ – 200 x 125mm

Quality Pickup Rate: >/= 99.95%

DPM Rate: Setting Power Supply 200/ 208/ 230/ 380/ 400/ 415VAC ±5%, 50/60Hz

Air supply 5.5bar (0.55MPa) – 10bar (1.0MPa)

Siemens pick and place machine D1: Size: 1587 x 2636 x 1980mm (length x height x width)

Siemens placement machine D1: mass 2325kg (basic machine with 2 feeders)

Shipping & Delivery

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

  • Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
  • Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
  • Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

Reviews

There are no reviews yet.

Be the first to review “SMT placement machine SIPLACE ASM Siemens D4/D3/D2/D1 high-speed placement machine”

Your email address will not be published. Required fields are marked *

Related products

SMT placement machine Siemens ASM SIPLACE HS50 high-speed placement machine

,
1. The size of the parts that can be attached: from 0201 (0.25mmx0.5mm) to 18.7mmx18.7mm. 2. The types of parts that can be loaded at one time: 144 types (8mm parts). 3. SMT speed: 50,000 parts/hour. 4. Chip accuracy: ±0.075 (at 4sigma). 5. Material station: 144
Enquiry

Yamaha Premium High-efficiency Modular YRM20 Mounter placement machine

,

Specifications

Model YRM20
Super high-speed rotary RM head High-speed general-purpose in-line HM head Odd-shaped components in-line FM (flexible-multi) head
Nozzles (per 1 head unit) 18 10 5
Applicable components 0201mm to W12 x L12mm, Height 6.5mm or less 0201mm to W55 x L100mm, Height 15mm or less 03015mm to W55 x L100mm, Height 30mm or less
Mounting capability under optimum conditions (in high production mode) 2-beam : 115,000CPH (under optimum conditions) 1-beam : 57,500CPH (under optimum conditions) 2-beam : 98,000CPH (under optimum conditions) 1-beam : 49,000CPH (under optimum conditions) 2-beam : 35,000CPH (under optimum conditions) 1-beam : 17,500CPH (under optimum conditions)
Mounting accuracy (high-accuracy mode) ±0.025mm Cpk≧1.0 (under optimum conditions) ±0.035mm Cpk≧1.0 (under optimum conditions)
Number of component types Feeder carriage exchange : Max. 128 types = 32 feeders x 4 (conversion for 8mm tape feeder) Fixed plate : Max. 128 types (conversion for 8mm tape feeder), Trays : 60 types (maximum when equipped with eATS30 x 2)
PCB dimensions 1-beam : (Single lane) Standard specifications : L50 x W50mm to L510 x W510mm, option : L50 x W50mm to L810 x W510mm 2-beam : (Dual stage) 1-PCB conveyance : L50 x W50mm to L810 x W510mm, 2-PCB conveyance : L50 x W50mm to L380 x W510mm
Power supply 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source 0.45MPa or more, in clean, dry state
External dimension (excluding projections) L1,374 x W1,948 x H1,445mm
Weight 2-beam : Approx. 2,250kg (Main unit only), 1-beam : Approx. 2,150kg (Main unit only)
Enquiry

Panasonic CM202 placement machine Mounter

,
Main parameters of CM202 placement machine: 2004 equipment PCB size: 460mm×360mm Component range that can be attached: 0201 to 24mmQFPS Material station: 104 Theoretical placement speed: 0.088s/chip 40909 pieces/hour Mounting accuracy: ±0.05mm Dimensions and Weight: 2,350(L) X 1,950(D) X 1,430(H)mm&2,800kg Power supply and air source: 3P/200V±10V/3KVa
Enquiry

SMT placement machine Panasonic/Panasonic BM231 placement machine

,
Panasonic's BM231 modular high-speed multi-function placement machine has any volume, any mix capability by placing various components from 0402 (01005) microchips to BGAs, CSPs and connectors. Maximum productivity is achieved through uninterrupted operation and quick changeovers.
Enquiry

SMT ASM Siemens Mounter HS60/SIPLACE High Speed Mounter

,
Number of gantry: 4 Theoretical placement rate: 60000cph Component range: 0.6mmx0.3mm (0201) to 18.7mmx18.7mm Mounting accuracy (4sigma): 80/75um The size of the PCB that can be attached: Single track: 50mmx50mm to 368mmx460mm
Enquiry

Panasonic Mounter NPM-TT2 multifunctional production system placement machine

,
The Panasonic Mounter NPM-TT2 is a line configuration capable of achieving both high productivity per unit area and versatility *When directly connecting the NPM-W2, an M-size double-track conveyor belt (optional) is required. The placement head (8-nozzle placement head, 3-nozzle placement head - you can choose the general-purpose 8-nozzle placement head or the 3-nozzle placement head with special-shaped component capability) The specification of the supply part can be selected .change. By reorganizing the tray feeder/exchange trolley, the line configuration can be adapted to the component supply form. Using a multi-functional recognition camera, the recognition and inspection of the height direction of the components can be realized at a high speed, and it can carry out stable and high-speed mounting of special-shaped components) Alternate mounting and independent mounting correspondence ——(can choose the best mounting method corresponding to the production substrate)
Enquiry

Yamaha 3D Hybrid Modular S10/S20 Mounter placement machine

,

Specifications

S10 S20
Board size(with buffer unused) Min. L50 x W30mm to Max. L1,330 x W510mm (Standard L955) Min. L50 x W30mm to Max. L1,830 x W510mm (Standard L1,455)
Board size(with input or output buffer used) Min. L50 x W30mm to Max. L420 x W510mm -
Board size(with input and output buffers used) Min. L50 x W30mm to Max. L330 x W510mm Min. L50 x W30mm to Max. L540 x W510mm
Board thickness 0.4 - 4.8mm 0.4 - 4.8mm
Board flow direction Left to right (Std) Left to right (Std)
Board transfer speed Max 900mm/sec Max 900mm/sec
Placement speed (12 heads + 2 theta) Opt. Cond. 0.08sec/CHIP (45,000CPH) 0.08sec/CHIP (45,000CPH)
Placement accuracy A (μ+3σ) CHIP +/-0.040mm CHIP +/-0.040mm
Placement accuracy B (μ+3σ) IC +/-0.025mm IC +/-0.025mm
Placement angle +/-180 degrees +/-180 degrees
Z axis control / Theta axis control AC servo motor AC servo motor
Component height Max 30mm*1 (Pre-placed components: max 25mm) Max 30mm*1 (Pre-placed components: max 25mm)
Applicable components 0201mm – 120x90mm, BGA, CSP, connector, etc. (Standard 01005 -) 0201mm – 120x90mm, BGA, CSP, connector, etc. (Standard 01005 -)
Component package 8 - 56mm tape (F1/F2 Feeders), 8 - 88mm tape (F3 Electric Feeders), stick, tray 8 - 56mm tape (F1/F2 Feeders), 8 - 88mm tape (F3 Electric Feeders), stick, tray
Drawback check Vacuum check and vision check Vacuum check and vision check
Screen language English, Chinese, Korean, Japanese English, Chinese, Korean, Japanese
Board positioning Board grip unit, front reference, auto conveyor width adjustment Board grip unit, front reference, auto conveyor width adjustment
Component types Max 90 types (8mm tape), 45 lanes x 2 Max 180 types (8mm tape), 45 lanes x 4
Transfer height 900 +/- 20mm 900 +/- 20mm
Machine dimensions, weight L1250xD1750xH1420mm, Approx. 1,200kg L1750xD1750xH1420mm, Approx. 1,500kg
*1 :
Board thickness + Component height = Max 30mm
Specifications and appearance are subject to change without prior notice.
Enquiry

SMT placement machine Samsung placement machine SM471Plus

,
High-performance chip shooter with a new fly camera · World's highest speed of 78,000CPH among chip shooters of the same class · With two gantry dual-lane construction, supports various production modes

Specifications

Alignment
Fly Camera
Spindle & Speed
2 Gantry * 10 Spindle / 78,000 CPH
Accuracy
±40μm@±3σ (Chip) / ±50μm@±3σ (QFP)
Component Range
0402 ~ □14mm
Dimension
L 1,650 x D 1,690 x H 2,045
Enquiry
