| Model | SAP-400 | SAP-600 | SAP-1200 | SAP-1500 |
| control module | PLC Industrial control | PLC Industrial control | PLC Industrial control | PLC Industrial control |
| Dimensions | 700x900x1680mm | 900x900x1680mm | 1500x900x1680mm | 1800x900x1680mm |
| work table | 500x320mm | 700x320mm | 1300x320mm | 1600x320mm |
| Stencil allowable size | 600x450mm | 800x450mm | 1400x450mm | 1700x450mm |
| power supply and load | 220v/0.3kw | 220v/0.3kw | 220v/0.3kw | 220v/0.3kw |
| Air pressure and flow | 4-6bar，≤10L/minute | 4-6bar，≤10L/minute | 4-6bar，≤10L/minute | 4-6bar，≤10L/minute |
| main cylinder | SC63x150-S | SC63x150-S | SC63x150-S | SC63x150-S |
| squeegee head cylinder | CDU25x50 | CDU25x50 | CDU25x50 | CDU25x50 |
| slide guide | Linear Guides | Linear Guides | Linear Guides | Linear Guides |
| Printing accuracy | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm |
| fine-tuning range | ±10mm | ±10mm | ±10mm | ±10mm |
| move motor | three phase 60W | three phase 60W | three phase 60W | three phase 60W |
| voltage | single phase 220V | single phase220V | single phase220V | single phase220V |
| moving speed | 0~2200mm/min | 0~2200mm/min | 0~2200mm/min | 0~2200mm/min |
| Fault detection | I/O Signal Detection | I/O Signal Detection | I/O Signal Detection | I/O Signal Detection |
| direction of movement | move left and right | move left and right | move left and right | move left and right |
| equipment weight | 195kg | 245kg | 280kg | 340kg |

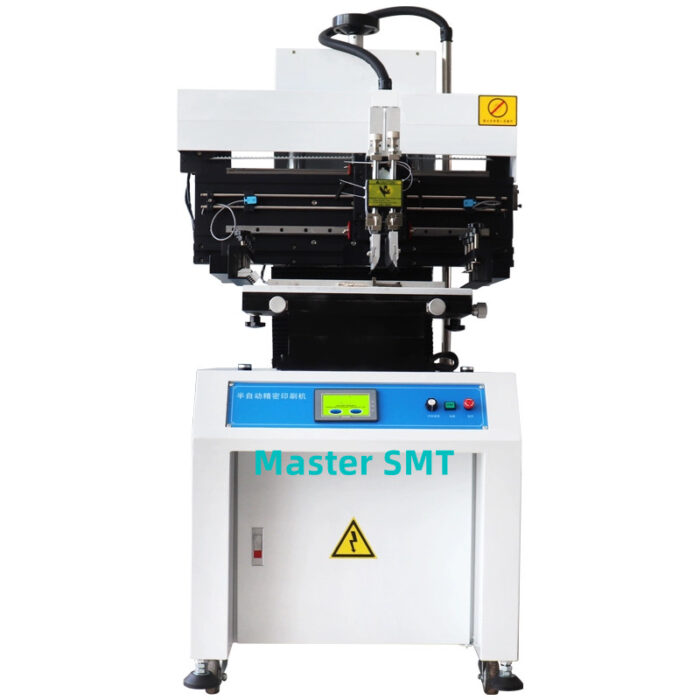

SMT semi-automatic solder paste printing machine
