HITACHI GXH-1S - DIRECT DRIVE MODULAR MOUNTER PICK AND PLACE MACHINE
Back to products

Sony G200BB pick and place machine MOUNTER

Enquiry
Categories: ,
Description

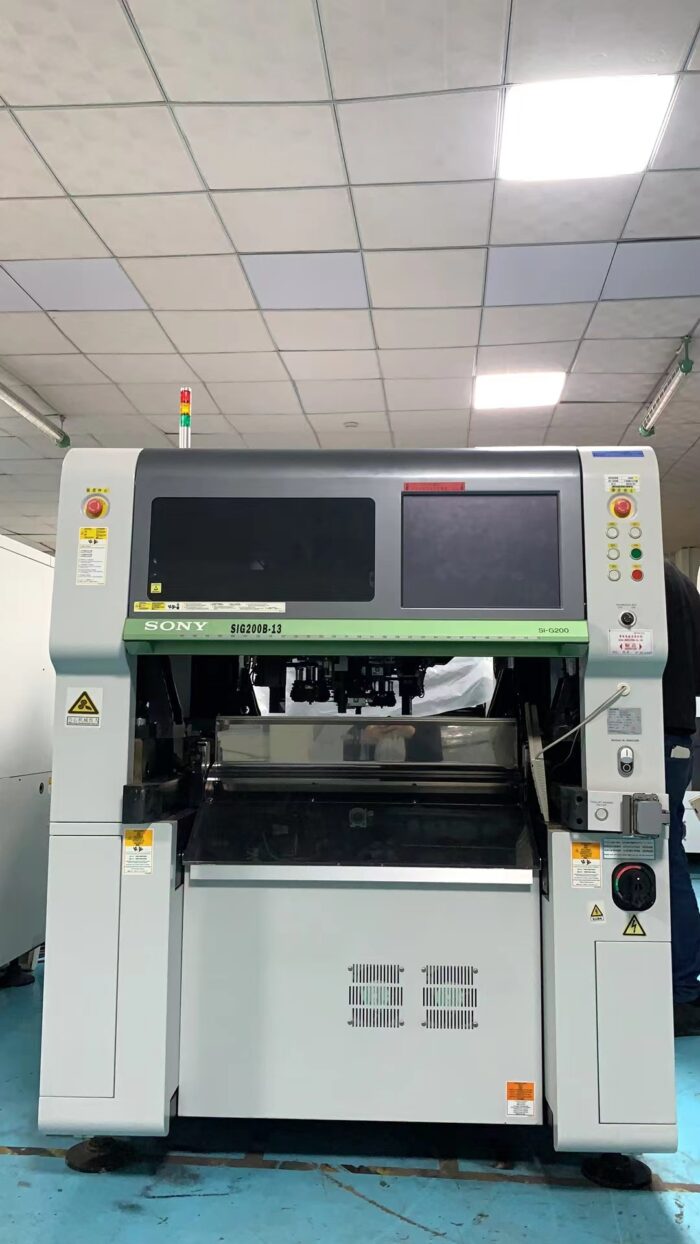

Model SI-G200BB
Weight 2300KG
Dimension 1220*1850*1575mm
PCB direction L to R; R to L
Machine height 900mm+30,-10
Speed 45,000CPH
Best speed 0 . 08S  ( flying camera)
1. 0S     (fixed camera)
Precision ±0.045um(3δ)
Applicable components 0402~□12mm（flying camera）
□6mm~□25mm（fixed camera/option）
*Thickness<1mm,>6mm
Feeder quantity Mechnical Feeder: 80pcs
Electric Feeder:116pcs
Nozzle 12 nozzles
PCB size Min:5 0 × 50mm
Max:4 6 0 × 410mm
Thickness:0.5~~3.0mm
Power supply 3phrase　2 0 0V ± 10% 5 0 /60Hz      15A
Air comsuption 0.5L/min
Shipping & Delivery

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

  • Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
  • Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
  • Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

Reviews

There are no reviews yet.

Be the first to review “Sony G200BB pick and place machine MOUNTER”

Your email address will not be published. Required fields are marked *

Related products

Yamaha Premium High-efficiency Modular YRM20 Mounter placement machine

,

Specifications

Model YRM20
Super high-speed rotary RM head High-speed general-purpose in-line HM head Odd-shaped components in-line FM (flexible-multi) head
Nozzles (per 1 head unit) 18 10 5
Applicable components 0201mm to W12 x L12mm, Height 6.5mm or less 0201mm to W55 x L100mm, Height 15mm or less 03015mm to W55 x L100mm, Height 30mm or less
Mounting capability under optimum conditions (in high production mode) 2-beam : 115,000CPH (under optimum conditions) 1-beam : 57,500CPH (under optimum conditions) 2-beam : 98,000CPH (under optimum conditions) 1-beam : 49,000CPH (under optimum conditions) 2-beam : 35,000CPH (under optimum conditions) 1-beam : 17,500CPH (under optimum conditions)
Mounting accuracy (high-accuracy mode) ±0.025mm Cpk≧1.0 (under optimum conditions) ±0.035mm Cpk≧1.0 (under optimum conditions)
Number of component types Feeder carriage exchange : Max. 128 types = 32 feeders x 4 (conversion for 8mm tape feeder) Fixed plate : Max. 128 types (conversion for 8mm tape feeder), Trays : 60 types (maximum when equipped with eATS30 x 2)
PCB dimensions 1-beam : (Single lane) Standard specifications : L50 x W50mm to L510 x W510mm, option : L50 x W50mm to L810 x W510mm 2-beam : (Dual stage) 1-PCB conveyance : L50 x W50mm to L810 x W510mm, 2-PCB conveyance : L50 x W50mm to L380 x W510mm
Power supply 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source 0.45MPa or more, in clean, dry state
External dimension (excluding projections) L1,374 x W1,948 x H1,445mm
Weight 2-beam : Approx. 2,250kg (Main unit only), 1-beam : Approx. 2,150kg (Main unit only)
Enquiry

Yamaha Premium Modular Σ-F8S Mounter placement machine

,

Specifications

Σ-F8S
Applicable PCB Single lane : L330 x W250 to L50 x W50mm (Option : L381 x W510 to L50 x W50mm) Dual lane : L330 x W250 to L50 x W50mm
Head/Applicable components High-speed head : 0201mm CHIP to 4.3 x 3.4mm, Height 2.0mm or less High-speed multi-purpose head : 03015mm CHIP to 33mm square, Height 12.7mm or less
Mounting capability High-speed head x 4 specs : 150,000CPH (Dual lane) 136,000CPH (Single lane)
Mounting accuracy (Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used) High-speed head : 0201mm/03015mm : ±25μm (3σ) (140,000CPH) 0402mm/0603mm : ±36μm (3σ) (150,000CPH)
Number of component types Max.80 types (conversion for 8mm tape feeder)
Power supply 3-Phase AC200V ±10% 50/60Hz
Air supply source 0.45 to 0.69MPa (4.6 to 7kgf/cm2)
External dimension L 1,280 x W 2,240 x H 1,450mm (excluding projections)
Weight Approx. 1,940kg
Specifications and appearance are subject to change without prior notice.
Enquiry

Yamaha 3D Hybrid Modular S10/S20 Mounter placement machine

,

Specifications

S10 S20
Board size(with buffer unused) Min. L50 x W30mm to Max. L1,330 x W510mm (Standard L955) Min. L50 x W30mm to Max. L1,830 x W510mm (Standard L1,455)
Board size(with input or output buffer used) Min. L50 x W30mm to Max. L420 x W510mm -
Board size(with input and output buffers used) Min. L50 x W30mm to Max. L330 x W510mm Min. L50 x W30mm to Max. L540 x W510mm
Board thickness 0.4 - 4.8mm 0.4 - 4.8mm
Board flow direction Left to right (Std) Left to right (Std)
Board transfer speed Max 900mm/sec Max 900mm/sec
Placement speed (12 heads + 2 theta) Opt. Cond. 0.08sec/CHIP (45,000CPH) 0.08sec/CHIP (45,000CPH)
Placement accuracy A (μ+3σ) CHIP +/-0.040mm CHIP +/-0.040mm
Placement accuracy B (μ+3σ) IC +/-0.025mm IC +/-0.025mm
Placement angle +/-180 degrees +/-180 degrees
Z axis control / Theta axis control AC servo motor AC servo motor
Component height Max 30mm*1 (Pre-placed components: max 25mm) Max 30mm*1 (Pre-placed components: max 25mm)
Applicable components 0201mm – 120x90mm, BGA, CSP, connector, etc. (Standard 01005 -) 0201mm – 120x90mm, BGA, CSP, connector, etc. (Standard 01005 -)
Component package 8 - 56mm tape (F1/F2 Feeders), 8 - 88mm tape (F3 Electric Feeders), stick, tray 8 - 56mm tape (F1/F2 Feeders), 8 - 88mm tape (F3 Electric Feeders), stick, tray
Drawback check Vacuum check and vision check Vacuum check and vision check
Screen language English, Chinese, Korean, Japanese English, Chinese, Korean, Japanese
Board positioning Board grip unit, front reference, auto conveyor width adjustment Board grip unit, front reference, auto conveyor width adjustment
Component types Max 90 types (8mm tape), 45 lanes x 2 Max 180 types (8mm tape), 45 lanes x 4
Transfer height 900 +/- 20mm 900 +/- 20mm
Machine dimensions, weight L1250xD1750xH1420mm, Approx. 1,200kg L1750xD1750xH1420mm, Approx. 1,500kg
*1 :
Board thickness + Component height = Max 30mm
Specifications and appearance are subject to change without prior notice.
Enquiry

Yamaha Premium Modular Σ-G5SⅡ Mounter placement machine

,

Specifications

∑-G5SⅡ
Applicable PCB Single lane L610×W510 mm to L50×W50 mm (Optional: L1,200×W510 to L50×W50 mm)
Dual lane L610×W250 mm to L50×W84mm (dual feed) L610×W415mm (single feed)
Mounting capability High-Speed Multi-Head×2 specifications: 90,000 CPH (single lane/dual lane)
Mounting accuracy (Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used) High-Speed Multi (HM) Head 0201mm/03015mm: ±25μm/80,000 CPH 0402mm: ±36 μm/85,000 CPH 0603mm: ±40 μm/90,000 CPH
Flexible Multi (FM) Head ±15μm
Applicable components High-Speed Multi (HM) Head 0201mm to L44×W44×H12.7 mm or under
Flexible Multi (FM) Head 1005mm to L72×W72×H25.4 mm or under Connector: 150×26 mm
Number of component types 120 types max. (8 mm wide tape equivalent)
Power supply 3-phase AC200V ±10%, 50/60Hz
Air supply source 0.45 to 0.69 MPa (4.6 to 7 kgf/cm²)
External dimension (excluding projections) L 1,280 x W 2,240 x H 1,450mm
Weight Approx. 1,800 kg
Specifications and appearance are subject to change without prior notice.

Enquiry

Samsung Hanwha High Speed ​​Mounter DECANS2

,

Specifications

Alignment
Fly Camera, Fix Camera
Spindle & Speed
2 Gantry * 10 Spindle / 92,000 CPH
Accuracy
±28 μm @ Cpk ≥ 1.0 (03015 Chip) / ±25 μm @ Cpk ≥ 1.0(IC)
Component Range
Fly: 03015 ~ □12 mm / Fix: ~□42 mm (Standard) / ~□55 mm (MFOV) / ~ L75 mm Connector (MFOV)
Dimension
L 1,430 x D 1,740 x H 1,995
Enquiry

SMT Samsung Mounter SM481Plus 481

,

Specifications

Alignment
Fly Camera + Fix Camera (Option)
Spindle & Speed
1 Gantry * 10 Spindle / 40,000 CPH
Accuracy
±40μm@±3σ (Chip) / ±30μm@±3σ(QFP)
Component Range
Fly: 0402 ~ □16mm / Fix: ~□55mm, L75mm Connector
Dimension
L 1,650 x D 1,680 x H 2,090
σ/QFP
Enquiry

Panasonic NPM-W2 Multifunctional Mounter placement machine

,
Product Features of Panasonic NPM-W2 Multi-Function Mounter 1. Install & inspect a complete system to achieve efficient and high-quality production To match the actual installation requirements, you can choose high-yield or high-precision mode 2. Can correspond to larger substrates and large components Correspondingly, on a large substrate of 750×550 mm, the component range is also expanded to L150×W25×T30mm 3. Double-track installation (select specifications) to achieve high productivity per unit area According to the production substrate, you can choose independent mounting, alternate mounting, mixed mounting and other mounting methods
Enquiry

Super High Efficiency Dual Lane Modular YRM20DL Mounter placement machine

,

Specifications

Model YRM20
Super high-speed rotary RM head High-speed general-purpose in-line HM head Odd-shaped components in-line FM (flexible-multi) head
Nozzles (per 1 head unit) 18 10 5
Applicable components 0201mm to W12 x L12mm, Height 6.5mm or less 0201mm to W55 x L100mm, Height 15mm or less 03015mm to W55 x L100mm, Height 30mm or less
Mounting capability (under optimum conditions) 120,000CPH Note 1 100,000CPH Note 1 35,000CPH
Mounting accuracy (under optimum conditions) ±0.015mm Cpk≧1.0 Note 2 ±0.035mm Cpk≧1.0
Number of component types Feeder carriage exchange : Max. 128 types = 32 feeders x 4 (conversion for 8mm tape feeder) Fixed plate : Max. 128 types (conversion for 8mm tape feeder), Trays : 60 types (maximum when equipped with eATS30 x 2)
PCB dimensions Single use : L50 x W50mm to L810 x W610mm Dual use : L50 x W50mm to L810 x W330mm
Power supply 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source 0.45MPa or more, in clean, dry state
External dimension (excluding projections) L1,374 x W2,102 x H1,445mm
Weight Approx. 2,550kg (Main unit only)
Enquiry
