Unicomp Off-line X-Ray SMD Chip Counting System CX7000L

All X-ray machines manufactured by Unicomp Technology meet the FDA-CDRH Regulation CFR 21 1020.40 Subchapter J for cabinet x-ray systems. The FDA – CDRH standard for cabinet x-ray systems states that radiation emission will not exceed. 5millirem a /hr.2″from any external surface. Our machines (Leakage <1μSv/h) are typically 5-10 times less than the international standards

Application Fields





Reels
 Accuracy Others Components Accuracy
01005 99.99% Transistors 99.99%
0201 99.99% Bulks 99.99%
0402 99.99% ESD Packages 99.9%
0603 99.99% Tubus 100%
0805 99.99% JEDEC TRAY 100%
1206 99.99% Other Resistance & Capacity 99.99%
Enquiry
Category:
Description

Technical Specifications

System Summary
Footprint 800(W)×1380(D)×1950(H)mm Plywood Packing Szie 900(W)×1460(D)×2090(H)mm
Machine Weight 800 kg Packing Weight 1000 kg
Power Spupply AC 110/220V, 50/60Hz Power Consumption Max. 1.5kW
X-Ray Tube
Tube Type Sealed Current Max. 1000 μA
Voltage Max. 50 kV Focus Spot Size 0.03 mm
Imaging System
Detector Flat Panel Detector (FPD) Pixel Size 139 μm
Effective Inspection Area 430*430mm Frame Rates 6 fps
Pixel Matrix 3072*3072 pixel AD Conversion 16 bits
Inspection Ability Industrial PC
Tape & Reel size 7’’-17’’ Monitor 27’’ FHD LCD Display
Scan Height ≤ 80mm System OS Windows 10 64bit
Inspection Min. Component 1005 Hard Disk 256G (SSD) + 1T (HDD)
Inspection Accuracy ≥ 99.99% RAM 16 GB
Inspection Speed ＜10s/Tape & Reel (7’’-17’’)
＜10s (7’’*4 Tape & Reel )		 CPU Model Intel i7 Processor
Support Connection with MES, ERP and WMS Intelligent Storage System.
Other Features
Door Open Auto-door Feeding Method Manual
Inspection Method Off-line X-Ray Safety <1μSv/h (Meets All International Standards)
Radiation Monitoring Safety Protection, Real-time Monitoring of Radiation Authority Management Fingerprint Access Management System, and Support Password Accessing.

X-Ray Safety: All X-ray machines manufactured by Unicomp Technology meet the FDA-CDRH Regulation CFR 21 1020.40 Subchapter J for cabinet x-ray systems. The FDA – CDRH standard for cabinet x-ray systems states that radiation emission will not exceed. 5millirem a /hr.2″from any external surface. Our machines (Leakage <1μSv/h) are typically 5-10 times less than the international standards

* Specifications are subject to change without notice, All trademarks are the property of the system maker.

Shipping & Delivery

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

  • Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
  • Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
  • Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

Reviews

There are no reviews yet.

Be the first to review “Unicomp Off-line X-Ray SMD Chip Counting System CX7000L”

Your email address will not be published. Required fields are marked *

Related products

Nordson DAGE XD7600NT Ruby X-Ray Inspection System

XD7600NT RUBY X-RAY INSPECTION SYSTEM DESCRIPTION: The Benchmark for Demanding Production Applications. Nordson DAGE, the only X-ray company whose focus
Enquiry

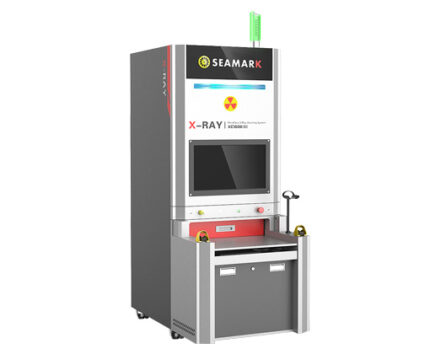

XC1000 Offline X-RAY Reel Counter

XC1100 is a micro-focus X-ray full-automatic counting machine. It uses X-Ray perspective principle and independently developed algorithm software with AI function, which can quickly and accurately calculate the number of materials in the material reel. This X-Ray Counter also has MES Data upload and automatic printing of material labels. To achieve the function of improving work efficiency and saving manpower.

Product Features

  • Compared with traditional counting/pointing machine, there is no need to unpack or transfer the reel in the X-Ray Counter.
  • Suitable for all types of chip components, SMD devices above 01005.
  • Accuracy of counting reaches more than 99.99%.
  • Measurable reel diameter is 7-15 inches.
  • Innovative detection environment and algorithm with AI function.
  • Realize automatic counting.
Enquiry

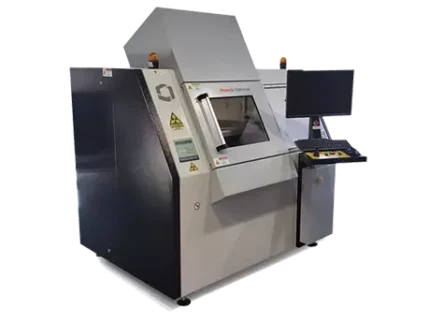

Phoenix X|aminer System X-Ray Inspection System

Phoenix X|aminer – Industrial Microfocus X-Ray Inspection System Super high price-performance ratio NDT X-ray AXI system Extremely easy to use
Enquiry

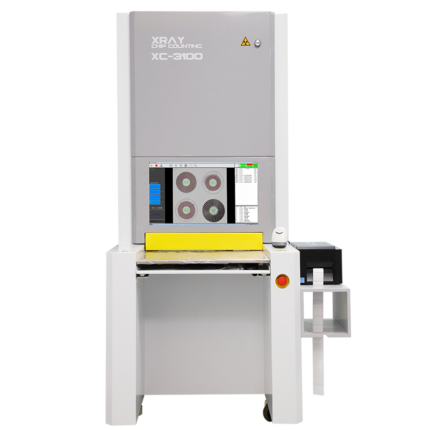

Offline X-RAY Counter_XC-3100

XC-3100 is a new type of X-ray spotting machine, used to quickly count the reel materials in the SMT industry, with an accuracy of 99.99% and a four-reel inspection speed of only 7-14S.
Enquiry

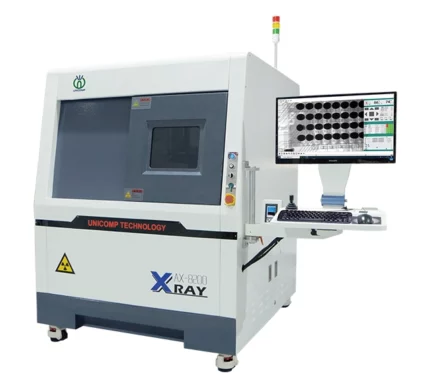

AX8200MAX X-Ray Inspection Equipment
