Universal Instruments Genesis GX-11S Pick & Place Machine
Back to products

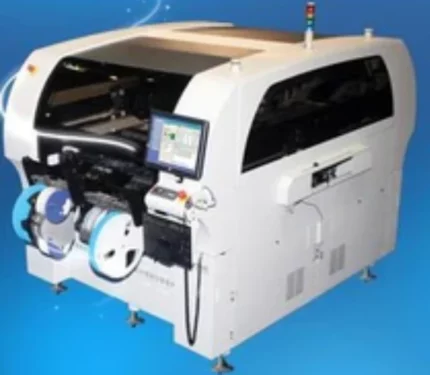

Universal Instruments Genesis mounter GX-37D Pick & Place Machine

Universal Instruments Genesis GI-14D Pick & Place Machine

Enquiry
Categories: ,
Description

Model GI-14D
Chip speed (cph(sec/component)) up to 30,750 (0.117)
1-Bd, IPC wafer (1608) 21,750 (0.166)
Precision (micron@1.33Cpk/1.00Cpk) wafer ±60/±45
IC ±45/±34
Board Dimensions (mm (inches))
Maximum (W×L) 610*1×813*2(24×32)
Minimum (W×L×H) 50.8×50.8×0.508(2×2×0.02)
Maximum mass (kg (lb)) 2.72 (6.0)/6.8*2(15.0)
Topside Clearance (mm ( “) 26.5 (1.04)
Component range (mm (inch)) Maximum (width x length x height) 150 x 150 x 25 * 3 (5.90 x 5.90 x 0.98)
Minimum (width x length x height) 0.25 x 0.5 x 0.15 (0.001 x 0.002 x 0.006)
Heaviest (g) 27.0/130.0*4
Machine size (mm (inch)) length × depth × height 1676 × 2248 × 1930 (66.0 × 88.5 × 75.90)
Machine weight (kg/lb) 3500(7700)
Feeder Type Tape, Tray, Tube, Strip, Bowl, Shaped, Wafer, Format, gel pak
*1 Requires wide plate tool option

*2 Requires use of the extension plate tool option

*3 Please refer to the General Instructions for component specifications

*4 Request specific application quotes

Shipping & Delivery

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

  • Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
  • Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
  • Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

Reviews

There are no reviews yet.

Be the first to review “Universal Instruments Genesis GI-14D Pick & Place Machine”

Your email address will not be published. Required fields are marked *

Related products

Panasonic Mounter NPM-TT2 multifunctional production system placement machine

,
The Panasonic Mounter NPM-TT2 is a line configuration capable of achieving both high productivity per unit area and versatility *When directly connecting the NPM-W2, an M-size double-track conveyor belt (optional) is required. The placement head (8-nozzle placement head, 3-nozzle placement head - you can choose the general-purpose 8-nozzle placement head or the 3-nozzle placement head with special-shaped component capability) The specification of the supply part can be selected .change. By reorganizing the tray feeder/exchange trolley, the line configuration can be adapted to the component supply form. Using a multi-functional recognition camera, the recognition and inspection of the height direction of the components can be realized at a high speed, and it can carry out stable and high-speed mounting of special-shaped components) Alternate mounting and independent mounting correspondence ——(can choose the best mounting method corresponding to the production substrate)
Enquiry

Yamaha 3D Hybrid Modular S10/S20 Mounter placement machine

,

Specifications

S10 S20
Board size(with buffer unused) Min. L50 x W30mm to Max. L1,330 x W510mm (Standard L955) Min. L50 x W30mm to Max. L1,830 x W510mm (Standard L1,455)
Board size(with input or output buffer used) Min. L50 x W30mm to Max. L420 x W510mm -
Board size(with input and output buffers used) Min. L50 x W30mm to Max. L330 x W510mm Min. L50 x W30mm to Max. L540 x W510mm
Board thickness 0.4 - 4.8mm 0.4 - 4.8mm
Board flow direction Left to right (Std) Left to right (Std)
Board transfer speed Max 900mm/sec Max 900mm/sec
Placement speed (12 heads + 2 theta) Opt. Cond. 0.08sec/CHIP (45,000CPH) 0.08sec/CHIP (45,000CPH)
Placement accuracy A (μ+3σ) CHIP +/-0.040mm CHIP +/-0.040mm
Placement accuracy B (μ+3σ) IC +/-0.025mm IC +/-0.025mm
Placement angle +/-180 degrees +/-180 degrees
Z axis control / Theta axis control AC servo motor AC servo motor
Component height Max 30mm*1 (Pre-placed components: max 25mm) Max 30mm*1 (Pre-placed components: max 25mm)
Applicable components 0201mm – 120x90mm, BGA, CSP, connector, etc. (Standard 01005 -) 0201mm – 120x90mm, BGA, CSP, connector, etc. (Standard 01005 -)
Component package 8 - 56mm tape (F1/F2 Feeders), 8 - 88mm tape (F3 Electric Feeders), stick, tray 8 - 56mm tape (F1/F2 Feeders), 8 - 88mm tape (F3 Electric Feeders), stick, tray
Drawback check Vacuum check and vision check Vacuum check and vision check
Screen language English, Chinese, Korean, Japanese English, Chinese, Korean, Japanese
Board positioning Board grip unit, front reference, auto conveyor width adjustment Board grip unit, front reference, auto conveyor width adjustment
Component types Max 90 types (8mm tape), 45 lanes x 2 Max 180 types (8mm tape), 45 lanes x 4
Transfer height 900 +/- 20mm 900 +/- 20mm
Machine dimensions, weight L1250xD1750xH1420mm, Approx. 1,200kg L1750xD1750xH1420mm, Approx. 1,500kg
*1 :
Board thickness + Component height = Max 30mm
Specifications and appearance are subject to change without prior notice.
Enquiry

High-efficiency Modular Z:LEX YSM20WR Mounter placement machine

,

Specifications

Model YSM20WR
Applicable PCB Dual lane Note 1 Same type PCBs: L810 x W356 to L50 x W50 Different type PCBs: up to L810 x W662 Note 2 Same type PCB: L810 x W280 to L50 x W500 Different type PCBs: up to L810 x W510
Head / Applicable components High-Speed Multi (HM) Head Note 3 0201mm to W55 x L100mm, Height 15mm or less Odd-shaped components (FM: Flexible Multi) head: 03015mm to W55 x L100mm, Height 28mm or less
Mounting capability (under optimum conditions as defined by Yamaha Motor) X axis 2-beam Note 1: High-speed multi-purpose (HM: High-speed Multi) head x 2 81,000CPH
Mounting accuracy ±0.035mm (±0.025mm) Cpk≧1.0 (3σ) (under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used)
Number of component Types Fixed plate: Max. 140 types (conversion for 8mm tape feeder) Feeder carriage exchange: Max. 128 types (conversion for 8mm tape feeder) Trays for 30 types (Fixed type: max., when fitted with sATS30) and 10 types (Carriage type: max., when fitted with cATS10)
Power supply 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source 0.45MPa or more, in clean, dry state
External dimension (excluding projections) L 1,374 x W 2,110 x H1,445mm (Main unit only)
Weight Approx. 2,500kg (Main unit only)
Note 1 : When using conveyor separation specifications of 787mm between 1 to 4 lanes
Note 2 : When using conveyor separation specifications of 630mm between 1 to 4 lanes
Note 3 : Please contact us for info regarding mounting 0201mm components.
Specifications and appearance are subject to change without prior notice.
Enquiry

Yamaha Premium Modular Σ-F8S Mounter placement machine

,

Specifications

Σ-F8S
Applicable PCB Single lane : L330 x W250 to L50 x W50mm (Option : L381 x W510 to L50 x W50mm) Dual lane : L330 x W250 to L50 x W50mm
Head/Applicable components High-speed head : 0201mm CHIP to 4.3 x 3.4mm, Height 2.0mm or less High-speed multi-purpose head : 03015mm CHIP to 33mm square, Height 12.7mm or less
Mounting capability High-speed head x 4 specs : 150,000CPH (Dual lane) 136,000CPH (Single lane)
Mounting accuracy (Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used) High-speed head : 0201mm/03015mm : ±25μm (3σ) (140,000CPH) 0402mm/0603mm : ±36μm (3σ) (150,000CPH)
Number of component types Max.80 types (conversion for 8mm tape feeder)
Power supply 3-Phase AC200V ±10% 50/60Hz
Air supply source 0.45 to 0.69MPa (4.6 to 7kgf/cm2)
External dimension L 1,280 x W 2,240 x H 1,450mm (excluding projections)
Weight Approx. 1,940kg
Specifications and appearance are subject to change without prior notice.
Enquiry

Panasonic Mounter CM602-L high-speed placement machine

,
Control mode: microcomputer mode External memory: Manage data at PT∗4. Each set of data requires about 1MB. (1 type is required for each 1 type 3.5 2HD floppy disk) Program data: Points Max. 10000 points CM602 power supply Power supply for normal use: 3-phase AC 200 V/ 220 V ±10 V, 3-phase AC 380 V/ 400 V/ 420 V/ 480 V ±20 V Frequency: 50/60 Hz Power supply for HUB ∗ 3: Single-phase AC 100 V ~ AC 240 V Frequency: 50/60 Hz Rated capacity: main machine 4.0 kVA / HUB power supply ∗ 3: 140 VA Supply air pressure: 0.49 MPa ~ 0.78 MPa (operating air pressure is 0.49 MPa ~ 0.54 MPa) Supply air volume: 170 L/min (A.N.R.) Dimensions: 2350 mm (W) × 2690 mm (D) × 1430 mm (H) (excluding 3-section signal tower and color touch panel) quality: Mass of the main engine: 3400 kg (140 kg for the standard configuration without the overall exchange trolley) Overall exchange trolley mass: 140 kg (per 1) Direct tray feeder mass: 195 kg (per 1 unit) Standard composition mass: 3960 kg (1 main engine, 4 overall exchange trolleys) Environmental conditions: Temperature: 10°C ~ 35°C Humidity: 25% RH ~ 75% RH (but water vapor does not condense) Transport and storage conditions: Temperature: −20°C ~ 60°C Humidity: Below 75 % RH (but water vapor does not condense) Altitude: from 0 m above sea level to below 1000 m Noise: < 70dB (A)
Enquiry

Panasonic NPM-D3 placement machine Panasonic high-speed module placement machine

,
1. Panasonic NPM-D3 placement machine, Panasonic placement machine NPM-D3, Panasonic high-speed module placement machine parameters: 1. Model name: NPM-D3 (Panasonic
Enquiry

Yamaha Premium High-efficiency Modular YRM20 Mounter placement machine

,

Specifications

Model YRM20
Super high-speed rotary RM head High-speed general-purpose in-line HM head Odd-shaped components in-line FM (flexible-multi) head
Nozzles (per 1 head unit) 18 10 5
Applicable components 0201mm to W12 x L12mm, Height 6.5mm or less 0201mm to W55 x L100mm, Height 15mm or less 03015mm to W55 x L100mm, Height 30mm or less
Mounting capability under optimum conditions (in high production mode) 2-beam : 115,000CPH (under optimum conditions) 1-beam : 57,500CPH (under optimum conditions) 2-beam : 98,000CPH (under optimum conditions) 1-beam : 49,000CPH (under optimum conditions) 2-beam : 35,000CPH (under optimum conditions) 1-beam : 17,500CPH (under optimum conditions)
Mounting accuracy (high-accuracy mode) ±0.025mm Cpk≧1.0 (under optimum conditions) ±0.035mm Cpk≧1.0 (under optimum conditions)
Number of component types Feeder carriage exchange : Max. 128 types = 32 feeders x 4 (conversion for 8mm tape feeder) Fixed plate : Max. 128 types (conversion for 8mm tape feeder), Trays : 60 types (maximum when equipped with eATS30 x 2)
PCB dimensions 1-beam : (Single lane) Standard specifications : L50 x W50mm to L510 x W510mm, option : L50 x W50mm to L810 x W510mm 2-beam : (Dual stage) 1-PCB conveyance : L50 x W50mm to L810 x W510mm, 2-PCB conveyance : L50 x W50mm to L380 x W510mm
Power supply 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source 0.45MPa or more, in clean, dry state
External dimension (excluding projections) L1,374 x W1,948 x H1,445mm
Weight 2-beam : Approx. 2,250kg (Main unit only), 1-beam : Approx. 2,150kg (Main unit only)
Enquiry

Panasonic Mounter CM402-L Modular Super High Speed placement machine

,
Model name: CM402-L Substrate size: L50mm×W50mm～L510mm×W460mm Substrate replacement time: 0.9s (when the substrate length is below 240mm and under the best conditions) Power supply*1: three-phase AC200V, 3.5kVA Air pressure source*2: 0.49MPa, 150L/min (A.N.R.) Equipment size: W2350mm×D2690mm×H1430mm*3 Weight*4: 3000kg   High-speed placement head Mounting fastest speed: 0.06s/chip (Type A) Mounting accuracy: ±50μm/chip (Cpk≧1) Component size: 0603 chip~L24mm×W24mm   Multifunctional placement head Mounting fastest speed: 0.21s/QFP (Type B) Mounting accuracy: ±35μm/QFP (Cpk≧1) Component size: 0603 chip~L100mm×W90mm
Enquiry
