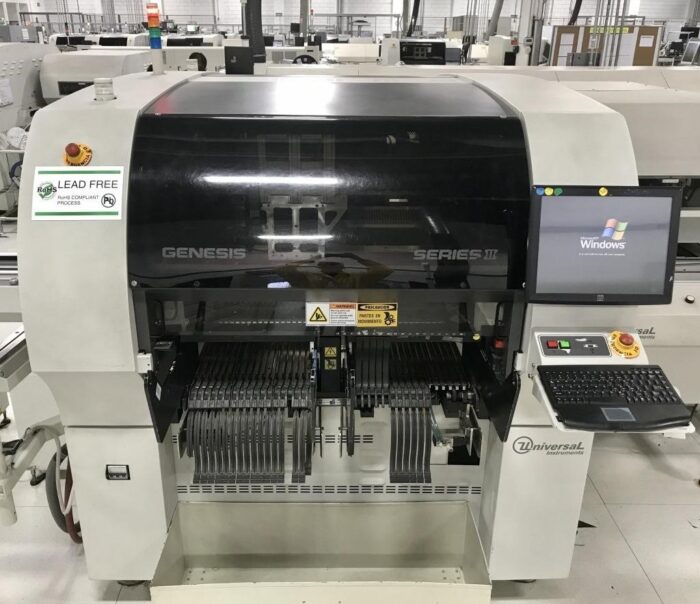

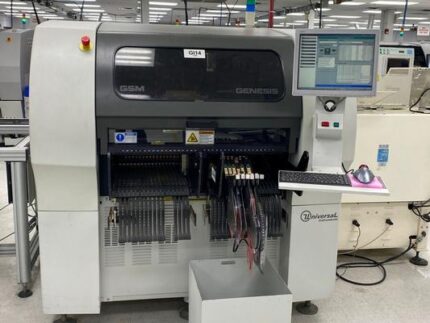

Genesis GX-11S
1、Mixed-head / dual-head configuration
2、Upward-looking camera optics
3、Spec Speed: 0.24 sec (15,300 cph)
4、 Accuracy: +/-45μm @ 1.33 Cpk
5、Range: 1005mm (0402) – 55mm x 55mm SFoV
6、 Max PCB Size: W610mm x L813mm (24″ x 32″)
7、Feeder inputs: 120 – 132 (8mm tape)
8、 Feeder Types: wafer, waffle pak, gel pak, tape, tube,bowl
SMT speed 16500/cph
SMT accuracy ±45/±34 μm@1.33Cpk/1.00Cpk
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
| ∑-G5SⅡ | ||
|---|---|---|
| Applicable PCB | Single lane | L610×W510 mm to L50×W50 mm (Optional: L1,200×W510 to L50×W50 mm) |
| Dual lane | L610×W250 mm to L50×W84mm (dual feed) L610×W415mm (single feed) | |
| Mounting capability | High-Speed Multi-Head×2 specifications: 90,000 CPH (single lane/dual lane) | |
| Mounting accuracy (Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used) | High-Speed Multi (HM) Head | 0201mm/03015mm: ±25μm/80,000 CPH 0402mm: ±36 μm/85,000 CPH 0603mm: ±40 μm/90,000 CPH |
| Flexible Multi (FM) Head | ±15μm | |
| Applicable components | High-Speed Multi (HM) Head | 0201mm to L44×W44×H12.7 mm or under |
| Flexible Multi (FM) Head | 1005mm to L72×W72×H25.4 mm or under Connector: 150×26 mm | |
| Number of component types | 120 types max. (8 mm wide tape equivalent) | |
| Power supply | 3-phase AC200V ±10%, 50/60Hz | |
| Air supply source | 0.45 to 0.69 MPa (4.6 to 7 kgf/cm²) | |
| External dimension (excluding projections) | L 1,280 x W 2,240 x H 1,450mm | |
| Weight | Approx. 1,800 kg | |
| YC8 | ||
|---|---|---|
| Applicable PCB | L50 x W50mm to L330 x W360mm *1 | |
| Mounting accuracy | When using Yamaha's standard components | Absolute accuracy (μ+3σ):+/-0.05mm /QFP Repeatability(3σ) +/-0.03mm /QFP |
| Mounting capability | Indication | 2.5sec/component (Cycle time from a pickup to mounting with recognition) |
| Applicable components | 4 x 4mm to 100 x 100mm *2 (Some components larger than 45 x 45mm ane conditional) Maximum components heights 45mm Maximum payload 1kg | |
| Component supply configuration: Number of component types | Tape reel : MAX. 28 types (8mm width) Tray : MAX. 15 trays Stick | |
| Power supply | 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz | |
| Air supply source | 0.45MPa or more, in clean, dry states | |
| External dimension (excluding projections) | L 880 x W1,440 x H1,445mm (Main unit only) L 880 x W1,755 x H1,500mm (When ATS15 is installed) | |
| Weight | Approx. 1,000kg (Main unit only) ATS15 : Approx. 120kg | |
| Model | YSM20R |
|---|---|
| Applicable PCB | Single lane L810 x W490 to L50 x W50 Dual stage Note: For X-axis 2-beam option only 1PCB conveyance: L810 x W490 to L50 x W50 2PCB conveyance: L380 x W490 to L50 x W50 |
| Head / Applicable components | High-Speed Multi (HM) Head * 0201mm to W55 x L100mm, Height 15mm or less Odd-shaped components (FM: Flexible Multi) head: 03015mm to W55 x L100mm, Height 28mm or less |
| Mounting capability (under optimum conditions as defined by Yamaha Motor) | X axis 2-beam: High-speed multi-purpose (HM: High-speed Multi) head x 2 95,000CPH |
| Mounting accuracy | ±0.035mm (±0.025mm) Cpk≧1.0 (3σ) (under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used) |
| Number of component Types | Fixed plate: Max. 140 types (conversion for 8mm tape feeder) Feeder carriage exchange: Max. 128 types (conversion for 8mm tape feeder) Trays for 30 types (Fixed type: max., when fitted with sATS30) and 10 types (Carriage type: max., when fitted with cATS10) |
| Power supply | 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz |
| Air supply source | 0.45MPa or more, in clean, dry state |
| External dimension (excluding projections) | L 1,374 x W 1,857 x H1,445mm (Main unit only) |
| Weight | Approx. 2,050kg (Main unit only) |
