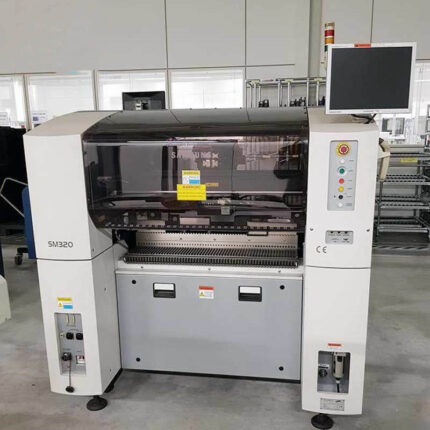

Samsung Mounter SM320 Pick&Place machine

Universal Instruments Genesis mounter GX-37D Pick & Place Machine

Enquiry
Categories: ,
Description

Universal mounter GX-37D

Product description: A real multi-purpose platform, which can be used alone as a general-purpose prototyping platform, a flexible production line balancing platform, or a high-performance multi-functional platform.
* Double cantilever, double drive high arch system
* Patented VRM linear motor technology positioning system
*A 30-axis rotary Lightning placement head and a 7-axis InLine7 placement head
*The placement head is equipped with two cameras (Lightning placement head) and an upward-looking camera (InLine7)
Mounter speed: 48000 CPH
IPC chip speed: 27500 CPH
Circuit board size: 1016*508 (length*width) mm
Component range: Mix0.38*0.18~Max150*150 (mm)
Machine length, width and height: 1600*2248*1930(mm)
Machine weight: 3500KG
