Home Shop SMT placement machine MADE IN CHINA MACHINE Yadis YDS-F1 Automatic High Speed Mounter Pick&Place machine
ETON HT-E8S-1200 single-group magnetic levitation multifunctional high-speed chip mounter Pick&Place machine
Back to products
Yadis YDS-F3 Automatic High Speed Mounter Pick&Place machine

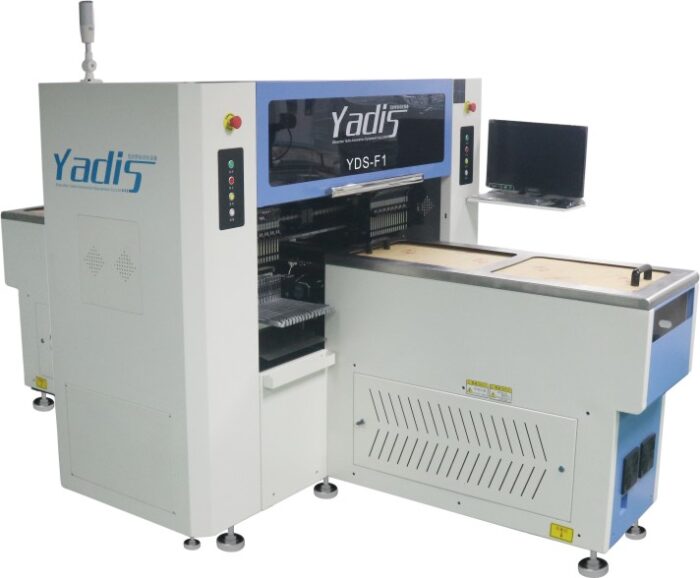

Yadis YDS-F1 Automatic High Speed Mounter Pick&Place machine

Features:
1. It is suitable for mounting models such as 0.5M, 1M, 1.2M, LEDT8/T5 fluorescent lamps, flexible light strips, diffuse reflection, outdoor screens, light heads, etc. The placement heads of this machine are divided into two groups, 17 in each group Suction nozzles, Y1 and Y2 can be attached at the same time or individually.
2. The whole body adopts precision welding, and the beam adopts high-strength cast iron structure, which has good seismic performance.
3. The machine is driven by imported servo motor, with high precision and fast speed.
4. Low maintenance cost, simple operation, operators only need to go through simple training to start production.
5. The machine adopts double electric feeders to feed materials.

Enquiry
Categories: MADE IN CHINA MACHINE, SMT placement machine
Share:
  • Description
  • Shipping & Delivery
Description

Shipping & Delivery
wd-ship-1
wd-ship-2

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

  • Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
  • Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
  • Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

Reviews

There are no reviews yet.

Be the first to review “Yadis YDS-F1 Automatic High Speed Mounter Pick&Place machine” Cancel reply

Your email address will not be published. Required fields are marked *

Related products

Panasonic CM202 placement machine Mounter

SMT placement machine, Panasonic
Main parameters of CM202 placement machine: 2004 equipment PCB size: 460mm×360mm Component range that can be attached: 0201 to 24mmQFPS Material station: 104 Theoretical placement speed: 0.088s/chip 40909 pieces/hour Mounting accuracy: ±0.05mm Dimensions and Weight: 2,350(L) X 1,950(D) X 1,430(H)mm&2,800kg Power supply and air source: 3P/200V±10V/3KVa
Enquiry

Yamaha 3D Hybrid Modular S10/S20 Mounter placement machine

SMT placement machine, Yamaha

Specifications

S10 S20
Board size(with buffer unused) Min. L50 x W30mm to Max. L1,330 x W510mm (Standard L955) Min. L50 x W30mm to Max. L1,830 x W510mm (Standard L1,455)
Board size(with input or output buffer used) Min. L50 x W30mm to Max. L420 x W510mm -
Board size(with input and output buffers used) Min. L50 x W30mm to Max. L330 x W510mm Min. L50 x W30mm to Max. L540 x W510mm
Board thickness 0.4 - 4.8mm 0.4 - 4.8mm
Board flow direction Left to right (Std) Left to right (Std)
Board transfer speed Max 900mm/sec Max 900mm/sec
Placement speed (12 heads + 2 theta) Opt. Cond. 0.08sec/CHIP (45,000CPH) 0.08sec/CHIP (45,000CPH)
Placement accuracy A (μ+3σ) CHIP +/-0.040mm CHIP +/-0.040mm
Placement accuracy B (μ+3σ) IC +/-0.025mm IC +/-0.025mm
Placement angle +/-180 degrees +/-180 degrees
Z axis control / Theta axis control AC servo motor AC servo motor
Component height Max 30mm*1 (Pre-placed components: max 25mm) Max 30mm*1 (Pre-placed components: max 25mm)
Applicable components 0201mm – 120x90mm, BGA, CSP, connector, etc. (Standard 01005 -) 0201mm – 120x90mm, BGA, CSP, connector, etc. (Standard 01005 -)
Component package 8 - 56mm tape (F1/F2 Feeders), 8 - 88mm tape (F3 Electric Feeders), stick, tray 8 - 56mm tape (F1/F2 Feeders), 8 - 88mm tape (F3 Electric Feeders), stick, tray
Drawback check Vacuum check and vision check Vacuum check and vision check
Screen language English, Chinese, Korean, Japanese English, Chinese, Korean, Japanese
Board positioning Board grip unit, front reference, auto conveyor width adjustment Board grip unit, front reference, auto conveyor width adjustment
Component types Max 90 types (8mm tape), 45 lanes x 2 Max 180 types (8mm tape), 45 lanes x 4
Transfer height 900 +/- 20mm 900 +/- 20mm
Machine dimensions, weight L1250xD1750xH1420mm, Approx. 1,200kg L1750xD1750xH1420mm, Approx. 1,500kg
*1 :
Board thickness + Component height = Max 30mm
Specifications and appearance are subject to change without prior notice.
Enquiry

Yamaha Compact High-speed Modular YSM10 Mounter placement machine

SMT placement machine, Yamaha
YSM10
Applicable PCB L 510 x W 460mm - L 50 x W 50mm Note : Available in lengths up to L950mm as an option.
Applicable components 03015mm to W55 x L100mm (For parts sizes larger the width 45mm, recognition of parts is divided into sections.), Height 15mm or less Note : A multi camera (option) is required for part heights exceeding 6.5mm or part sizes exceeding 12mm
Mounting capability HM head (10 nozzle) specification : 46,000CPH (under optimum conditions as defined by Yamaha Motor) HM 5 head (5 nozzle) specification : 31,000CPH (under optimum conditions as defined by Yamaha Motor)
Mounting accuracy (Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used) +/-0.035mm (+/-0.025mm) Cpk 1.0 (3σ)
Number of component types Fixed plate : Max. 96 types (conversion for 8mm tape feeder) Note 1 Tray : 15 types (maximum when equipped with sATS15, JEDEC)
Power supply 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source 0.45MPa or more, in clean, dry state
External dimension L1,254 x W1,440 x H1,445mm
Weight Approx. 1,270kg
Enquiry

Samsuang Hanwha DECAN F2

SMT placement machine, Samsung Hanwha

Specifications

Alignment
Fly Camera, Fix Camera
Spindle & Speed
2 Gantry * 10 Spindles / 80,000 CPH
Accuracy
±40µm Cpk≥1.0 (0402 (01005 inch) chip) /±30µm Cpk≥1.0 (IC, Stage Vision)
Component Range
Fly: 0402 ~ □16 mm / Fix: ~□42 mm (Standard) / ~□55 mm (MFOV) / ~ L75 mm Connector (MFOV)
Dimension
L 1,430 x D 1,740 x H 1,995
Enquiry

SMT placement machine Panasonic/Panasonic BM231 placement machine

SMT placement machine, Panasonic
Panasonic's BM231 modular high-speed multi-function placement machine has any volume, any mix capability by placing various components from 0402 (01005) microchips to BGAs, CSPs and connectors. Maximum productivity is achieved through uninterrupted operation and quick changeovers.
Enquiry

Yamaha High-efficiency Modular Z:LEX YSM20R Mounter placement machine

SMT placement machine, Yamaha

Specifications

Model YSM20R
Applicable PCB Single lane L810 x W490 to L50 x W50 Dual stage  Note: For X-axis 2-beam option only 1PCB conveyance: L810 x W490 to L50 x W50 2PCB conveyance: L380 x W490 to L50 x W50
Head / Applicable components High-Speed Multi (HM) Head * 0201mm to W55 x L100mm, Height 15mm or less Odd-shaped components (FM: Flexible Multi) head: 03015mm to W55 x L100mm, Height 28mm or less
Mounting capability (under optimum conditions as defined by Yamaha Motor) X axis 2-beam: High-speed multi-purpose (HM: High-speed Multi) head x 2 95,000CPH
Mounting accuracy ±0.035mm (±0.025mm) Cpk≧1.0 (3σ) (under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used)
Number of component Types Fixed plate: Max. 140 types (conversion for 8mm tape feeder) Feeder carriage exchange: Max. 128 types (conversion for 8mm tape feeder) Trays for 30 types (Fixed type: max., when fitted with sATS30) and 10 types (Carriage type: max., when fitted with cATS10)
Power supply 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source 0.45MPa or more, in clean, dry state
External dimension (excluding projections) L 1,374 x W 1,857 x H1,445mm (Main unit only)
Weight Approx. 2,050kg (Main unit only)
Enquiry

SMT placement machine ASM Siemens placement machine TX2i/TX2/TX1

SMT placement machine, ASM SIEMENS
Introduction to ASM Siemens Mounter TX2i: ASM Siemens Mounter TX2i: Provide high performance and high precision in a very small footprint. The ASM Siemens Mounter TX2i mounter module sets a new benchmark for mass production. No other placement solution can achieve 25 µm @ 3 sigma accuracy at speeds up to 96,000 cph in such a small footprint (only 1m x 2.3m).
Enquiry

SMT Samsung Mounter SM482 Plus 482

SMT placement machine, Samsung Hanwha

Specifications

Alignment
Fly Camera + Fix Camera (Option)
Spindle & Speed
1 Gantry * 6 Spindle / 30,000 CPH
Accuracy
±40μm@±3σ (Chip) / ±30μm@±3σ(QFP)
Component Range
Fly: 0603 ~ □22mm(0402 ~ □14mm) / Fix: ~□55mm, L75mm Connector
Dimension
L 1,650 x D 1,680 x H 2,090
Enquiry
