Yadis YDS-F200 Double Sucker Rod High Speed Placement Machine Pick&Place machine

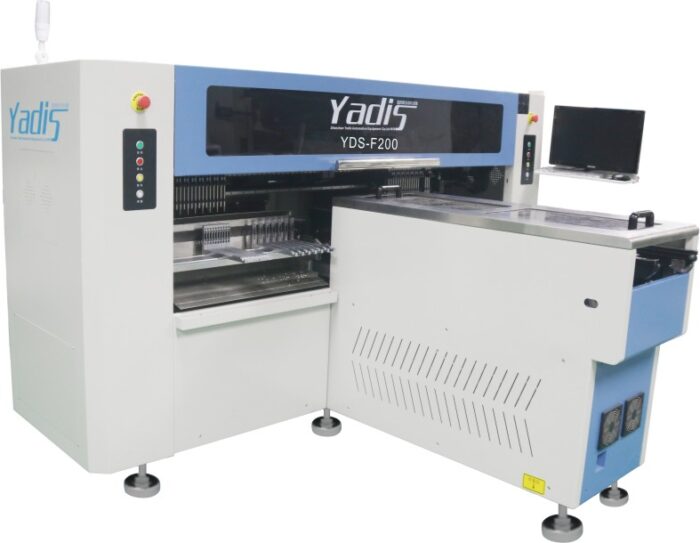

YDS-F200 Double Sucker Rod High Speed Placement Machine
Features:
1. Suitable for mounting models such as 0.5M, 1M, 1.2M, LEDT8, T5 fluorescent lamps, flexible strip lights, diffuse reflection, outdoor screens, strong bald heads, etc. The mounting head of this machine is a double suction rod, double module structure, It can be matched with three-material station or four-material station.
2. The whole body adopts precision welding, and the beam adopts high-strength cast iron structure.
3. The machine adopts imported servo motor drive with high precision and fast speed.
4. Low maintenance cost and simple operation. Operators only need to undergo simple training to go online.
5. The machine adopts double electric feeder for feeding.
Description
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
Panasonic Mounter CM602-L high-speed placement machine
Control mode: microcomputer mode
External memory: Manage data at PT∗4. Each set of data requires about 1MB. (1 type is required for each 1 type 3.5 2HD floppy disk)
Program data: Points Max. 10000 points
CM602 power supply
Power supply for normal use: 3-phase AC 200 V/ 220 V ±10 V, 3-phase AC 380 V/ 400 V/ 420 V/ 480 V ±20 V Frequency: 50/60 Hz
Power supply for HUB ∗ 3: Single-phase AC 100 V ~ AC 240 V Frequency: 50/60 Hz
Rated capacity: main machine 4.0 kVA / HUB power supply ∗ 3: 140 VA
Supply air pressure: 0.49 MPa ~ 0.78 MPa (operating air pressure is 0.49 MPa ~ 0.54 MPa)
Supply air volume: 170 L/min (A.N.R.)
Dimensions: 2350 mm (W) × 2690 mm (D) × 1430 mm (H) (excluding 3-section signal tower and color touch panel)
quality:
Mass of the main engine: 3400 kg (140 kg for the standard configuration without the overall exchange trolley)
Overall exchange trolley mass: 140 kg (per 1)
Direct tray feeder mass: 195 kg (per 1 unit)
Standard composition mass: 3960 kg (1 main engine, 4 overall exchange trolleys)
Environmental conditions: Temperature: 10°C ~ 35°C Humidity: 25% RH ~ 75% RH (but water vapor does not condense)
Transport and storage conditions: Temperature: −20°C ~ 60°C Humidity: Below 75 % RH (but water vapor does not condense)
Altitude: from 0 m above sea level to below 1000 m
Noise: < 70dB (A)
Yamaha Compact High-speed Modular YSM10 Mounter placement machine
| YSM10 | ||
|---|---|---|
| Applicable PCB | L 510 x W 460mm - L 50 x W 50mm Note : Available in lengths up to L950mm as an option. | |
| Applicable components | 03015mm to W55 x L100mm (For parts sizes larger the width 45mm, recognition of parts is divided into sections.), Height 15mm or less Note : A multi camera (option) is required for part heights exceeding 6.5mm or part sizes exceeding 12mm | |
| Mounting capability | HM head (10 nozzle) specification : 46,000CPH (under optimum conditions as defined by Yamaha Motor) HM 5 head (5 nozzle) specification : 31,000CPH (under optimum conditions as defined by Yamaha Motor) | |
| Mounting accuracy (Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used) | +/-0.035mm (+/-0.025mm) Cpk 1.0 (3σ) | |
| Number of component types | Fixed plate : Max. 96 types (conversion for 8mm tape feeder) Note 1 Tray : 15 types (maximum when equipped with sATS15, JEDEC) | |
| Power supply | 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz | |
| Air supply source | 0.45MPa or more, in clean, dry state | |
| External dimension | L1,254 x W1,440 x H1,445mm | |
| Weight | Approx. 1,270kg | |
Yamaha Wide-Range Compact Modular YC8 Mounter placement machine
Specifications
| YC8 | ||
|---|---|---|
| Applicable PCB | L50 x W50mm to L330 x W360mm *1 | |
| Mounting accuracy | When using Yamaha's standard components | Absolute accuracy (μ+3σ):+/-0.05mm /QFP Repeatability(3σ) +/-0.03mm /QFP |
| Mounting capability | Indication | 2.5sec/component (Cycle time from a pickup to mounting with recognition) |
| Applicable components | 4 x 4mm to 100 x 100mm *2 (Some components larger than 45 x 45mm ane conditional) Maximum components heights 45mm Maximum payload 1kg | |
| Component supply configuration: Number of component types | Tape reel : MAX. 28 types (8mm width) Tray : MAX. 15 trays Stick | |
| Power supply | 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz | |
| Air supply source | 0.45MPa or more, in clean, dry states | |
| External dimension (excluding projections) | L 880 x W1,440 x H1,445mm (Main unit only) L 880 x W1,755 x H1,500mm (When ATS15 is installed) | |
| Weight | Approx. 1,000kg (Main unit only) ATS15 : Approx. 120kg | |
- *1
- Please consult us separately for maximum board sizes.
- *2
- Consult us separately regarding component sizes outside the specifications.
- Specifications and appearance are subject to change without prior notice.
Yamaha Premium High-efficiency Modular YRM20 Mounter placement machine
Specifications
| Model | YRM20 | ||
|---|---|---|---|
| Super high-speed rotary RM head | High-speed general-purpose in-line HM head | Odd-shaped components in-line FM (flexible-multi) head | |
| Nozzles (per 1 head unit) | 18 | 10 | 5 |
| Applicable components | 0201mm to W12 x L12mm, Height 6.5mm or less | 0201mm to W55 x L100mm, Height 15mm or less | 03015mm to W55 x L100mm, Height 30mm or less |
| Mounting capability under optimum conditions (in high production mode) | 2-beam : 115,000CPH (under optimum conditions) 1-beam : 57,500CPH (under optimum conditions) | 2-beam : 98,000CPH (under optimum conditions) 1-beam : 49,000CPH (under optimum conditions) | 2-beam : 35,000CPH (under optimum conditions) 1-beam : 17,500CPH (under optimum conditions) |
| Mounting accuracy (high-accuracy mode) | ±0.025mm Cpk≧1.0 (under optimum conditions) | ±0.035mm Cpk≧1.0 (under optimum conditions) | |
| Number of component types | Feeder carriage exchange : Max. 128 types = 32 feeders x 4 (conversion for 8mm tape feeder) Fixed plate : Max. 128 types (conversion for 8mm tape feeder), Trays : 60 types (maximum when equipped with eATS30 x 2) | ||
| PCB dimensions | 1-beam : (Single lane) Standard specifications : L50 x W50mm to L510 x W510mm, option : L50 x W50mm to L810 x W510mm 2-beam : (Dual stage) 1-PCB conveyance : L50 x W50mm to L810 x W510mm, 2-PCB conveyance : L50 x W50mm to L380 x W510mm | ||
| Power supply | 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz | ||
| Air supply source | 0.45MPa or more, in clean, dry state | ||
| External dimension (excluding projections) | L1,374 x W1,948 x H1,445mm | ||
| Weight | 2-beam : Approx. 2,250kg (Main unit only), 1-beam : Approx. 2,150kg (Main unit only) | ||
High-efficiency Modular Z:LEX YSM20WR Mounter placement machine
Specifications
| Model | YSM20WR |
|---|---|
| Applicable PCB | Dual lane Note 1 Same type PCBs: L810 x W356 to L50 x W50 Different type PCBs: up to L810 x W662 Note 2 Same type PCB: L810 x W280 to L50 x W500 Different type PCBs: up to L810 x W510 |
| Head / Applicable components | High-Speed Multi (HM) Head Note 3 0201mm to W55 x L100mm, Height 15mm or less Odd-shaped components (FM: Flexible Multi) head: 03015mm to W55 x L100mm, Height 28mm or less |
| Mounting capability (under optimum conditions as defined by Yamaha Motor) | X axis 2-beam Note 1: High-speed multi-purpose (HM: High-speed Multi) head x 2 81,000CPH |
| Mounting accuracy | ±0.035mm (±0.025mm) Cpk≧1.0 (3σ) (under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used) |
| Number of component Types | Fixed plate: Max. 140 types (conversion for 8mm tape feeder) Feeder carriage exchange: Max. 128 types (conversion for 8mm tape feeder) Trays for 30 types (Fixed type: max., when fitted with sATS30) and 10 types (Carriage type: max., when fitted with cATS10) |
| Power supply | 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz |
| Air supply source | 0.45MPa or more, in clean, dry state |
| External dimension (excluding projections) | L 1,374 x W 2,110 x H1,445mm (Main unit only) |
| Weight | Approx. 2,500kg (Main unit only) |
- Note 1 : When using conveyor separation specifications of 787mm between 1 to 4 lanes
- Note 2 : When using conveyor separation specifications of 630mm between 1 to 4 lanes
- Note 3 : Please contact us for info regarding mounting 0201mm components.
- Specifications and appearance are subject to change without prior notice.
Hanwha High Speed General Mounter DECAN L2
Specifications
- Alignment
- Fly Camera, Fix Camera
- Spindle & Speed
- 2 Gantry * 6 Spindle / 56,000 CPH
- Accuracy
- ±40µm Cpk≥1.0 (0402 (01005 inch) chip) /±30µm Cpk≥1.0 (IC, Stage Vision)
- Component Range
- Fly: 0402 ~ □21 mm / Fix: ~□42 mm (Standard) / ~□55 mm (MFOV) / ~ L75 mm Connector (MFOV)
- Dimension
- L 1,430 x D 1,740 x H 1,995
