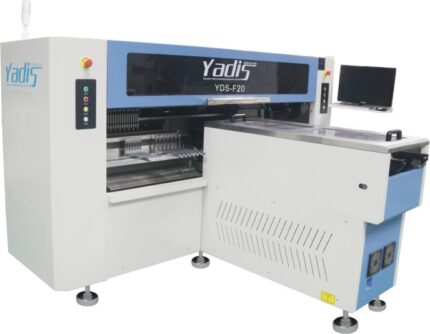

Yadis YDS-F20 High Speed Mounte Pick&Place machine

Yadis YDS-F3 Automatic High Speed Mounter Pick&Place machine

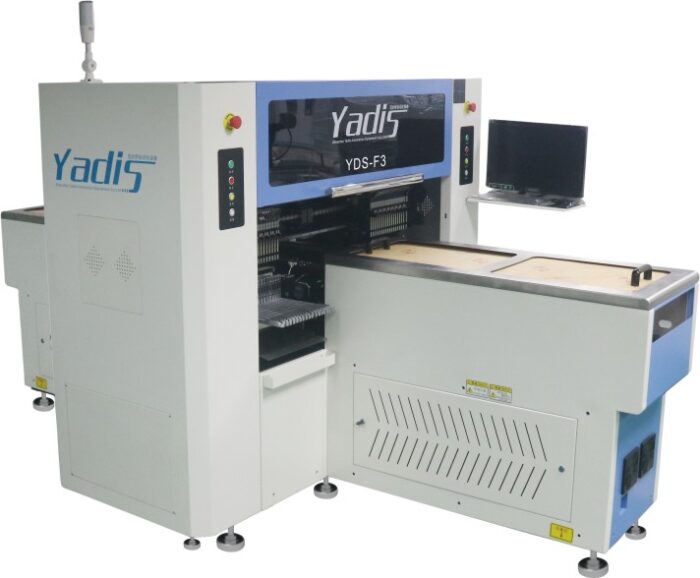

YDS-F3 Automatic High Speed Mounter

Features:

1. Suitable for mounting models such as 0.5M, 1M, 1.2M, LEDT8, T5 fluorescent lamps, flexible light strips, diffuse reflection, outdoor screens, strong bald heads, etc. The machine has three groups of Y1, Y2, and Y3, each group of 17 Two nozzles, Y1, Y2, Y3, can be mounted at the same time or single mounted.

2. The whole body adopts precision welding, and the beam adopts high-strength cast iron structure, which has good seismic performance.

3. The machine adopts imported servo motor drive, with high precision and fast speed.

4. Low maintenance cost and simple operation. Operators can go on-line production only after simple training.

5. The machine adopts double electric feeder for feeding.
