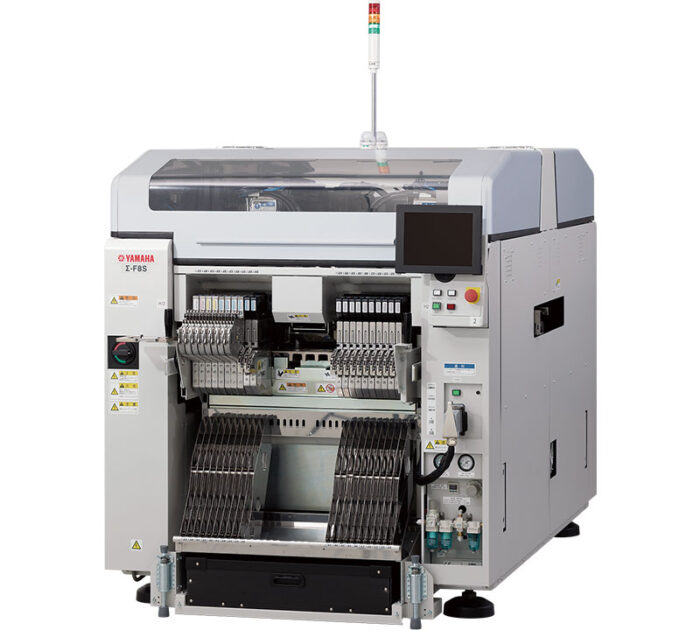

Yamaha Premium Modular Σ-F8S Mounter placement machine

Specifications

	Σ-F8S
Applicable PCB	Single lane : L330 x W250 to L50 x W50mm (Option : L381 x W510 to L50 x W50mm) Dual lane : L330 x W250 to L50 x W50mm
Head/Applicable components	High-speed head : 0201mm CHIP to 4.3 x 3.4mm, Height 2.0mm or less High-speed multi-purpose head : 03015mm CHIP to 33mm square, Height 12.7mm or less
Mounting capability	High-speed head x 4 specs : 150,000CPH (Dual lane) 136,000CPH (Single lane)
Mounting accuracy (Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used)	High-speed head : 0201mm/03015mm : ±25μm (3σ) (140,000CPH) 0402mm/0603mm : ±36μm (3σ) (150,000CPH)
Number of component types	Max.80 types (conversion for 8mm tape feeder)
Power supply	3-Phase AC200V ±10% 50/60Hz
Air supply source	0.45 to 0.69MPa (4.6 to 7kgf/cm2)
External dimension	L 1,280 x W 2,240 x H 1,450mm (excluding projections)
Weight	Approx. 1,940kg

Specifications and appearance are subject to change without prior notice.

Enquiry

Achieves high-speed, high accuracy and high quality mounting

High-speed one-by-one pickup & mounting

Using 15 nozzles per head produces 37,500 CPH which is the top industry production level!
Rotary direct drive head has simple design using no external drive parts such as gears or belts yet gives high-accuracy mounting.

Even on rotary heads, Yamaha gives the 1-head solution!

Head variations & compatible components

The Super Loading Feeder totally innovates components supply tasks!

Auto-loading lowers the burden on the operator so that “anyone, anytime, can easily set” components for feed and supply.
Supports continuous non-stop operation and needs no splicing!
Top tape non-peeling method has no static electrical charges, is dustproof, and the top tape doesn’t have to be recovered later on.

Full range of feeder and supply device options to match your production format

Feeder carriage exchange

ACV (Advanced Component Validation)
LISA (Line Information Support & Administration)）
Application software

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

Click to enlarge

Back to products

	Σ-F8S
Applicable PCB	Single lane : L330 x W250 to L50 x W50mm (Option : L381 x W510 to L50 x W50mm) Dual lane : L330 x W250 to L50 x W50mm
Head/Applicable components	High-speed head : 0201mm CHIP to 4.3 x 3.4mm, Height 2.0mm or less High-speed multi-purpose head : 03015mm CHIP to 33mm square, Height 12.7mm or less
Mounting capability	High-speed head x 4 specs : 150,000CPH (Dual lane) 136,000CPH (Single lane)
Mounting accuracy (Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used)	High-speed head : 0201mm/03015mm : ±25μm (3σ) (140,000CPH) 0402mm/0603mm : ±36μm (3σ) (150,000CPH)
Number of component types	Max.80 types (conversion for 8mm tape feeder)
Power supply	3-Phase AC200V ±10% 50/60Hz
Air supply source	0.45 to 0.69MPa (4.6 to 7kgf/cm2)
External dimension	L 1,280 x W 2,240 x H 1,450mm (excluding projections)
Weight	Approx. 1,940kg
