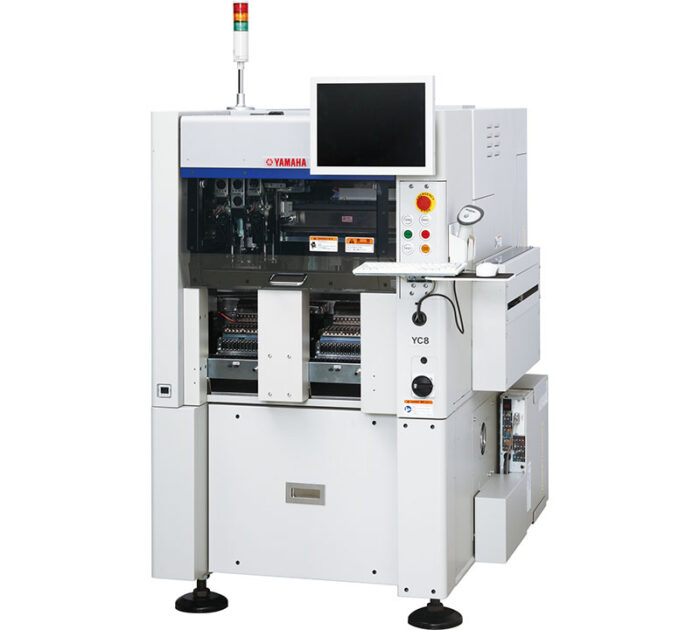

Yamaha Wide-Range Compact Modular YC8 Mounter placement machine

Specifications

YC8
Applicable PCB L50 x W50mm to L330 x W360mm *1
Mounting
accuracy		 When using Yamaha’s
standard components		 Absolute accuracy (μ+3σ):+/-0.05mm /QFP
Repeatability(3σ) +/-0.03mm /QFP
Mounting
capability		 Indication 2.5sec/component (Cycle time from a pickup to mounting with recognition)
Applicable components 4 x 4mm to 100 x 100mm *2
(Some components larger than 45 x 45mm ane conditional)
Maximum components heights 45mm
Maximum payload 1kg
Component supply configuration:
Number of component types		 Tape reel : MAX. 28 types (8mm width)
Tray : MAX. 15 trays
Stick
Power supply 3-Phase AC 200/208/220/240/380/400/416V　+/-10%　50/60Hz
Air supply source 0.45MPa or more, in clean, dry states
External dimension
(excluding projections)		 L 880 x W1,440 x H1,445mm (Main unit only)
L 880 x W1,755 x H1,500mm (When ATS15 is installed)
Weight Approx. 1,000kg (Main unit only)
ATS15 : Approx. 120kg
*1
Please consult us separately for maximum board sizes.
*2
Consult us separately regarding component sizes outside the specifications.
Specifications and appearance are subject to change without prior notice.
Enquiry
Categories: ,
Description

Outstanding mounting capability

Capable heavy components up to 1kg Supports press fitting of components

Maximum components
Size : 100 x 100mm Heights : 45mm

Wide-scale product range

Note
Consult us separately regarding component sizes outside the specifications.

Optional equipment for wide flexibility

Customized nozzles

Supports large and/or odd-shaped components

Automatic nozzle station

Capable of exchanging large 25mm nozzles

Automatic tray supply unit

Supports component height of 45mm
(at 50mm tray pitch)

Capable of handling up to 15 trays
(at 12.5mm tray pitch)

Electric-drive intelligent tape feeders with built-in microcomputer

ZS Feeder

SS Feeder

Power supply station for external setups

Reel holder

Supports for the offline operation

[Y.FacT]’s Setup Navigation Package

[Y.FacT]’s Setup Navigation Package

Program data creation / conversion / optimization

Components remainder centralized monitor

Production lot / product ID record management
