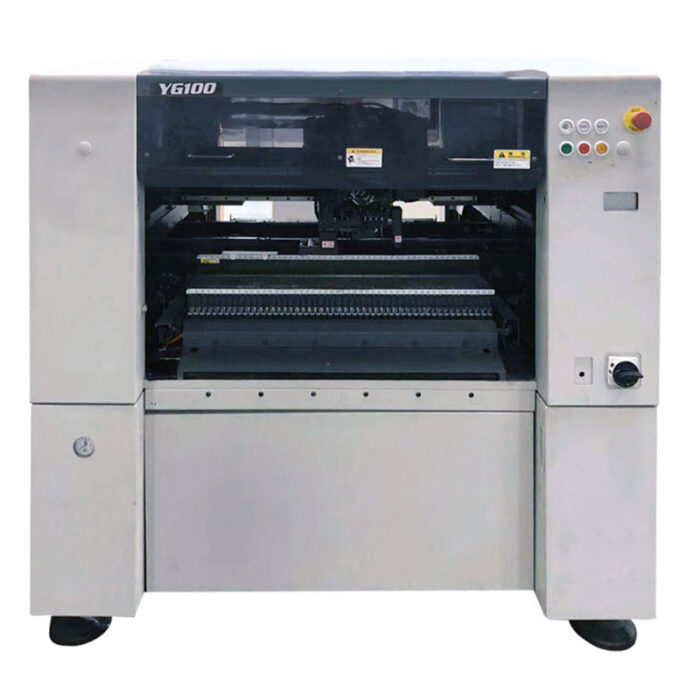

Features: YAMAHA YG100 high-speed placement machine The high-speed placement machine is a general-purpose version of YAMAHA’s high-speed placement machine. It has the ability to mount chip components at high speed, and can use tape, tube, and bulk components, as well as special-shaped ICs. Component placement capabilities.
Specifications: 0402mm (inch 01005inch) ~□W45mmxL100mm, components.
Corresponding: PCB size is L50 × W50mm – L510 × W440mm
Best condition placement speed: 24,000CPH
Mounting accuracy:: absolute accuracy ±0.05mm/CHIP; repeat accuracy ±0.03mm/CHIP
The main machine has 60 (option up to 120) belt feeding positions (measured by 8mm)
Main unit size: L1,650 ×W1,562 ×H1,470mm
(Saving space and energy to achieve environmental protection)
YAMAHA YG100 high-speed placement machine
