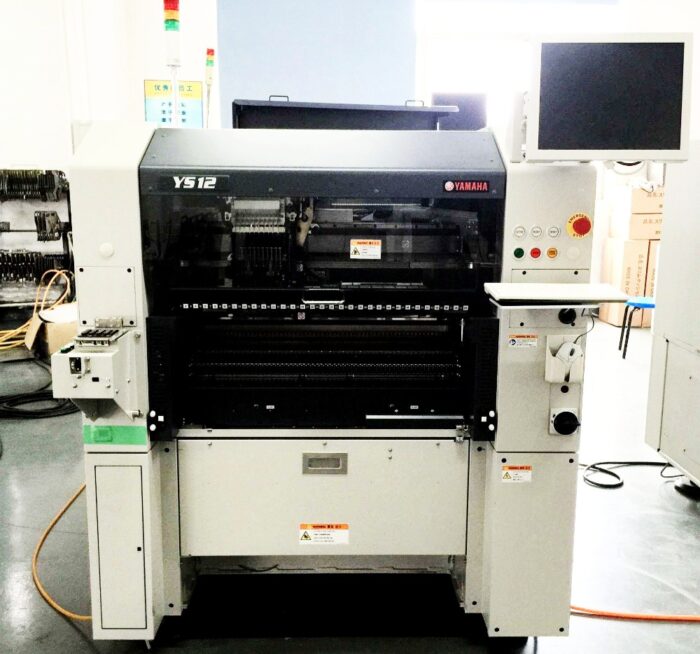

Yamaha YS12 small high-speed module placement machine

· Features:
· The width of the small platform is 1,254mm, and the production line can be freely arranged in the factory
· The new 10-connected placement head and the new identification system have achieved a placement capacity of 36,000CPH (equivalent to 0.1 seconds/CHIP: the best condition). The maximum number of feeders is 120. Compatible with L-size boards (L510×W460mm). Corresponding to the main body built-in belt cutter option.

· Basic parameters:
· Model: YS12
· Target substrate: L50×W50mm ～L510×W460mm
・Applicable components: 0402 (mm series name) to □32*mm components *1 *Supported from January 2010
Mounting accuracy (standard components of our company): absolute accuracy (μ+3σ): ±0.05mm/CHIP
· Repeatability (3σ): ±0.03mm/CHIP
Mounting efficiency (best condition): 36,000CPH (0.1 second/CHIP equivalent)
Component types: 120 types (maximum, converted to 8mm tape)
· Power specification: three-phase AC 200/208/220/240/380/400/416 V ±10% 50/60 Hz
· Air supply source: above 0.45MPa, clean and dry
· Dimensions※2: L1,254×W1,440×H1,450mm (top of the cover)
· L1,464 (extended conveyor belt end)×W1,542 (full batch replacement trolley guide rail end)×H1,450mm (top of cover plate)
· Main body weight: about 1,340kg
