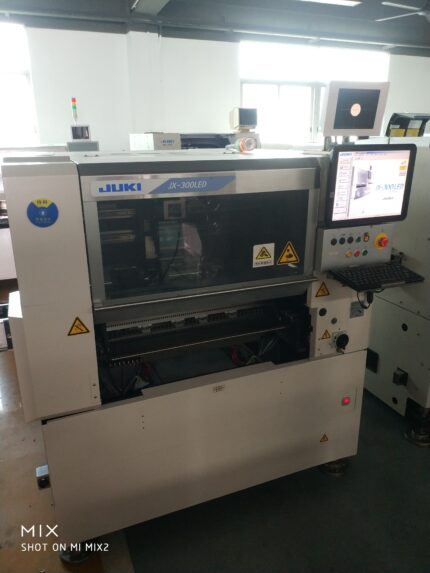

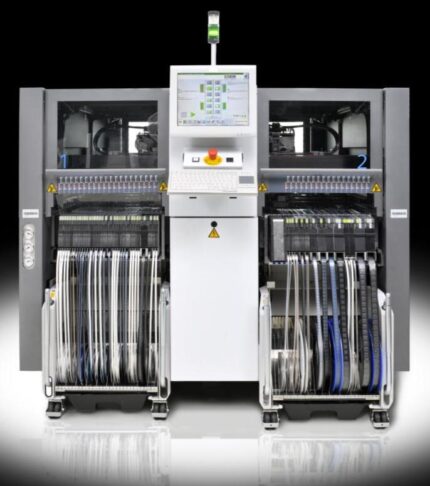

Maximum output per hour: 165k
IPC 9850 output per hour: 121k
Placement accuracy (3s): 40 micron
Minimum component range: 0.4 x 0.2mm (01005)
Maximum component range: 45 x 45mm (1.77 x 1.77″)
Maximum component height: 10.5mm (0.41″)
Programmable placement force: 1.5 to 8N
Maximum board size (L x W)
Standard: 515 x 390mm (20.28 x 15.35″)
Optional: 800 x 457mm (31.5 x 18″)
Minimum board size (L x W)
Standard: 50 x 50mm (2 x 2″)
Optional: 50 x 25mm (2 x 1″)
Board thickness:
Standard: 0.3 to 6mm (0.01 to 0.24″)
Optional: 10mm (0.4″)
Automatic tool bit exchange: Nozzles
Tape feeding positions (8mm): 260 twin tapes,130 single tapes
Feeder options: tape, bulk, stick, tray, re-use, bare die
Footprint (L x W) including Front side feeder trolleys: 3720 x 1705mm (146.46 x 67.13″)
Standard software features: Artwork recognition, Multi-level bad-mark reading, Adaptive pick,
Alternative feeder function, Online help and manuals, Management
information system, Online program editors, Placement force control
Description
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products

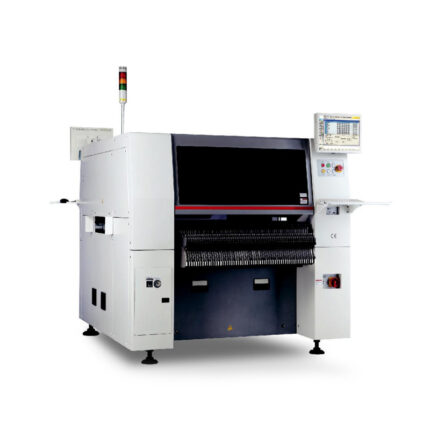

Samsuang Hanwha DECAN F2
Specifications
- Alignment
- Fly Camera, Fix Camera
- Spindle & Speed
- 2 Gantry * 10 Spindles / 80,000 CPH
- Accuracy
- ±40µm Cpk≥1.0 (0402 (01005 inch) chip) /±30µm Cpk≥1.0 (IC, Stage Vision)
- Component Range
- Fly: 0402 ~ □16 mm / Fix: ~□42 mm (Standard) / ~□55 mm (MFOV) / ~ L75 mm Connector (MFOV)
- Dimension
- L 1,430 x D 1,740 x H 1,995
Yamaha Premium Modular Σ-F8S Mounter placement machine
Specifications
| Σ-F8S | |
|---|---|
| Applicable PCB | Single lane : L330 x W250 to L50 x W50mm (Option : L381 x W510 to L50 x W50mm) Dual lane : L330 x W250 to L50 x W50mm |
| Head/Applicable components | High-speed head : 0201mm CHIP to 4.3 x 3.4mm, Height 2.0mm or less High-speed multi-purpose head : 03015mm CHIP to 33mm square, Height 12.7mm or less |
| Mounting capability | High-speed head x 4 specs : 150,000CPH (Dual lane) 136,000CPH (Single lane) |
| Mounting accuracy (Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used) | High-speed head : 0201mm/03015mm : ±25μm (3σ) (140,000CPH) 0402mm/0603mm : ±36μm (3σ) (150,000CPH) |
| Number of component types | Max.80 types (conversion for 8mm tape feeder) |
| Power supply | 3-Phase AC200V ±10% 50/60Hz |
| Air supply source | 0.45 to 0.69MPa (4.6 to 7kgf/cm2) |
| External dimension | L 1,280 x W 2,240 x H 1,450mm (excluding projections) |
| Weight | Approx. 1,940kg |
- Specifications and appearance are subject to change without prior notice.
Yamaha High-efficiency Modular Z:LEX YSM20R Mounter placement machine
Specifications
| Model | YSM20R |
|---|---|
| Applicable PCB | Single lane L810 x W490 to L50 x W50 Dual stage Note: For X-axis 2-beam option only 1PCB conveyance: L810 x W490 to L50 x W50 2PCB conveyance: L380 x W490 to L50 x W50 |
| Head / Applicable components | High-Speed Multi (HM) Head * 0201mm to W55 x L100mm, Height 15mm or less Odd-shaped components (FM: Flexible Multi) head: 03015mm to W55 x L100mm, Height 28mm or less |
| Mounting capability (under optimum conditions as defined by Yamaha Motor) | X axis 2-beam: High-speed multi-purpose (HM: High-speed Multi) head x 2 95,000CPH |
| Mounting accuracy | ±0.035mm (±0.025mm) Cpk≧1.0 (3σ) (under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used) |
| Number of component Types | Fixed plate: Max. 140 types (conversion for 8mm tape feeder) Feeder carriage exchange: Max. 128 types (conversion for 8mm tape feeder) Trays for 30 types (Fixed type: max., when fitted with sATS30) and 10 types (Carriage type: max., when fitted with cATS10) |
| Power supply | 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz |
| Air supply source | 0.45MPa or more, in clean, dry state |
| External dimension (excluding projections) | L 1,374 x W 1,857 x H1,445mm (Main unit only) |
| Weight | Approx. 2,050kg (Main unit only) |
Yamaha Premium High-efficiency Modular YRM20 Mounter placement machine
Specifications
| Model | YRM20 | ||
|---|---|---|---|
| Super high-speed rotary RM head | High-speed general-purpose in-line HM head | Odd-shaped components in-line FM (flexible-multi) head | |
| Nozzles (per 1 head unit) | 18 | 10 | 5 |
| Applicable components | 0201mm to W12 x L12mm, Height 6.5mm or less | 0201mm to W55 x L100mm, Height 15mm or less | 03015mm to W55 x L100mm, Height 30mm or less |
| Mounting capability under optimum conditions (in high production mode) | 2-beam : 115,000CPH (under optimum conditions) 1-beam : 57,500CPH (under optimum conditions) | 2-beam : 98,000CPH (under optimum conditions) 1-beam : 49,000CPH (under optimum conditions) | 2-beam : 35,000CPH (under optimum conditions) 1-beam : 17,500CPH (under optimum conditions) |
| Mounting accuracy (high-accuracy mode) | ±0.025mm Cpk≧1.0 (under optimum conditions) | ±0.035mm Cpk≧1.0 (under optimum conditions) | |
| Number of component types | Feeder carriage exchange : Max. 128 types = 32 feeders x 4 (conversion for 8mm tape feeder) Fixed plate : Max. 128 types (conversion for 8mm tape feeder), Trays : 60 types (maximum when equipped with eATS30 x 2) | ||
| PCB dimensions | 1-beam : (Single lane) Standard specifications : L50 x W50mm to L510 x W510mm, option : L50 x W50mm to L810 x W510mm 2-beam : (Dual stage) 1-PCB conveyance : L50 x W50mm to L810 x W510mm, 2-PCB conveyance : L50 x W50mm to L380 x W510mm | ||
| Power supply | 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz | ||
| Air supply source | 0.45MPa or more, in clean, dry state | ||
| External dimension (excluding projections) | L1,374 x W1,948 x H1,445mm | ||
| Weight | 2-beam : Approx. 2,250kg (Main unit only), 1-beam : Approx. 2,150kg (Main unit only) | ||
Yamaha 3D Hybrid Modular S10/S20 Mounter placement machine
Specifications
| S10 | S20 | |
|---|---|---|
| Board size(with buffer unused) | Min. L50 x W30mm to Max. L1,330 x W510mm (Standard L955) | Min. L50 x W30mm to Max. L1,830 x W510mm (Standard L1,455) |
| Board size(with input or output buffer used) | Min. L50 x W30mm to Max. L420 x W510mm | - |
| Board size(with input and output buffers used) | Min. L50 x W30mm to Max. L330 x W510mm | Min. L50 x W30mm to Max. L540 x W510mm |
| Board thickness | 0.4 - 4.8mm | 0.4 - 4.8mm |
| Board flow direction | Left to right (Std) | Left to right (Std) |
| Board transfer speed | Max 900mm/sec | Max 900mm/sec |
| Placement speed (12 heads + 2 theta) Opt. Cond. | 0.08sec/CHIP (45,000CPH) | 0.08sec/CHIP (45,000CPH) |
| Placement accuracy A (μ+3σ) | CHIP +/-0.040mm | CHIP +/-0.040mm |
| Placement accuracy B (μ+3σ) | IC +/-0.025mm | IC +/-0.025mm |
| Placement angle | +/-180 degrees | +/-180 degrees |
| Z axis control / Theta axis control | AC servo motor | AC servo motor |
| Component height | Max 30mm*1 (Pre-placed components: max 25mm) | Max 30mm*1 (Pre-placed components: max 25mm) |
| Applicable components | 0201mm – 120x90mm, BGA, CSP, connector, etc. (Standard 01005 -) | 0201mm – 120x90mm, BGA, CSP, connector, etc. (Standard 01005 -) |
| Component package | 8 - 56mm tape (F1/F2 Feeders), 8 - 88mm tape (F3 Electric Feeders), stick, tray | 8 - 56mm tape (F1/F2 Feeders), 8 - 88mm tape (F3 Electric Feeders), stick, tray |
| Drawback check | Vacuum check and vision check | Vacuum check and vision check |
| Screen language | English, Chinese, Korean, Japanese | English, Chinese, Korean, Japanese |
| Board positioning | Board grip unit, front reference, auto conveyor width adjustment | Board grip unit, front reference, auto conveyor width adjustment |
| Component types | Max 90 types (8mm tape), 45 lanes x 2 | Max 180 types (8mm tape), 45 lanes x 4 |
| Transfer height | 900 +/- 20mm | 900 +/- 20mm |
| Machine dimensions, weight | L1250xD1750xH1420mm, Approx. 1,200kg | L1750xD1750xH1420mm, Approx. 1,500kg |
- *1 :
- Board thickness + Component height = Max 30mm
- Specifications and appearance are subject to change without prior notice.
Yamaha Wide-Range Compact Modular YC8 Mounter placement machine
Specifications
| YC8 | ||
|---|---|---|
| Applicable PCB | L50 x W50mm to L330 x W360mm *1 | |
| Mounting accuracy | When using Yamaha's standard components | Absolute accuracy (μ+3σ):+/-0.05mm /QFP Repeatability(3σ) +/-0.03mm /QFP |
| Mounting capability | Indication | 2.5sec/component (Cycle time from a pickup to mounting with recognition) |
| Applicable components | 4 x 4mm to 100 x 100mm *2 (Some components larger than 45 x 45mm ane conditional) Maximum components heights 45mm Maximum payload 1kg | |
| Component supply configuration: Number of component types | Tape reel : MAX. 28 types (8mm width) Tray : MAX. 15 trays Stick | |
| Power supply | 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz | |
| Air supply source | 0.45MPa or more, in clean, dry states | |
| External dimension (excluding projections) | L 880 x W1,440 x H1,445mm (Main unit only) L 880 x W1,755 x H1,500mm (When ATS15 is installed) | |
| Weight | Approx. 1,000kg (Main unit only) ATS15 : Approx. 120kg | |
- *1
- Please consult us separately for maximum board sizes.
- *2
- Consult us separately regarding component sizes outside the specifications.
- Specifications and appearance are subject to change without prior notice.
Hanwha High Speed General Mounter DECAN L2
Specifications
- Alignment
- Fly Camera, Fix Camera
- Spindle & Speed
- 2 Gantry * 6 Spindle / 56,000 CPH
- Accuracy
- ±40µm Cpk≥1.0 (0402 (01005 inch) chip) /±30µm Cpk≥1.0 (IC, Stage Vision)
- Component Range
- Fly: 0402 ~ □21 mm / Fix: ~□42 mm (Standard) / ~□55 mm (MFOV) / ~ L75 mm Connector (MFOV)
- Dimension
- L 1,430 x D 1,740 x H 1,995
