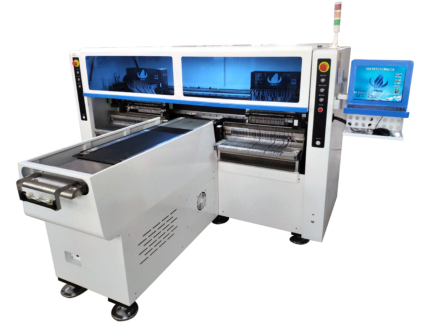

ETON T9 wireless magnetic levitation ultra-high speed placement machine Pick&Place machine
Back to products

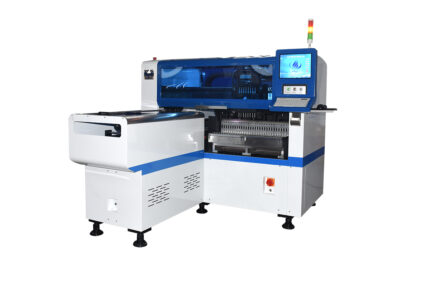

ETON HT-E8S-1200 single-group magnetic levitation multifunctional high-speed chip mounter Pick&Place machine

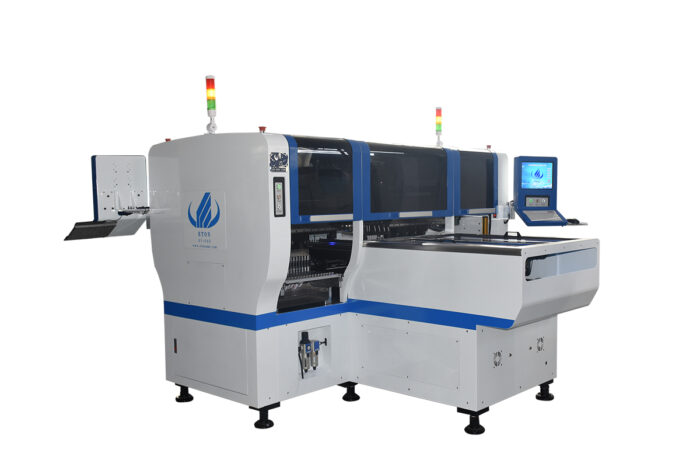

ETON HT-E8D-1200 dual-module multi-function placement machine Pick&Place machine

HT-E8D dual-module magnetic levitation multi-function high-speed placement machine dual system, dual-module multi-functional placement machine, can produce two different product placement parts at the same time: with mounted lamp beads, lenses, capacitors, resistors, ICs and All kinds of special-shaped components, such as the smallest placement of 0402 components, the highest placement of 36mm, perfect placement of various drives, power supplies, circuit boards, lenses, linear bulbs, home appliance control boards and other products.

Enquiry
Categories: ,
Description

Technical parameters of HT-E8D-1200 dual-module multi-function placement machine

Dimensions

long

3118mm

Width

2232mm

high

1624mm

gross weight

2000Kg

circuit board

PCB size

Maximum: 1200*300mm Minimum: 100*100mm

PCB board thickness

Thickness: 0.5 to 5mm

PCB board fixing method

Adjustable pressure pneumatic

Chip method

Group pick group place

operating system

system

Windows 7

software

Independent research and development

monitor

touch screen monitor

input device

keyboard, mouse

visual system

Identify the number of cameras

2 sets of imported cameras (optional)

Flight recognition visual centering, MARK correction

Repeatability

±0.02mm

Component height

<18mm (automatic conversion)

place speed

80000CPH

Mounting parts range

lamp beads, capacitors, resistors, IC special-shaped components, etc. (maximum: 17mm minimum: 0402)

Component span

0.2mm

using electric

380AC 50Hz

power supply

8KW

use environment

23℃±3℃

Rail drive

Maximum length: 1200mm

transfer speed

＞500mm/sec

Transmission direction

two-way

transmission method

automatic online

air pressure

＞5.0Kg/CM²

electrical control

ETON independent research and development

XYZ axis drive mode

High-end magnetic levitation motor + servo motor

feeding system

The number of feeders that can be placed

Dual Module 40 PCS

Number of nozzles

Dual Module 16 PCS

Feeder type

Dual motor electronic feeder

Shipping & Delivery

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

  • Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
  • Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
  • Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

Reviews

There are no reviews yet.

Be the first to review “ETON HT-E8D-1200 dual-module multi-function placement machine Pick&Place machine”

Your email address will not be published. Required fields are marked *

Related products

SMT placement machine Panasonic/Panasonic BM231 placement machine

,
Panasonic's BM231 modular high-speed multi-function placement machine has any volume, any mix capability by placing various components from 0402 (01005) microchips to BGAs, CSPs and connectors. Maximum productivity is achieved through uninterrupted operation and quick changeovers.
Enquiry

Yamaha Premium Modular Σ-F8S Mounter placement machine

,

Specifications

Σ-F8S
Applicable PCB Single lane : L330 x W250 to L50 x W50mm (Option : L381 x W510 to L50 x W50mm) Dual lane : L330 x W250 to L50 x W50mm
Head/Applicable components High-speed head : 0201mm CHIP to 4.3 x 3.4mm, Height 2.0mm or less High-speed multi-purpose head : 03015mm CHIP to 33mm square, Height 12.7mm or less
Mounting capability High-speed head x 4 specs : 150,000CPH (Dual lane) 136,000CPH (Single lane)
Mounting accuracy (Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used) High-speed head : 0201mm/03015mm : ±25μm (3σ) (140,000CPH) 0402mm/0603mm : ±36μm (3σ) (150,000CPH)
Number of component types Max.80 types (conversion for 8mm tape feeder)
Power supply 3-Phase AC200V ±10% 50/60Hz
Air supply source 0.45 to 0.69MPa (4.6 to 7kgf/cm2)
External dimension L 1,280 x W 2,240 x H 1,450mm (excluding projections)
Weight Approx. 1,940kg
Specifications and appearance are subject to change without prior notice.
Enquiry

SMT placement machine ASM Siemens placement machine TX2i/TX2/TX1

,
Introduction to ASM Siemens Mounter TX2i: ASM Siemens Mounter TX2i: Provide high performance and high precision in a very small footprint. The ASM Siemens Mounter TX2i mounter module sets a new benchmark for mass production. No other placement solution can achieve 25 µm @ 3 sigma accuracy at speeds up to 96,000 cph in such a small footprint (only 1m x 2.3m).
Enquiry

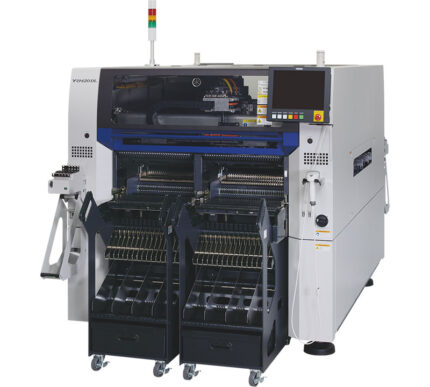

Yamaha Premium High-efficiency Modular YRM20 Mounter placement machine

,

Specifications

Model YRM20
Super high-speed rotary RM head High-speed general-purpose in-line HM head Odd-shaped components in-line FM (flexible-multi) head
Nozzles (per 1 head unit) 18 10 5
Applicable components 0201mm to W12 x L12mm, Height 6.5mm or less 0201mm to W55 x L100mm, Height 15mm or less 03015mm to W55 x L100mm, Height 30mm or less
Mounting capability under optimum conditions (in high production mode) 2-beam : 115,000CPH (under optimum conditions) 1-beam : 57,500CPH (under optimum conditions) 2-beam : 98,000CPH (under optimum conditions) 1-beam : 49,000CPH (under optimum conditions) 2-beam : 35,000CPH (under optimum conditions) 1-beam : 17,500CPH (under optimum conditions)
Mounting accuracy (high-accuracy mode) ±0.025mm Cpk≧1.0 (under optimum conditions) ±0.035mm Cpk≧1.0 (under optimum conditions)
Number of component types Feeder carriage exchange : Max. 128 types = 32 feeders x 4 (conversion for 8mm tape feeder) Fixed plate : Max. 128 types (conversion for 8mm tape feeder), Trays : 60 types (maximum when equipped with eATS30 x 2)
PCB dimensions 1-beam : (Single lane) Standard specifications : L50 x W50mm to L510 x W510mm, option : L50 x W50mm to L810 x W510mm 2-beam : (Dual stage) 1-PCB conveyance : L50 x W50mm to L810 x W510mm, 2-PCB conveyance : L50 x W50mm to L380 x W510mm
Power supply 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source 0.45MPa or more, in clean, dry state
External dimension (excluding projections) L1,374 x W1,948 x H1,445mm
Weight 2-beam : Approx. 2,250kg (Main unit only), 1-beam : Approx. 2,150kg (Main unit only)
Enquiry

SMT placement machine Siemens ASM SIPLACE HS50 high-speed placement machine

,
1. The size of the parts that can be attached: from 0201 (0.25mmx0.5mm) to 18.7mmx18.7mm. 2. The types of parts that can be loaded at one time: 144 types (8mm parts). 3. SMT speed: 50,000 parts/hour. 4. Chip accuracy: ±0.075 (at 4sigma). 5. Material station: 144
Enquiry

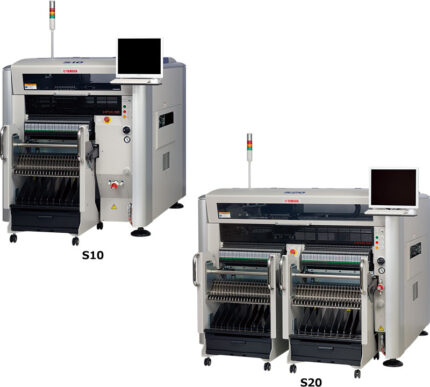

Yamaha 3D Hybrid Modular S10/S20 Mounter placement machine

,
