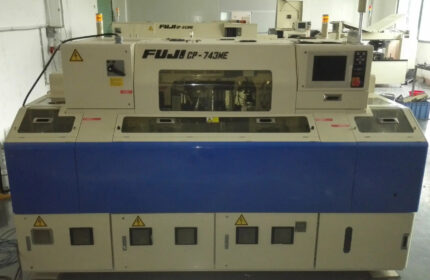

FUJI CP743ME mounter placement pick and palce machine
Back to products
Fuji AIMAX-II Multifunctional Mounter pick and palce placement Machine

FUJI XP143E mounter placement pick and palce machine

Enquiry
Categories: ,
Description

XP143E placement machine
1. SMT range: 0402(in 01005)-25x20mm, parts below 6mm in height can be attached to BGA (optional)
2. SMT speed: 0.165s/chip, 21800chips/h, automatic nozzle replacement function (optional)
3. SMT accuracy: ±0.05mm
4. Applicable substrate: up to 457x356mm, up to 50x50mm, thickness 0.3-4mm
5. Rack support: front and rear feeding, 100 stations in total, trolley refueling method, single-seat tray supplier (optional)
6. Machine size: L1500mm, W1300mm, H1408mm (excluding signal towers)
7. Machine weight: 1.8t
8. Language support: Chinese, English, Japanese
9. Program editing: support both online programming and offline programming
