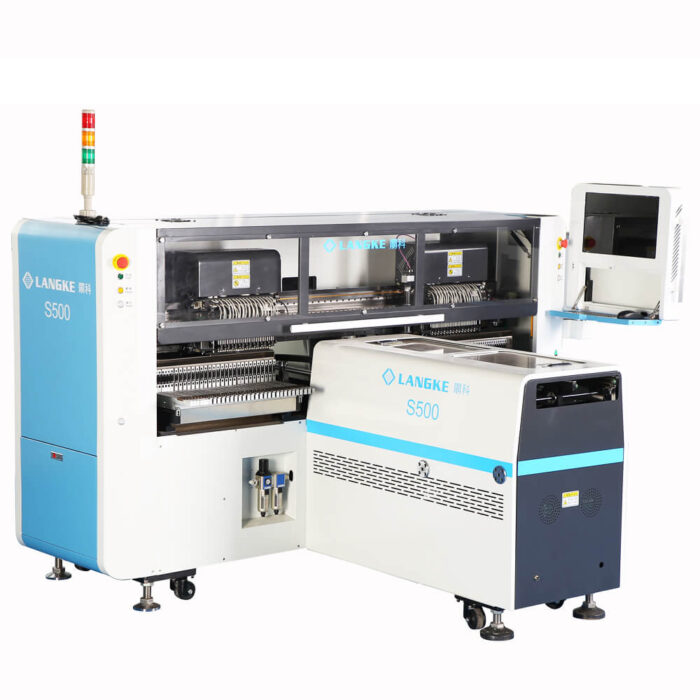

| 朤科S500有导线灯带贴片机 | |
| 型号/Model | S500 |
| 外观/Appearance | |
| PCB | |
| PCB尺寸/PCB Size | 最大：1200*320mm, 最小：90*90mm Max: 1200*320mm, Min: 90*90mm |
| PCB厚度/PCB thickness | 0.5-5mm |
| PCB 定位/PCB Positioning | CCD视觉，Mark点定位 CCD visual, Mark point positioning |
| PCB传送速度/PCB Transmitting Speed | 320mm/s |
| PCB传送方向/
PCB Transmitting Direction |
前→后 Front to Back |
| 贴装/Mounting | |
| 贴装头驱动/Mounting Head Driver | 磁悬浮直线电机 Maglev linear motor |
| 贴装头数量/Mounting Head Amount | 2头 2Heads |
| 吸嘴数量/Nozzles Amount | 每头32个，共计64个 32 Pcs per head, totally 64Pcs |
| 贴装精度/Mounting Accuracy | ±0.03mm |
| 贴片速度/Mounting Speed | 250000 – 270000 CPH |
| 重复精度/Repeat Accuracy | ±0.01mm |
| 最小贴片间距/Min Mounting Gap | 6.5mm |
| 贴片元件范围/Components Range | 0805,1206,2835,3014,3528,5050,5630,5730,RGB等LED带装料; 0805,1206,2835,3014,3528,5050,5630,5730, RGB and other LED stripped material. |
| 贴片元件高度/Component Height | 10mm |
| 飞达数量/Feeder Amount | 48/64 Pcs |
| 飞达种类/Feeder Type | 双马达电动飞达 Dual motor electric feeder |
| 贴装模式/Mounting Type | 群取群贴 Group picking and group placing |
| 进出板方式/PCB Input/Output Method | 皮带传送 belt transfer |
| 导轨尺寸 Rail size | 1300*330mm |
| 系统/System | |
| 电脑系统/Computer System | Windows |
| 操作软件/Operating Software | 朤科独立开发 Independent R&D by Langke |
| 视觉系统/Visual System | 5套光学相机(可选装视觉飞拍，漏料报警)
5 sets of optical camera（option: visual inspection for missing component alarm） |
| 运动控制模块/Motion Control Module | 固高/高川运动控制卡 Googol/Gaochuan Motion control card |
| X、Y轴驱动 | 日本富士电机 Japanese Fuji Servo Motor |
| 工作要求/Working Requirement | |
| 电源/Power | 交流50HZ，三相380V±10%; 380V AC/50Hz/3 Phase |
| 最大耗电量/Max Power | 5.0 KW |
| 气压/Air Pressure | 0.5-0.8Mpa |
| 工作环境温度/Temperature | 23℃±3 |
| 外形/Dimension | |
| 外形尺寸/Dimension | 2580*2500*1550mm |
| 重量/Weight | 2197KG |
